JLG T500J Towable Lift Electric 50' Platform



Specs (Specifications may change due to continuous product development)

JLG T500J Series Specifications
Platform Height 50 ft. (15.2 m)
Horizontal Outreach
        Working Outreach 31 ft. 6 in. (9.6 m)
        Centerline to Platform Edge 30 ft. (9.14 m)
        From Outrigger Pad Edge 23 ft. 5 in. (7.14 m)
Up and Over Height 18 ft. (5.49 m)
Swing 410° Non-Continuous
Platform Capacity 500 lb. (227 kg)
Platform Capacity w/ Rotator 440 lb. (200 kg)
Material Hook Capacoty 500 lb. (227 kg)
Platform Rotator (Optional) 90° Manual
Jib Length 4 ft. (1.22m)
Jib Vertical Motion 130° (+75, -55)

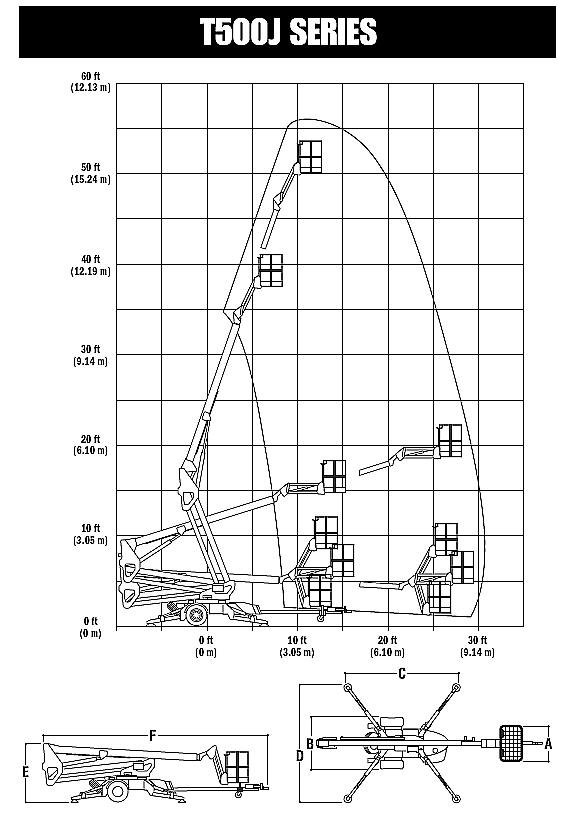

(A.)      Platform Size 30 x 48 in. (0.76 x 1.22 m)
(B.)      Overall Width 5 ft. 7 in. (1.7 m)
(C.)      Outrigger Footprint - Length 13 ft. (3.96 m)
(D.)      Outriger Footprint - Width 13 ft. (3.96 m)
(E.)      Stowed Height 6 ft. 6 in. (1.98 m)
(F.)      Stowed Length 26 ft. 10 in. (8.17 m)
Entry Height - Extended 15 in. (38 cm)
Levelling Capacity 11°
Gross Vehicle Weight 4,800 lbs (2,177 kg)
Towing Speed Rating 65 mph (105 kmph)
Tongue Weight 350 lb. (159 kg)
Brakes Hydraulic Surge
Parking Brakes Standard
Tire Size / Type 225/75 R15 Pneumatic
DC Power 24V DC
Batteries 4 x 6V - 220 amp-hr.
Gasoline Engine (Optional) Honda GSX 270-9 hp.
