Bil-Jax Lift, 51' Electric Towable, 2 man (Bil-Jax 4527A)

Bil-Jax Lift, 51' Electric Towable, 2 man (Bil-Jax 4527A)

Specs (Specifications may change due to continuous product development)

Product Specifications - Bil-Jax 4527A Articulating Boom Lift

	US	Metric

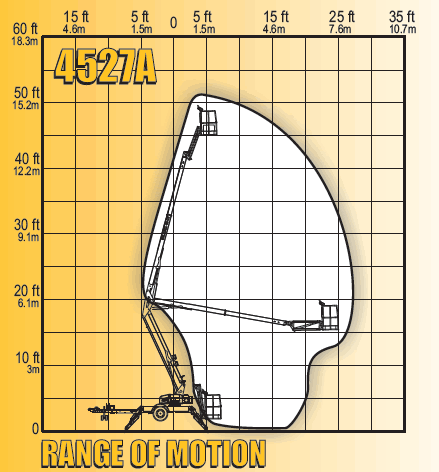

Working height¹	51 ft.	15.7 m
Maximum platform height²	45 ft.	13. 7 m
Horizontal outreach Maximum (from centerline) Maximum (from edge of footpad)	27 ft. 21 ft.	8.2 m 6.4 m
Up and over height	20 ft. 9 in.	6.3 m
Turntable rotation	700° non-continuous
Load capacity	500 lbs.	227 kg

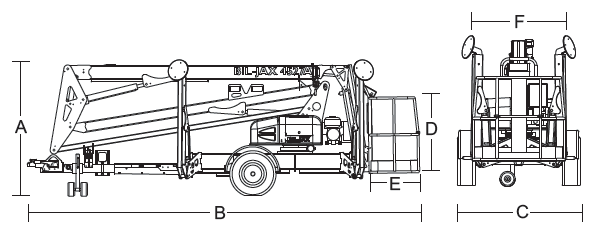

(A) Height - stowed (B) Length - stowed (C) Width - stowed (D) Height - platform (E) Length - platform (F) Width - platform	76 3/4 in. 19 ft. 6 in. 5 ft. 5 1/2 in. 43 in. 30 in. 48 in.	195 cm 5.9 m 166 cm 109 cm 76 cm 122 cm
Platform rotation (optional)	90° / manual
Jib length	4 ft. 3 in.	1.3 m
Jib vertical motion	150° (+70 / -80)
Jib rotation (optional)	180° / hydraulic
Outrigger type	Hydraulic
Leveling system	Auto leveling
Leveling capability	13 1/2°
Outrigger footprint - length	12 ft. 4 in.	3.8 m
Outrigger foorprint - width	11 ft. 4 in.	3.5 m
Footpad diameter	12 1/2 in.	32 cm
Tow speed rating	65 mph	105 km/h
Tongue weight	170 lbs.	77 kg
Overrun brakes	Standard
Parking brake	Standard
Tire size	ST 225/75 R15D
Standard control system	24V DC
Batteries	4 x 6V 245 amp-hr
Charger	40 amp
Total weight³	3,880 lbs.	1,760 kg

¹ The metric equivalent of working height adds 2 m to the maximum platform height. U.S. adds 6 ft to the maximum platform height.
² Maximum platform height when outriggers are fully extended on a level surface.
³ Weight will vary depending on options and/or market destination.
