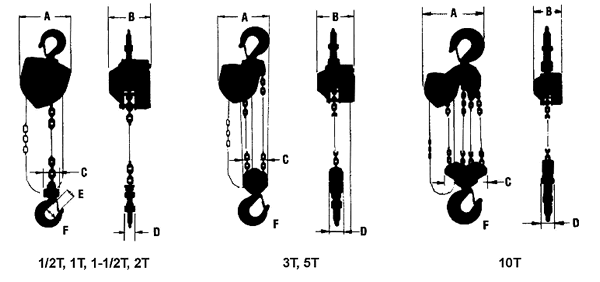

Chain Hoist Rental 1-Ton 10' (Jet L-90-1T-10) CF2T Overview Description Specs Operations Safety Brochures/Manuals Specs (Specifications may change due to continuous product development) Jet Model L-90-1T-10 Manual Chain Hoist Quick Specs Model Number L-90-1T-10  Brand Jet  Height 7.6 inch Width 7.3 inch Length 9.6 inch Net Weight 27.6 pound Gross Weight 27.6 pound Capacity 1 metric ton Rated Capacity 2205 pound Standard Lift 10 ' Headroom 11-3/4" Number of Falls 1  Load Chain Diameter 6.3 mm  Required hand chain (ft.) to lift load 1' 50  Required pounds of pull to lift capacity 69  Jet L-90 Series Manual Chain Hoist Full Specifications Part Number Model Rated Capacity (lbs.) Stnd. Lift (ft.) No. of Falls Load Chain Dia. (mm) Pull to Lift Capacity (lbs.) Req'd Hand Chain (ft.) to lift load 1" Shipping Weight (lbs.) A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) 101505 L-90-1/2T-10 1,100 10 1 5 59 29 23 5-1/2 6-1/8 2-9/32 1-1/4 1 1-7/16 101510 L-90-1T-10 2,200 10 1 6.3 69 50 29 6-1/4 6-1/4 2-7/16 1-3/8 1-13/16 1-11/16 101515 L-90-1/.5T-10 3,520 10 1 7.1 91 60 37 7-1/4 6-5/8 2-9/16 1-7/16 1-3/8 1-7/8 101520 L-90-2T-10 4,400 10 1 8 88 77 48 8-1/2 7-3/16 2-5/8 1-5/8 1-1/2 2-3/32 101530 L-90-3T-10 6,820 10 2 7.1 88 120 56 9 6-5/8 4-3/8 2-1/2 1-3/4 2-3/8 101550 L-90-5T-10 11,000 10 2 9 106 190 97 11-1/8 7-1/2 6-1/2 3-3/32 2-3/32 2-3/4 101560 L-90-10T-11.5 22,000 11.5 4 9 116 385 209 15-1/8 7-1/2 11-13/16 3-7/8 2-3/4 3-3/8

---
