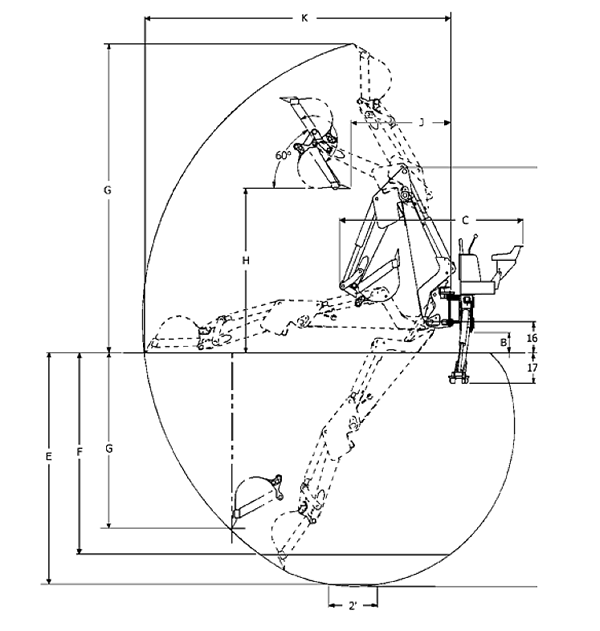

Backhoe Attachment, BH609 Base Unit (Edge #500294) Overview Description Specs Specs (Specifications may change due to continuous product development) C.E. Attachments Backhoe Attachment (BH60) Model BH609 (A) Transport Height (Boom Fully Retracted) 7' 9" (236 cm) Transport Width (Stabilizers Up) 4' 9" (144 cm) (B) Ground Clearance 11" (279 cm) (C) Overall Length 7' 7" (231 cm) Boom Pivot Height 16" (406 mm) Operating Weight (w/ 12" Bucket) 1,702 lbs. (772 kg) Operational (D) Digging Depth Maximum 9' 8" (294 cm) (E) Digging Depth (2') Flat Bottom 9' 7" (292 cm) (F) Digging Depth (8') Flat Bottom 8' 3" (251 cm) (G) Overall Operating Height (Fully Raised) 12' 10" (391 cm) (H) Loading Height 6' 10" (208 cm) (J) Loading Reach 4' 2" (127 cm) (K) Reach From Swing Post 12' 10" (391 cm) Bucket Rotation 180° Swing Arc 180 Straight Wall Digging Depth 7' 3" (220 cm) Stabilizer Spread Operating Position 9' 11" (302 cm) Stabilizer Down Below Grade 17" (431 mm) System Relief Valve Setting 2,500 psi (172 bar) Digging Force, Bucket Cylinder (lbf/kN) 5,908 (25.24) Digging Force, Dipper Cyliner (lbf/kN) 3,232 (14.38

---
