Hydraulic Power Pack 24 HP Honda (Hydra-Tech HT20GV)

Specs (Specifications may change due to continuous product development)

Model HT20G/GV Specifications
Engine	Honda GX670 Gasoline
Horsepower	24 @ 3500 RPM
Hydraulic Output	Variable, Max. 12 GPM (45 LPM)
Operating Pressure	Maximum 2,500 PSI (170 Bar)
Hose Port Size	3/4" NPT
Hydraulic Oil	SAE 10W or 20W Type AW Also: Dextron ATF or Bio-Degradeable Oil (Consult Factory)
Oil Filtration	10 Micron (Standard)
Oil Reservoir Capacity	8 Gallons ( 30 liters)
Fuel Tank Capacity	15 Gallons (57 liters)
Fuel Consumption	Approximately 1.5 Gallons / Hour (5.7 Liters / Hour)
Dimensions (H x W x L)	37-1/2" x 33-1/2" x 50" (95 cm x 85 cm x 127 cm)
Weight	450 lbs. (204 kg)

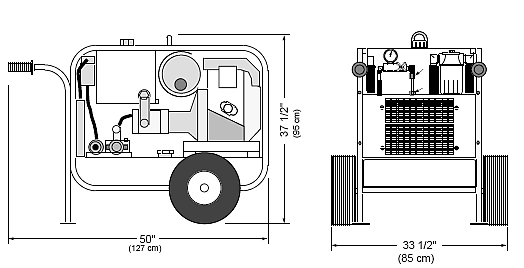

Model HT20G/GV Overall Dimensions
