Pump, 4" Submersible - Hydraulic Sludge Pump, Aluminum (Hydra-Tech S4THL)

Specs (Specifications may change due to continuous product development)

Hydra-Tech S4THL Hydraulic Submersible Pump (Aluminum Body) Specifications
Weight (Aluminum Body)	179 lbs. (75 kg)
Height	34-1/2" (88 cm)
Diameter (@ widest point)	25-1/2" (65 cm)
Discharge	4", 125# ASA Flange
Inlet Flange	4" 125# ASA
Solids Handling	3-1/2" (9 cm)
Hose Ports	1" SAE
Pump Body	Heat Treated Aluminum
Impeller	Ductile Iron
Wear Ring & Weal Plate	Stainless Steel
Shaft	Stainless Steel
Shaft Seal	Carbon/Ceramic (Std.) Silicon Carbide (Optional)
Elastomers	Buna N (Std.)
Hydraulic Oil	214-320 s.s.u. @ 100° F (64° C)
Input Flow	Max 30 GPM (114 LPM)
Operating Pressure	Max 3,000 PSI (204 Bar)
Power Source	Any Open Hydraulic System

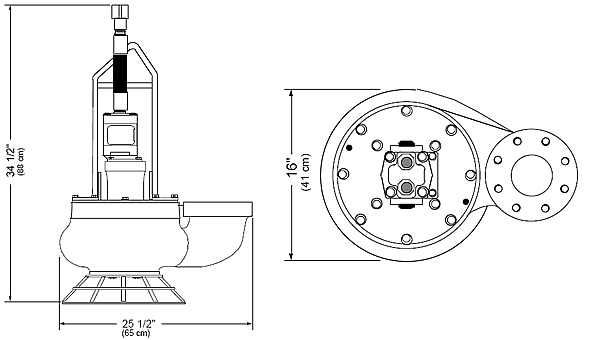

Hydra-Tech S4THL Overall Dimensions

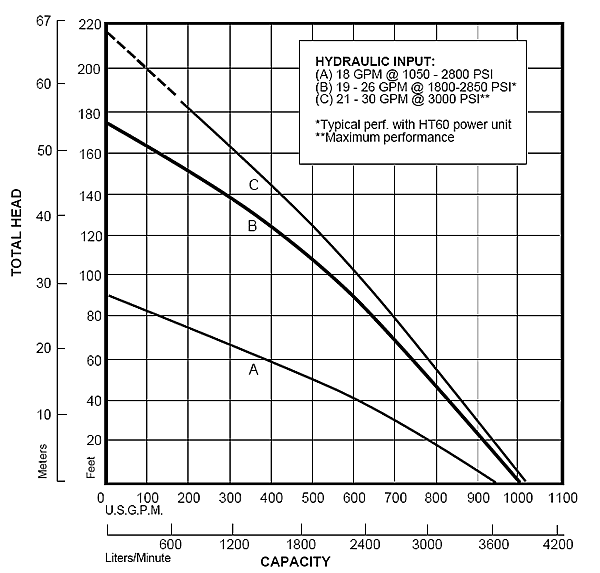

Hydra-Tech S4THL Typical Performance
