Skid Steer, 1050 lbs. (Mustang 2026)
Specs (Specifications may change due to continuous product development)
Mustang Skid-Steer Loader 2026 Technical Specifications | Engine Specs | Make | Yanmar | Model | 3TNV88 | Displacement | 100 cu. in (1.6 L) | Number of Cylinders | 3 | Rated Net Power Output | 35 HP (26 kW) @ 2600 rpm | SAE-Rated Torque | 80 ft lbs. (108 Nm) @ 1200 rpm | Maximum Axle Torque | 3351 ft. lbs. (4543 Nm) | Fuel Tank | 10.3 gallons (46.9 L) | | Electrical System Specs | Battery Power | 12 volt | Cold Cranking Amps | 650 amp | | Hydraulic System Specs | Standard Auxiliary Hyydraulics | 14.5 gpm (55 L/min) | Optional Hi-Flow Auxiliary Hydraulics | N/A | Working Pressure | 2750 psi (190 bar) | Hydraulic Tank Refill/System Total | 8.5/10 gal. (32.2/37.8 L) | | Capacities / Performance Specs | SAE Breakout Force- Lift | 24200 lbs. 9.7 kN) | SAE Breakout Force - Tilt | 2800 lbs. (12.4 kN) | SAE Operating Load | 1050 lbs. (476 kg) | SAE Operating Load w/ Optional Weight Kit | 1175 lbs (532 kg) | Tipping Load | 2100 lbs. (953 kg) | Lifting Arm | Radial | Travel Speed | 0 - 6.8 mph (0 - 10.9 km/h) | Optional Travel Speed | NA | | Undercarriage Specs | Wheel Base (F) | 34.5" (876 mm) | Ground Clearance (I) | 6" (152 mm) | | Dimensions / Weight Specs | Operating Weight | 4000 lbs. (1814 kg) | Length - With Bucket (H) | 114" (2896 mm) | Specifed Height (R) | 59.4" (1509 mm) | Overall Height - Top of ROPS (K) | 70.3" (1786 mm) | Clearance Circle - Front (w/o Bucket) (M) | 44.1" (1120 mm) | Clearance Circle - Front (w/ Bucket) (Q) | 69.4" (1763 mm) | Clearance Circle - Rear (N) | 54.1" (1374 mm) | Rollback Angle at Ground Level (E) | 29° | Departure Angle (J) | 26° | Reach at Specified Height (S) | 38.4" (975 mm) | Width w/o Bucket (27 x 8.50 x 15 HD Tires) (O) | 48.4"/58.2" (1229/1428 mm) | Width w/o Bucket (27 x 10.50 x 15 HD Tires) | 52.4"/57.2" (1331/1453 mm) | Width w/o Bucket (10.00 x 16.5 HD Tires) | 51.9"/57.7" (1318/1466 mm) | Length w/o Bucket (G) | 89" (2261 mm) | Height to Hinge Pin (A) | 108.1" (2743 mm) | | Dumping Capacity Specs | Dump Height (B) | 84.5" (2146 mm) | Dump Reach (C) | 22.6" (579 mm) | Dump Angle at Full Height (D) | 42° | | Bucket Specs | Width (L) | 48" (1219 mm) | Self-Leveling Bucket | Optional | Reference Bucket Capacity | 9.75 cu. ft. (276 L) |

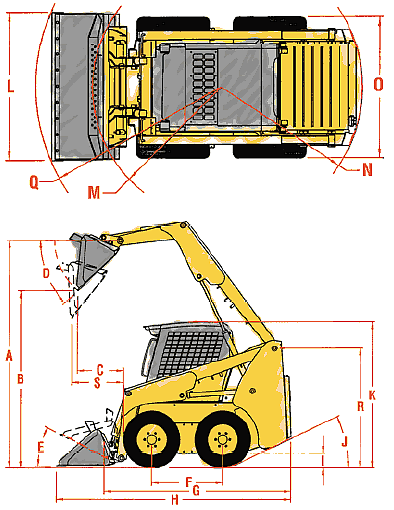

![](http://www.k2dt.com/resources/Mustang_2026_schem.gif) |
