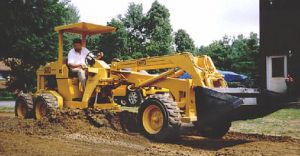

Basic 601 Motor Grader Articulating (Basic 601)

Basic Equipment

Basic 601 Motor Grader Articulating (Basic 601)

Model: 601

Request a quote for current pricing & availability.

Genuine OEMShips nationwideExpert support

Hydrostatic Articulating Grader 8' Mold Board,Diesel, Front Blade, Rear Ripper. 6-wheel unit. SPECIFICATIONS: Overall Dimensions: Length: 16' 9" Width: 5' 8" Height: 7' 6" Weight: 6400 lbs. Fluid Capacities: Fuel: 12 US gallons Hydraulic: 14 US gallons Steering: 40° front wheel power steering. Articulates 20° left or right from center. Engine: 49.5 hp Kubota water-cooled 4 cylinder Tire Size: 10-16.5 10 ply rating. Optional 12-16.5 10 ply rating Drive System: 4 wheel hydrostatic drive. Travel speed 0-3.5 low/ 0-8 high. Scarifier: 4 teeth, 24" rip width Replaceable tips Moldboard: Size: 8' wide x 16" high Clearance: 13" Cut Depth: 5" Tilt: 40° Side Shift: 24" Blade Angle: 40° left or right from center Blade Type: 1/2" X 6" X 6" reversible Specs for Optional Loader System: 9' 6" lift height Universal Quick-Attach Tool Bar 12-GPM remote hydraulic circuit

Hydrostatic Articulating Grader 8' Mold Board,Diesel Front Blade Rear Ripper 6-wheel unit

Overall Dimension Length Width 16' 9" 5' 8" Fluid Capacities Fuel Hydraulic 12 US Gallons 14 US Gallons Steering 40° front wheel power Steering articulates 20° left or rightfrom center Engine 49.5 Kubota water-cooled, 4 cylinder Tire Size 10-16.5 10 ply rating; optional 12-16.5 10 ply rating Drive System 4 wheel hydrostatic drive Travel speed 0-3.5 low/0.8 high Height 7'6" Weight 6400 lbs. Moldboard Size Clearance Cut Depth Tilt Side Shift Blade Angle Blade Type 8' wide x 16" high 13" 5" 40° 24" 40° left or right from center 1/2" x 6" x 6" reversible Scarifier 4 teeth 24" rip width, replaceable tips
