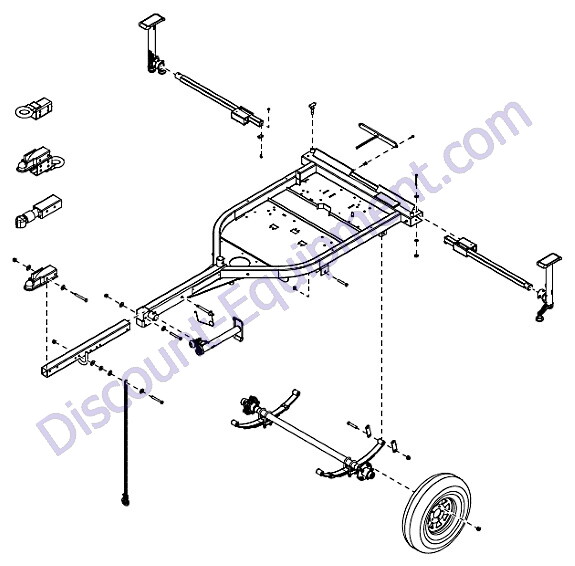

Generac Magnum MLT6SMDS Trailer Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





10000020727

10000020727 Assembly Harness Extension Loomed Generac Magnum MLT6SMDS Light Tower

Your Price: $97.11

Click For Price and Specs

10000021817

10000021817 Weldment Lt chassis Generac Magnum MLT6SMDS Light Tower

Your Price: $1,619.00

Click For Price and Specs

13003B

13003B Coupler 2.00 Ball/3.00 Channel Bulldog Generac Magnum MLT6SMDS Light Tower

Your Price: $226.69

Click For Price and Specs

15976B

15976B Wheel ST175/8013 Generac Magnum MLT6SMDS Light Tower

Your Price: $229.59

Click For Price and Specs

16830

16830 Coupler 2.00 ball/2.50 channel Generac Magnum MLT6SMDS Light Tower

Your Price: $53.50

Click For Price and Specs

16835B

16835B Weldment Lunette Ring 3.00 ID 2.50 Tongue Generac Magnum MLT6SMDS Light Tower

Your Price: $157.09

Click For Price and Specs

17969B

17969B Weldment tilt tongue Generac Magnum MLT6SMDS Light Tower

Your Price: $147.59

Click For Price and Specs

19637

19637 Plate Shackle Bracket Generac Magnum MLT6SMDS Light Tower

Your Price: $6.27

Click For Price and Specs

23367

23367 Chain Safety 7800lbs Rated Generac Magnum MLT6SMDS Light Tower

Your Price: $34.54

Click For Price and Specs

33943

33943 Pin locking .500 x 3.50 Generac Magnum MLT6SMDS Light Tower

Your Price: $37.30

Click For Price and Specs

34760

34760 Axle 2200 lbs 47TC 35SC Generac Magnum MLT6SMDS Light Tower

Your Price: $319.00

Click For Price and Specs

34792ZC

34792ZC Weldment Combination Hitch Tongue Generac Magnum MLT6SMDS Light Tower

Your Price: $129.66

Click For Price and Specs

36869

36869 Outrigger Guide Block Molded Generac Magnum MLT6SMDS Light Tower

Your Price: $18.73

Click For Price and Specs

36890

36890 Spring Pin Handle Generac Magnum MLT6SMDS Light Tower

Your Price: $18.43

Click For Price and Specs

36960

36960 Assembly Tail Light Generac Magnum MLT6SMDS Light Tower

Your Price: $34.54

Click For Price and Specs

50215

50215 Screw .500-13 x 4.00 standard hex G5 Generac Magnum MLT6SMDS Light Tower

Your Price: $6.63

Click For Price and Specs

60096

60096 Nut .500-20 Lug G5 Generac Magnum MLT6SMDS Light Tower

Your Price: $6.99

Click For Price and Specs

60119

60119 Washer .312 Flat .875/.070 Zinc Generac Magnum MLT6SMDS Light Tower

Your Price: $6.09

Click For Price and Specs

60144

60144 Nut .250-20 nylock G5 Generac Magnum MLT6SMDS Light Tower

Your Price: $1.29

Click For Price and Specs

60303

60303 Nut .312-18 nylock G2 Generac Magnum MLT6SMDS Light Tower

Your Price: $13.83

Click For Price and Specs

60404

60404 Screw .312-18 x 4.00 standard hex G5 Generac Magnum MLT6SMDS Light Tower

Your Price: $6.63

Click For Price and Specs

60416

60416 Washer .500 flat 1.375/.090 Generac Magnum MLT6SMDS Light Tower

Your Price: $13.65

Click For Price and Specs

60503

60503 Screw shackle .562-18 x 3.00 standard hex G5 Generac Magnum MLT6SMDS Light Tower

Your Price: $7.89

Click For Price and Specs

60504

60504 Nut .562-18 Lock Hex G5 Generac Magnum MLT6SMDS Light Tower

Your Price: $6.63

Click For Price and Specs

60694

60694 Screw 8-32 x .750 pan Phillips Generac Magnum MLT6SMDS Light Tower

Your Price: $6.63

Click For Price and Specs

62221

62221 Nut Nylock .500-13 G5 Generac Magnum MLT6SMDS Light Tower

Your Price: $7.35

Click For Price and Specs

65548

65548 Adapter 4 pin flat to 4 pin flat x 12.00 Generac Magnum MLT6SMDS Light Tower

Click For Price and Specs

68324

68324 Harness trailer enclosure front Generac Magnum MLT6SMDS Light Tower

Your Price: $35.62

Click For Price and Specs

68348

68348 Harness trailer wiring tandem tow Generac Magnum MLT6SMDS Light Tower

Your Price: $186.59

Click For Price and Specs

70230ZY

70230ZY Weldment Outrigger Tube Generac Magnum MLT6SMDS Light Tower

Your Price: $90.60

Click For Price and Specs

72126

72126 Jack Top Wind 1200lb Tube Mounted Generac Magnum MLT6SMDS Light Tower

Your Price: $87.55

Click For Price and Specs

72128

72128 Wear Pad/Stop Outrigger Generac Magnum MLT6SMDS Light Tower

Your Price: $16.03

Click For Price and Specs

73092

73092 Insert Grip Close Sealed Generac Magnum MLT6SMDS Light Tower

Your Price: $8.97

Click For Price and Specs

73196

73196 Screw .250-20 x 2.25 Socket Head Generac Magnum MLT6SMDS Light Tower

Your Price: $8.61

Click For Price and Specs

G022304

G022304 (60309) Washer Flat 1/2 Zinc Generac Magnum MLT6SMDS Light Tower

Your Price: $11.85

Click For Price and Specs
