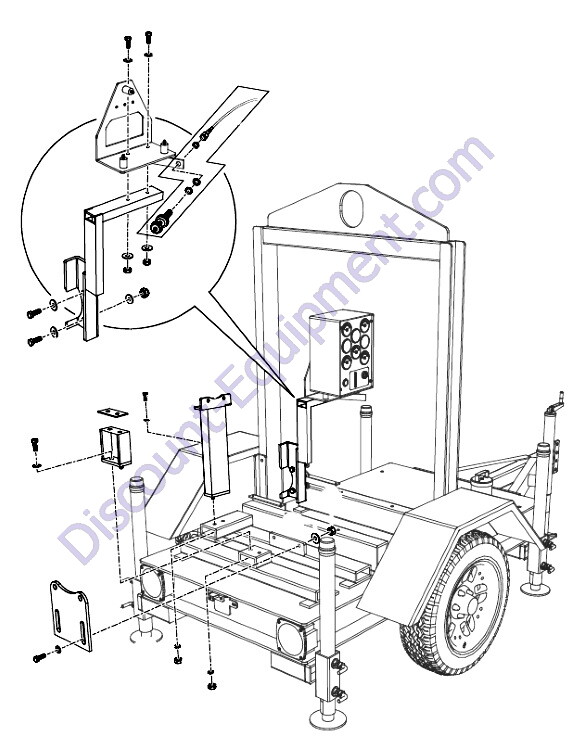

MultiQuip AP6 / AP8 Control Box Mounting Assembly

Hover over the parts to see the part number
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

APF320000029 THROTTLE CABLE ASSEMBLY MultiQuip AP6 AP8 SERIES Trash Pump

Click For Price and Specs

APRD31401 BRACKET PANEL MultiQuip AP6 AP8 SERIES Trash Pump

Click For Price and Specs

APRD31402 SUPPORT PUMP END MultiQuip AP6 AP8 SERIES Trash Pump

Click For Price and Specs

APRD31403 HEX BOLT 5/16" X 2 MultiQuip AP6 AP8 SERIES Trash Pump

Click For Price and Specs

APRD31404 WASHER FLAT MultiQuip AP6 AP8 SERIES Trash Pump

Click For Price and Specs

APRD31405 NUT NYLOCK 1/2" MultiQuip AP6 AP8 SERIES Trash Pump

Click For Price and Specs

APRD314061 INTAKE SUPPORT MultiQuip AP6 SERIES Trash Pump

Click For Price and Specs

APRD314062 INTAKE SUPPORT MultiQuip AP8 SERIES Trash Pump

Click For Price and Specs

APRD31407 HEX BOLT 1/2" X 1-3/4" MultiQuip AP6 AP8 SERIES Trash Pump

Click For Price and Specs

APRD31408 WASHER FLAT 1/2" MultiQuip AP6 AP8 SERIES Trash Pump

Click For Price and Specs

APRD31409 NUT MultiQuip AP6 AP8 SERIES Trash Pump

Click For Price and Specs

APRD314101 DISCHARGE SUPPORT MultiQuip AP6 SERIES Trash Pump

Click For Price and Specs

APRD314102 DISCHARGE SUPPORT MultiQuip AP8 SERIES Trash Pump

Click For Price and Specs
