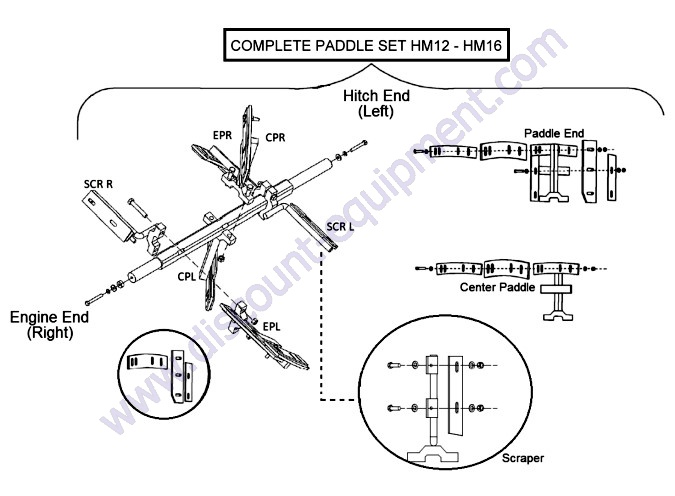

TK Equipment HM12 HM16 Paddle Assembly

Hover over the parts to see the part number
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

0200CO01AS-1 CENTER PADDLE RIGHT ARM TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0200CO02AS-1 CENTER PADDLE LEFT ARM TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0200CO03AS-1 END PADDLE RIGHT ARM HITCH END TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0200CO04AS Paddle Left Arm TK Equipment HM16 Hydraulic Mortar Mixer

Your Price: $73.50

Click For Price and Specs

0200KI01AS-H12 COMPLETE PADDLE SET TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Your Price: $514.28

Click For Price and Specs

0200KI03AS RUBBER BLADE KIT TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Your Price: $78.75

Click For Price and Specs

0200PL01ES/0200PL02ES Scraper LH/RH TK Equipment HM16 Hydraulic Mortar Mixer

Click For Price and Specs

0200RF01AS Rubber Center Blade TK Equipment HM16 Hydraulic Mortar Mixer

Your Price: $15.00

Click For Price and Specs

0200RF02AS END PADDLE SIDE RUBBER BLADE TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0200SO01AS CENTER PADDLE STEEL BLADE TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0200SO02AS END PADDLE SIDE STEEL BLADE TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0200SO03AS-1 END PADDLE LEFT ARM ENGINE END TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0200TU01FC MAIN SHAFT BUSHING TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0201RF01AS CENTER PADDLE RUBBER BLADE TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0205KI01ES SPIRAL BLADE KIT TK Equipment HM12 Hydraulic Mortar Mixers

Your Price: $500.00

Click For Price and Specs

0206CC01CH SQUARE MAIN SHAFT 1-3/4" X 55-1/4" NEW TK Equipment HM16 Hydraulic Mortar Mixer

Your Price: $190.00

Click For Price and Specs

0206KI01ES SPIRAL BLADE KIT TK Equipment HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0222CC01CH SQUARE MAIN SHAFT 1-3/4" X 52-3/4" NEW TK Equipment HM12 Hydraulic Mortar Mixer

Your Price: $190.00

Click For Price and Specs

0222CO01SR END SCRAPER LEFT ENGINE END TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

0222CO02SR END SCRAPER RIGHT HITCH END TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Click For Price and Specs

RNPX038GAL PLAIN WASHER 3/8" TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Your Price: $4.64

Click For Price and Specs

TCCS012GAL HEX LOCK NUT 1/2" TK Equipment HM12 HM16 Mortar Mixer

Your Price: $4.75

Click For Price and Specs

TCCS038GAL LOCK NUT 3/8" TK Equipment HM12 HM16 Mortar Mixer

Your Price: $4.75

Click For Price and Specs

TOCD012312 HEX BOLT HD 1/2 X 3-1/2 TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Your Price: $4.24

Click For Price and Specs

TOCD038112 HEX BOLT 3/8" X 1-1/2" TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Your Price: $4.75

Click For Price and Specs

TOCD038200 HEX BOLT HD GR5 3/8" X 2" TK Equipment HM12 HM16 Hydraulic Mortar Mixers

Your Price: $4.74

Click For Price and Specs
