You are here: Home > Manufacturers > CP - Chicago Pneumatic > CP Air Compressor Parts > Chicago Pneumatic CPS 400-200 MP Air Compressor > Chicago Pneumatic CPS 400-200 MP KOD Aftercooler: Version 13

Chicago Pneumatic CPS 400-200 MP KOD Aftercooler: Version 13

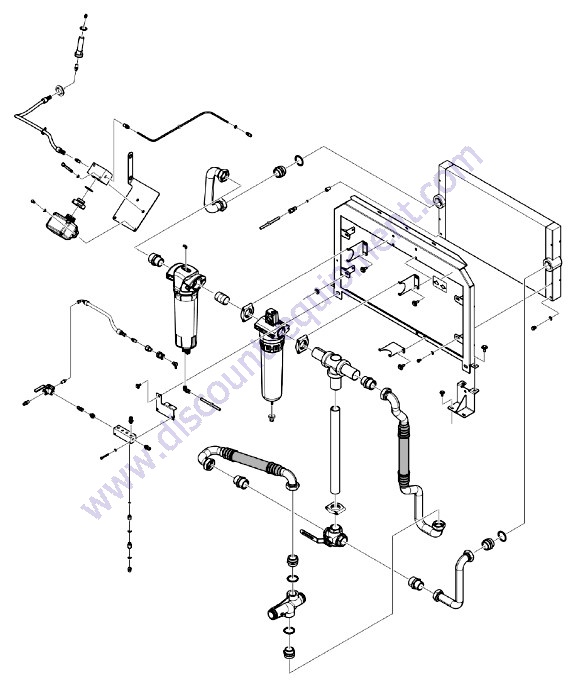

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





0070600205

0070600205 TUBE M8.0OD X 5.5ID BLACK Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0070600220

0070600220 TUBE 4MM Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0075402569

0075402569 TUBE Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0147120403

0147120403 HEX HEAD SCREW Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0147124603

0147124603 SCREW Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0147132103

0147132103 HEX BOLT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0147133603

0147133603 SCREW M8 X 80 8.8 ZP STL Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0147196276

0147196276 SCREW M6 X 50L HXHD ZNPLT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0266211000

0266211000 HEXAGON NUT M8 Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0292130500

0292130500 LOCKNUT .312-18HEX ZN PLT ST Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0300027666

0300027666 WASHER M8.40/16.0X1.5T BLACK Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0301231800

0301231800 PLAIN WASHER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0301232100

0301232100 PLAIN WASHER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0301232700

0301232700 WASHER FLAT M6.70/16.0X1.5T N Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0301233500

0301233500 PLAIN WASHER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0348010212

0348010212 CABLE TIE WITH FIR TREE MOUNT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0571003541

0571003541 NIPPLE G1.5XM52-1.5 Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0581000035

0581000035 COUPLING M8ODT X G .250MALE NYL Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0581120023

0581120023 ELBOW TUBE Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0583812010

0583812010 ELBOW PUSH-IN 4M Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0583812062

0583812062 ELBOW PUSH-IN COUPLING Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0653106200

0653106200 GASKET 13 X 20 X 1.5 Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0653116500

0653116500 COPPER WASHER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0653118900

0653118900 GASKET FLAT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0661100038

0661100038 WASHER SEAL Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0686371601

0686371601 PLUG .250 HEX HEAD ZN PLT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

0803501210

0803501210 SILENCER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310032151

1310032151 ADAPTER HOSE Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310035202

1310035202 CLAMP HOSE .56-1.06 Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310035608

1310035608 LABEL AC VALVE POS XAS400CD Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310050304

1310050304 CLAMP U-BOLT 2"OD X 5/16THD Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310072952

1310072952 BULKHEAD ANCHOR COUPLING Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310073837

1310073837 GROMMET 1-1/2ID HOLE 1/8 THK Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310074084

1310074084 ELBOW G.125 MALE X M8 OD TUBE Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310075638

1310075638 CLAMP 3/4" ID M8 HOLE Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310075988

1310075988 VALVE 3-WAY BALL 1-1/2NPT "F" Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310076187

1310076187 COUPLING 1/4NPT X 8MM PUSH-TO-LK Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310084100

1310084100 NIPPLE CLOSE 1.5NPT X 2.5L Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310127300

1310127300 AFTERCOOLER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310224200

1310224200 PRESSURE REDUCER 1.5MM Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310266507

1310266507 ADAPTER -4JICF TO 0.25NPT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310266508

1310266508 VALVE 3-WAY 0.25" NPT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310677100

1310677100 LABEL QUALITY AIR PFF Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310801700

1310801700 MANIFOLD 8MM TUBING Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310923752

1310923752 FITTING 1/4BSPPX1/4JIC MALE Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1310934400

1310934400 BLOCK ALUMINUM GAUGE MOUNT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316010001

1316010001 NOZZLE 40PSI .3GPM 1/8MNPT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316010006

1316010006 PIPE CONDENSATE REMOVAL Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316010074

1316010074 ADP 1/4"BSPP X 1/4"MNPT BRASS Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316010101

1316010101 NIPPLE ADAPTOR M42 X 1.5 NPT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316010221

1316010221 WASHER SEAL Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316010262

1316010262 TEE 1-1/2" NPT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316010300

1316010300 BLOCK CONDENSATE DRAIN Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316021688

1316021688 FILTER MOUNTING KIT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316021689

1316021689 OIL COALESCING FILTER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316022910

1316022910 WASHER SEAL M5.8IDX11.3OD Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316113001

1316113001 PIPE AFTERCOOLER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316113101

1316113101 PIPE TO AFTERCOOLER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316115401

1316115401 PANEL AFTERCOOLER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316116100

1316116100 SUPPORT AFTERCOOLER XAS400/440 Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316116300

1316116300 SUPPORT TUBING MANIFOLD BLOCK Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316140000

1316140000 HOSE AIR OUT AC Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316142800

1316142800 BRACKET AFTERCOOLER FILTERS Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316142901

1316142901 PIPE AFTERCOOLER FILTERS Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316143000

1316143000 HOSE VESSEL TO VALVE Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316156700

1316156700 CONDENSATE FLASH BOTTLE Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1316199200

1316199200 CONDENSATE FLASH BOTTLE BRACKET Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1615566400

1615566400 HEX HEAD SCREW Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1615861902

1615861902 COUPLING WS/PD/DD FILTER DRAIN Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1615862000

1615862000 RESTRICTOR XAS46-76 Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1619276600

1619276600 PAINT STRIPPING BOLT M8x20 Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1626555280

1626555280 VALVE SAFETY SIZE 2 AFTERCOOLER Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1638661200

1638661200 WATER SEPARATOR Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs

1638795100

1638795100 AIR OUTLET PIPE AC W/PORT Chicago Pneumatic CPS 400-200 MP KOD Air Compressor

Click For Price and Specs
