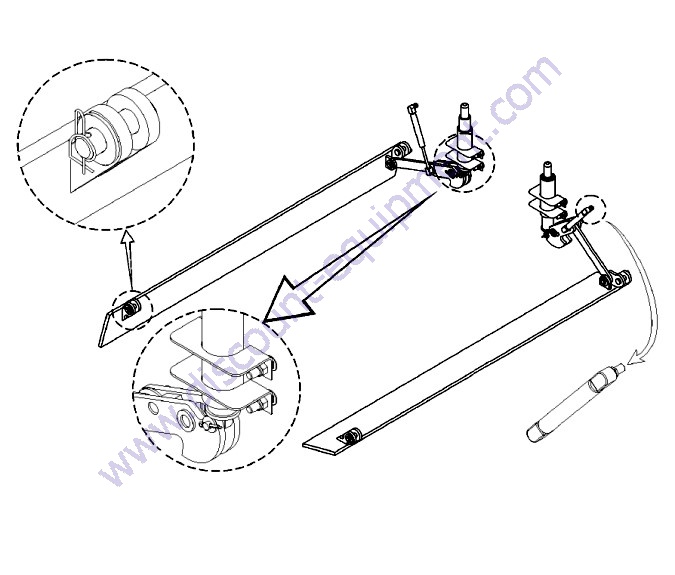

Genie GS-4047 Pothole Protection Assembly

Hover over the part on the breakdown below and click to see details
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

105060GT GROUND STRAP 8" LONG Genie GS-4047 Scissor Lift

Click For Price and Specs

105069GT POTHOLE GUIDE ASSEMBLY Genie GS-4047 Scissor Lift

Click For Price and Specs

105156GT BUSHING FLANGED .63 X .77 X .38 Genie GS-4047 Scissor Lift

Click For Price and Specs

12016GT PIN COTTER .125 X .75 Genie GS-4047 Scissor Lift

Click For Price and Specs

1255757GT BOLT CARRIAGE 3/8-16 X 1.25 GR5 Genie GS-4047 Scissor Lift

Click For Price and Specs

1255758GT WASHER FLAT 3/8" USS Genie GS-4047 Scissor Lift

Click For Price and Specs

1256177GT SCREW PHPM 10-32 X 1.75 Genie GS-4047 Scissor Lift

Click For Price and Specs

1259177GT RUE RING 5/8 Genie GS-4047 Scissor Lift

Click For Price and Specs

1259178GT PIN CLEVIS .375 X 1.75 Genie GS-4047 Scissor Lift

Click For Price and Specs

1259180GT WASHER SHIM .625 X 1.188 X .064 Genie GS-4047 Scissor Lift

Click For Price and Specs

1259197GT PIN CLEVIS .625 X 1.88 Genie GS-4047 Scissor Lift

Click For Price and Specs

1259686GT WASHER FLAT .765 X 1.312 X .093 Genie GS-4047 Scissor Lift

Click For Price and Specs

1274168GT NUT NYLOCK 10-32 Genie GS-4047 Scissor Lift

Click For Price and Specs

25817GT BEARING 1" ID X 1.25" OD X 1" Genie GS-4047 Scissor Lift

Click For Price and Specs

39542GT GAS SHOCK Genie GS-4047 Scissor Lift

Click For Price and Specs

55355GT SPACER .75 ID X 1.5 OD X 1/4" THICK Genie GS-4047 Scissor Lift

Click For Price and Specs

6700GT WASHER STAR EXTERNAL .375 Genie GS-4047 Scissor Lift

Click For Price and Specs

78086GT BALL STUD GAS STRUT 3/8-16 Genie GS-4047 Scissor Lift

Click For Price and Specs

824029GT NUT TOPLOCK FLANGE 3/8-16 Genie GS-4047 Scissor Lift

Click For Price and Specs

824038GT NUT TOPLOCK JAM 3/8-16 Genie GS-4047 Scissor Lift

Click For Price and Specs

825358GT WASHER FLAT 5/16 USS Genie GS-4047 Scissor Lift

Click For Price and Specs

84574GT POTHOLE BELLCRANK LINK ASSEMBLY Genie GS-4047 Scissor Lift

Click For Price and Specs

96085GT WASHER THRUST .63 X 1.13 X .06 Genie GS-4047 Scissor Lift

Click For Price and Specs

96142GT POTHOLE ACTUATOR Genie GS-4047 Scissor Lift

Click For Price and Specs

96281GT POTHOLE BELLCRANK LINK Genie GS-4047 Scissor Lift

Click For Price and Specs

96408GT BEARING 1.523" ID X 1.75" OD X 0.63 Genie GS-4047 Scissor Lift

Click For Price and Specs

96541GT CAM FOLLOWER 1.125 X .375 DELRIN Genie GS-4047 Scissor Lift

Click For Price and Specs

96637GT PLATE POTHOLE LINK Genie GS-4047 Scissor Lift

Click For Price and Specs

96638GT WELDMENT POTHOLE RIGHT SIDE Genie GS-4047 Scissor Lift

Click For Price and Specs

96639GT WELDMENT POTHOLE LEFT SIDE Genie GS-4047 Scissor Lift

Click For Price and Specs

96642GT BEARING .75 ID X 1" OD X 1.38 LG Genie GS-4047 Scissor Lift

Click For Price and Specs

96643GT PIN POTHOLE LINK PIVOT Genie GS-4047 Scissor Lift

Click For Price and Specs

96838GT SPRING POTHOLE PUSHER Genie GS-4047 Scissor Lift

Click For Price and Specs

96839GT POTHOLE PUSHER ASSEMBLY Genie GS-4047 Scissor Lift

Click For Price and Specs

96840GT PIN POTHOLE ACTUATOR Genie GS-4047 Scissor Lift

Click For Price and Specs
