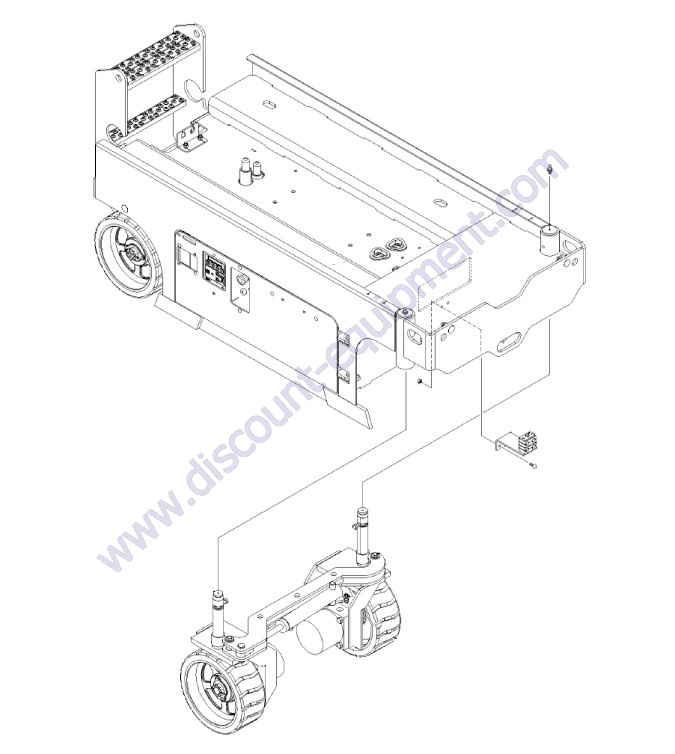

Genie GS-1930 GS-1932 Steer Linkage and Wheels

Hover over the part on the breakdown below and click to see details
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

105051GT FORMING HOSE CLAMP SUPPORT Genie GS-1930 GS-1932 Scissor Lift

Your Price: $37.46

Click For Price and Specs

105092GT BOLT CARRIAGE 3/8-16 X 1.25 GR5 Genie GS-1930 GS-1932 Scissor Lift

Your Price: $1.67

Click For Price and Specs

105122GT WHEEL & TIRE ASSEMBLY LP 12" Genie GS-1930 GS-1932 Scissor Lift

Your Price: $245.82

Click For Price and Specs

105565GT WASHER THRUST Genie GS-1930 GS-1932 Scissor Lift

Your Price: $8.10

Click For Price and Specs

119619GT BEARING 1.5 ID X 1.75 OD X 1.5 L Genie GS-1930 GS-1932 Scissor Lift

Your Price: $14.91

Click For Price and Specs

1259192GT SCREW YOKE LOCK ZAG Genie GS-1930 GS-1932 Scissor Lift

Your Price: $12.95

Click For Price and Specs

144374GT SCREW HHC 1/4-20 X 3.25 GR8 Genie GS-1930 GS-1932 Scissor Lift

Your Price: $2.33

Click For Price and Specs

21253GT CLIP HAIR PIN .125 X 2" Genie GS-1930 GS-1932 Scissor Lift

Your Price: $1.56

Click For Price and Specs

42079GT PIN COTTER .156 X 2.5" Genie GS-1930 GS-1932 Scissor Lift

Your Price: $1.18

Click For Price and Specs

44780GT NUT CASTLE 1.125-18 UNEF Genie GS-1930 GS-1932 Scissor Lift

Your Price: $22.25

Click For Price and Specs

44781GT KEY RECTANGULAR .31 X .28 X 1.25" Genie GS-1930 GS-1932 Scissor Lift

Your Price: $12.12

Click For Price and Specs

47548GT BEARING FLANGE 0.75 ID X 1" OD X 0.49 L Genie GS-1930 GS-1932 Scissor Lift

Your Price: $17.50

Click For Price and Specs

4828GT NUT NYLOCK 3/8-16 Genie GS-1930 GS-1932 Scissor Lift

Your Price: $1.13

Click For Price and Specs

58592GT PLATE HOSE ROUTING BULKHEAD ANSI/CSA Genie GS-1930 GS-1932 Scissor Lift

Your Price: $21.28

Click For Price and Specs

6091GT NUT NYLOCK 1/4-20 Genie GS-1930 GS-1932 Scissor Lift

Your Price: $1.16

Click For Price and Specs

6097GT WASHER FLAT USS 3/8" Y Genie GS-1930 GS-1932 Scissor Lift

Your Price: $1.18

Click For Price and Specs

6198GT NUT NYLOK 1/2-13 Genie GS-1930 GS-1932 Scissor Lift

Your Price: $1.34

Click For Price and Specs

6545GT PIN CLEVIS .75 X 2 Genie GS-1930 GS-1932 Scissor Lift

Your Price: $10.71

Click For Price and Specs

66770GT FITTING STRAIGHT DRIVE-IN ZERK Genie GS-1930 GS-1932 Scissor Lift

Your Price: $2.40

Click For Price and Specs

6888GT SCREW HHC 1/4-20 X 1 Genie GS-1930 GS-1932 Scissor Lift

Your Price: $1.27

Click For Price and Specs

78736GT CLAMP 2-HOSE PLASTIC 5/8 Genie GS-1930 GS-1932 Scissor Lift

Your Price: $2.23

Click For Price and Specs

825020GT ROD END .250 X 2.75 ZAG Genie GS-1930 GS-1932 Scissor Lift

Your Price: $14.05

Click For Price and Specs

8255GT SCREW HHC 3/8-16 X .75 Genie GS-1930 GS-1932 Scissor Lift

Your Price: $1.42

Click For Price and Specs

8357GT SCREW HHC 1/2-13 X 3.5 Genie GS-1930 GS-1932 Scissor Lift

Your Price: $7.29

Click For Price and Specs

84571GT TIE ROD ASSEMBLY Genie GS-1930 GS-1932 Scissor Lift

Your Price: $222.93

Click For Price and Specs

96066GT WELDMENT STR YOKE 32 MINI LT Genie GS-1932 Scissor Lift

Your Price: $437.46

Click For Price and Specs

96067GT WELDMENT STR YOKE 32 MINI RT Genie GS-1932 Scissor Lift

Your Price: $477.77

Click For Price and Specs

96068GT WELDMENT STR YOKE 30 MINI LT Genie GS-1930 Scissor Lift

Your Price: $753.81

Click For Price and Specs

96069GT WELDMENT STR YOKE 30 MINI RT Genie GS-1930 Scissor Lift

Your Price: $753.81

Click For Price and Specs

96074GT WELDMENT TIE ROD Genie GS-1930 GS-1932 Scissor Lift

Your Price: $485.00

Click For Price and Specs

96196GT PLATE HOSE ROUTING BULKHEAD CE Genie GS-1930 GS-1932 Scissor Lift

Your Price: $35.34

Click For Price and Specs

96258GT PIN STEER CYLINDER Genie GS-1930 GS-1932 Scissor Lift

Your Price: $81.66

Click For Price and Specs
