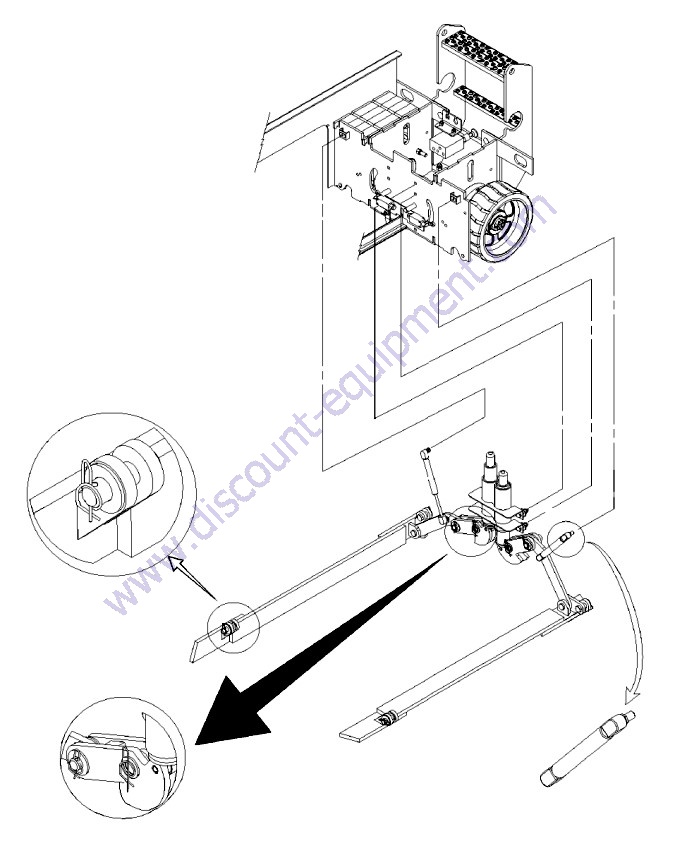

Genie GS-1530 Pothole Protection Assembly

Hover over the part on the breakdown below and click to see details
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

105055PGT PLATE POTHOLE LINK Genie GS-1530 Scissor Lift

Your Price: $47.40

Click For Price and Specs

105092GT BOLT CARRIAGE 3/8-16X1.25 GR5 Genie GS-1530 Scissor Lift

Your Price: $1.67

Click For Price and Specs

105156GT BUSHING FLANGED .63 X .77 X .38 Genie GS-1530 Scissor Lift

Your Price: $9.75

Click For Price and Specs

105275GT BRACKET LIMIT SWITCH MOUNTING Genie GS-1530 Scissor Lift

Your Price: $13.05

Click For Price and Specs

12016GT PIN COTTER .125 X .75 Genie GS-1530 Scissor Lift

Your Price: $1.46

Click For Price and Specs

1259179GT PIN CLEVIS .625 X 1.79 ZAG Genie GS-1530 Scissor Lift

Your Price: $20.94

Click For Price and Specs

19491GT CONTACTOR LIMIT SWITCH Genie GS-1530 Scissor Lift

Your Price: $61.20

Click For Price and Specs

34742GT PIN CLEVIS .375 X 1.75 LG Genie GS-1530 Scissor Lift

Your Price: $2.26

Click For Price and Specs

39542GT GAS SHOCK Genie GS-1530 Scissor Lift

Your Price: $33.52

Click For Price and Specs

4828GT NUT NYLOCK 3/8-16 Genie GS-1530 Scissor Lift

Your Price: $1.13

Click For Price and Specs

5397GT WASHER FLAT USS 5/16" Y Genie GS-1530 Scissor Lift

Your Price: $1.13

Click For Price and Specs

6564GT WASHER SHIM .765 X 1.312 X .093 Genie GS-1530 Scissor Lift

Your Price: $1.69

Click For Price and Specs

6898GT WASHER SHIM .625 X 1.188 X .064 Genie GS-1530 Scissor Lift

Your Price: $1.34

Click For Price and Specs

78086GT BALL STUD GAS STRUT 3/8-16 Genie GS-1530 Scissor Lift

Your Price: $8.13

Click For Price and Specs

84574GT POTHOLE BELL CRANK LINK ASSEMBLY Genie GS-1530 Scissor Lift

Your Price: $136.43

Click For Price and Specs

96038GT POTHOLE GUARD RT WELDMENT GROUND CONTROLS SIDE Genie GS-1530 Scissor Lift

Your Price: $242.48

Click For Price and Specs

96039GT POTHOLE GUARD LT WELDMENT BATTERY PACK SIDE Genie GS-1530 Scissor Lift

Your Price: $269.58

Click For Price and Specs

96085GT WASHER THRUST .63 X 1.13 X .06 Genie GS-1530 Scissor Lift

Your Price: $1.89

Click For Price and Specs

96135GT PIN CLEVIS .625 X 1.88 ZINC PL Genie GS-1530 Scissor Lift

Your Price: $24.95

Click For Price and Specs

96317GT GROUND STRAP 12" LG Genie GS-1530 Scissor Lift

Your Price: $9.63

Click For Price and Specs

96408GT BEARING 1.523 ID X 1.75 OD X 0.63 L Genie GS-1530 Scissor Lift

Your Price: $12.21

Click For Price and Specs

96422GT RUE RING 5/8 PIN Genie GS-1530 Scissor Lift

Your Price: $1.90

Click For Price and Specs

96423GT RUE RING 3/4 PIN Genie GS-1530 Scissor Lift

Your Price: $1.97

Click For Price and Specs

96524GT WELDMENT ASSEMBLY PH GUIDE Genie GS-1530 Scissor Lift

Your Price: $417.57

Click For Price and Specs

96541GT CAM FOLLOWER 1.125 X .375 DELRIN Genie GS-1530 Scissor Lift

Your Price: $11.46

Click For Price and Specs

96642GT BEARING .75 ID X 1.0 OD X 1.38 LG Genie GS-1530 Scissor Lift

Your Price: $14.98

Click For Price and Specs

96839GT POTHOLE PUSHER ASSEMBLY Genie GS-1530 Scissor Lift

Your Price: $223.87

Click For Price and Specs

96948GT LIMIT SWITCH WITH ROLLER ARM Genie GS-1530 Scissor Lift

Your Price: $67.48

Click For Price and Specs

97128GT ROLLER ARM LIMIT SWITCH Genie GS-1530 Scissor Lift

Your Price: $33.48

Click For Price and Specs
