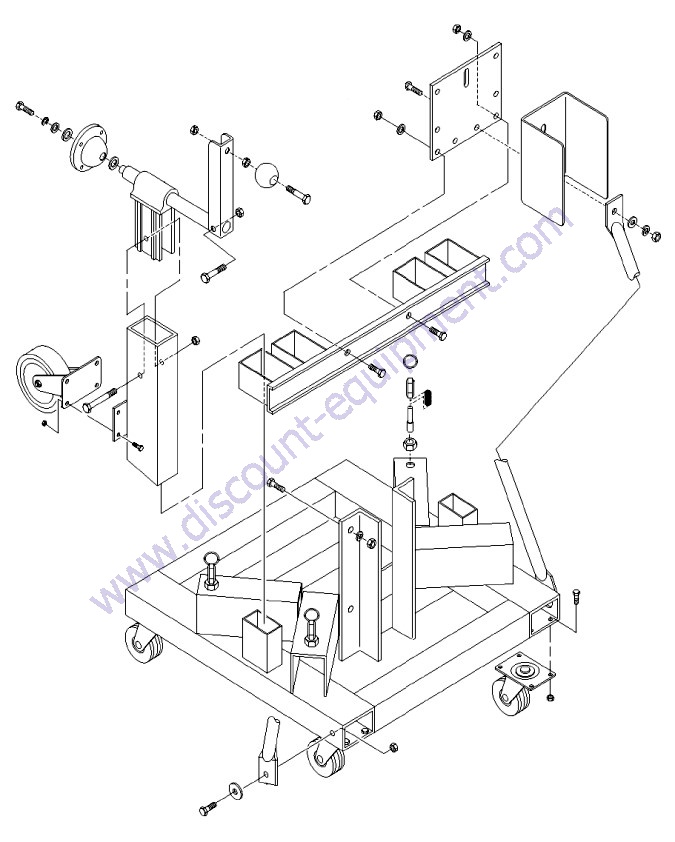

Genie ST-Series Base Components

Hover over the part on the breakdown below and click to see details
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

10107GT SCREW HHC 5/16-18 X .75 Genie ST-Series Material Lift

Your Price: $1.20

Click For Price and Specs

12275GT DECAL KIT SUPERTOWER Genie ST-Series Material Lift

Your Price: $481.97

Click For Price and Specs

18589GT LEVELING JACK ASSEMBLY 16" Genie ST-Series Material Lift

Your Price: $385.78

Click For Price and Specs

5166GT LOCK PIN PLUNGER SHORT ZINC Genie ST-Series Material Lift

Your Price: $1.61

Click For Price and Specs

5167GT SPRING LOCK PIN Genie ST-Series Material Lift

Your Price: $23.38

Click For Price and Specs

5193GT SPLIT RING 1.00 DIA Genie ST-Series Material Lift

Your Price: $1.22

Click For Price and Specs

5224GT SCREW HHC 3/8-16 X 2 Genie ST-Series Material Lift

Your Price: $1.33

Click For Price and Specs

6002GT NUT LP NYLOCK 5/16-18 Genie ST-Series Material Lift

Your Price: $1.14

Click For Price and Specs

6012GT NUT WELD 1/2-13 BLACK Genie ST-Series Material Lift

Your Price: $2.80

Click For Price and Specs

6021GT WASHER LOCK .375 Genie ST-Series Material Lift

Your Price: $1.11

Click For Price and Specs

6022GT NUT HEX 3/8-16 Genie ST-Series Material Lift

Your Price: $1.10

Click For Price and Specs

6061PGT WINCH MOUNT PLATE WELD-PAINTED Genie ST-Series Material Lift

Your Price: $819.46

Click For Price and Specs

6082GT HANDLE BALL KNOB Genie ST-Series Material Lift

Your Price: $27.50

Click For Price and Specs

6090GT SCREW HHC 1/4-20 X .75 Genie ST-Series Material Lift

Your Price: $1.25

Click For Price and Specs

6091GT NUT NYLOCK 1/4-20 Genie ST-Series Material Lift

Your Price: $1.17

Click For Price and Specs

6097GT WASHER FLAT USS 3/8" Y Genie ST-Series Material Lift

Your Price: $1.19

Click For Price and Specs

6100GT CONDUIT 39.375" MAST BRACE LEFT Genie ST-Series Material Lift

Your Price: $158.97

Click For Price and Specs

6101GT CONDUIT 39.375" MAST BRACE RIGHT Genie ST-Series Material Lift

Your Price: $158.97

Click For Price and Specs

6145GT SCREW HHC 1/4-20 X 1.5 Genie ST-Series Material Lift

Your Price: $1.41

Click For Price and Specs

6175GT SCREW HHC 3/8-16 X 1 Genie ST-Series Material Lift

Your Price: $1.35

Click For Price and Specs

6219GT CASTER PL SW 3.0 X 1.25 Genie ST-Series Material Lift

Your Price: $46.08

Click For Price and Specs

6277GT PIN LOCK SHORT W/PULL RING Genie ST-Series Material Lift

Your Price: $28.16

Click For Price and Specs

6282PGT OUTRIGGER STORAGE WELD-PAINTED Genie ST-Series Material Lift

Your Price: $765.68

Click For Price and Specs

6356GT WASHER LOCK .25 Genie ST-Series Material Lift

Your Price: $1.14

Click For Price and Specs

6519GT CASTER PL SW W/SB 5 X 1.25 Genie ST-Series Material Lift

Your Price: $63.70

Click For Price and Specs

6638GT WASHER FLAT USS 1/4" Y Genie ST-Series Material Lift

Your Price: $1.14

Click For Price and Specs

6706GT LEVELING JACK ROD 16" Genie ST-Series Material Lift

Your Price: $134.58

Click For Price and Specs

6786GT LOCK PIN HOUSING -.625-11UNC-2A Genie ST-Series Material Lift

Your Price: $10.41

Click For Price and Specs

6884GT SCREW HHC 1/4-20 X 2.5 Genie ST-Series Material Lift

Your Price: $1.31

Click For Price and Specs

6898GT WASHER SHIM .625 X 1.188X.064 Genie ST-Series Material Lift

Your Price: $1.34

Click For Price and Specs

7328GT BASE WELDMENT ST24 Genie ST-Series Material Lift

Your Price: $3,286.94

Click For Price and Specs

7332GT OUTRIGGER ASSEMBLY FRONT Genie ST-Series Material Lift

Your Price: $547.32

Click For Price and Specs

7334GT OUTRIGGER ASSEMBLY REAR Genie ST-Series Material Lift

Your Price: $909.41

Click For Price and Specs

8214GT HANDLE LEVELING JACK SHORT ZINC Genie ST-Series Material Lift

Your Price: $103.06

Click For Price and Specs
