You are here: Home > Genie Scissor / Boom / Material / Vertical / Platform Lifts > Genie Portable Material Lift Parts > Genie LL-Series Load Lifter Material Lift Parts > Genie Load Lifter Load Platform and Inner Frame Assembly

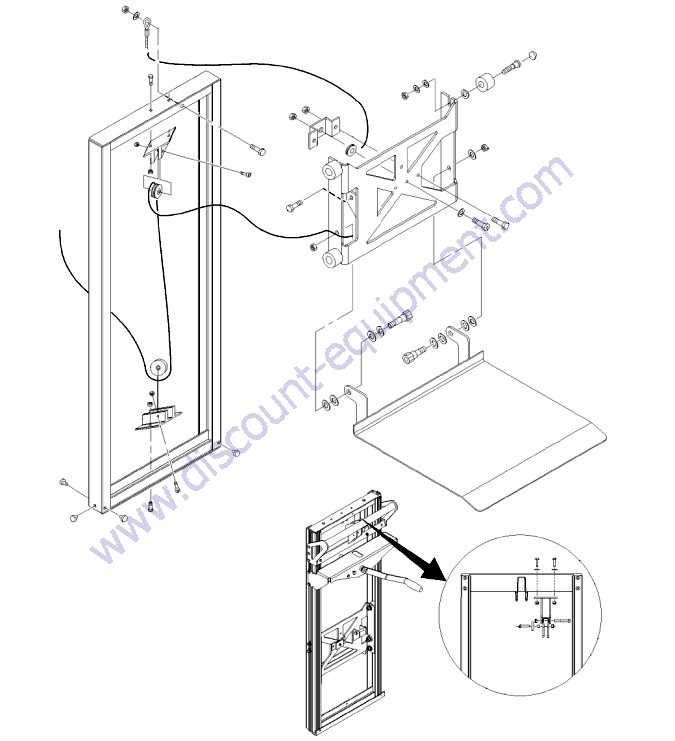

Genie Load Lifter Load Platform and Inner Frame Assembly


  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





109949GT

109949GT ROLLER LATCH RELEASE Genie Load Lifter Material Lift

Your Price: $10.56

Click For Price and Specs

11224GT

11224GT PULLEY WITH BUSHING Genie Load Lifter Material Lift

Your Price: $24.20

Click For Price and Specs

11335GT

11335GT SCREW SHS 3/8-16 X .5 Genie Load Lifter Material Lift

Your Price: $7.83

Click For Price and Specs

11890GT

11890GT GLIDE BUTTON SIDE .100 Genie Load Lifter Material Lift

Your Price: $8.49

Click For Price and Specs

11906GT

11906GT ROLLER NYLATRON 1.625" OD Genie Load Lifter Material Lift

Your Price: $17.45

Click For Price and Specs

11978GT

11978GT WASHER FLAT NYLON .515X.88X.093 Genie Load Lifter Material Lift

Your Price: $1.20

Click For Price and Specs

12013GT

12013GT SHIM .375 X .063 Genie Load Lifter Material Lift

Your Price: $2.03

Click For Price and Specs

124176GT

124176GT WELDMENT CARRIAGE Genie Load Lifter Material Lift

Your Price: $245.33

Click For Price and Specs

124903GT

124903GT WELDMENT LATCH BRACKET Genie Load Lifter Material Lift

Your Price: $93.21

Click For Price and Specs

124904GT

124904GT HOOK CARRIAGE LATCH Genie Load Lifter Material Lift

Your Price: $7.17

Click For Price and Specs

124984GT

124984GT SPRING TORSION 45 DEGREE Genie Load Lifter Material Lift

Your Price: $20.10

Click For Price and Specs

145292GT

145292GT INNER FRAME W/DECAL INDUSTRIAL Genie Load Lifter Material Lift

Your Price: $299.55

Click For Price and Specs

21279GT

21279GT BUTTON .800 OD X .281 Genie Load Lifter Material Lift

Your Price: $2.60

Click For Price and Specs

21280GT

21280GT BOLT ROLLER 3/8-24 X 1.69 ZINC Genie Load Lifter Material Lift

Your Price: $13.26

Click For Price and Specs

35185GT

35185GT WELDMENT PLATFORM Genie Load Lifter Material Lift

Your Price: $428.67

Click For Price and Specs

35200GT

35200GT BRACKET PULLEY MOUNT Genie Load Lifter Material Lift

Your Price: $18.75

Click For Price and Specs

35582GT

35582GT INNER FRAME W/ DECAL STANDARD Genie Load Lifter Material Lift

Your Price: $139.81

Click For Price and Specs

35732GT

35732GT SPACER TUBE 1/4 X 3/8 Genie Load Lifter Material Lift

Your Price: $1.67

Click For Price and Specs

38862GT

38862GT GUARD PULLEY Genie Load Lifter Material Lift

Your Price: $5.34

Click For Price and Specs

4828GT

4828GT NUT NYLOCK 3/8-16 Genie Load Lifter Material Lift

Your Price: $1.13

Click For Price and Specs

5365GT

5365GT NUT NYLOCK 10-24 Genie Load Lifter Material Lift

Your Price: $1.13

Click For Price and Specs

5397GT

5397GT WASHER FLAT USS 5/16" Y Genie Load Lifter Material Lift

Your Price: $1.13

Click For Price and Specs

6-5205-16GT

6-5205-16GT SCREW HHC 5/16-18 X 2.00 GR8 Genie Load Lifter Material Lift

Your Price: $1.53

Click For Price and Specs

6021GT

6021GT WASHER LOCK .375 Genie Load Lifter Material Lift

Your Price: $1.10

Click For Price and Specs

6052GT

6052GT WASHER SHIM .5 X .875 X .063 Genie Load Lifter Material Lift

Your Price: $1.18

Click For Price and Specs

6054GT

6054GT NUT HEX 3/8-24 Genie Load Lifter Material Lift

Your Price: $1.34

Click For Price and Specs

6090GT

6090GT SCREW HHC 1/4-20 X .75 Genie Load Lifter Material Lift

Your Price: $1.25

Click For Price and Specs

6091GT

6091GT NUT NYLOCK 1/4-20 Genie Load Lifter Material Lift

Your Price: $1.16

Click For Price and Specs

6097GT

6097GT WASHER FLAT USS 3/8" Y Genie Load Lifter Material Lift

Your Price: $1.18

Click For Price and Specs

6584GT

6584GT SCREW SHS 10-24 X .625 Genie Load Lifter Material Lift

Your Price: $2.10

Click For Price and Specs

6638GT

6638GT WASHER FLAT USS 1/4" Y Genie Load Lifter Material Lift

Your Price: $1.13

Click For Price and Specs

6708GT

6708GT SCREW HHC 3/8-16 X 2.25 Genie Load Lifter Material Lift

Your Price: $1.48

Click For Price and Specs

6782GT

6782GT NUT NYLOCK 5/16-18 Genie Load Lifter Material Lift

Your Price: $1.18

Click For Price and Specs

7267GT

7267GT WASHER SHIM .375 X.625X.016 AL Genie Load Lifter Material Lift

Your Price: $1.48

Click For Price and Specs

7713GT

7713GT NUT LP NYLOCK 3/8-16 Genie Load Lifter Material Lift

Your Price: $1.13

Click For Price and Specs

8915GT

8915GT SCREW HHC 1/4-20 X 1.25 Genie Load Lifter Material Lift

Your Price: $1.28

Click For Price and Specs

90337GT

90337GT BOELUBE Genie Load Lifter Material Lift

Your Price: $35.02

Click For Price and Specs
