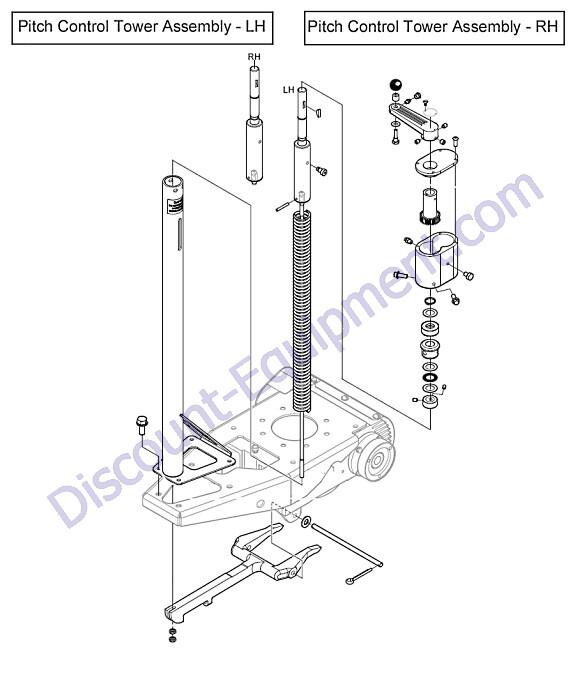

Multiquip Whiteman JWN24-Series Pitch Control Tower/Yoke Assembly


  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





0126

0126 KEY WOODRUFF #606 3/16 X 3/4 #9 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.36

Click For Price and Specs

0185

0185 SCREW SHS 3/8-16 X 3/8" NO PLATE Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.15

Click For Price and Specs

0683

0683 PIN COTTER 3/32D X 3/4" Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.17

Click For Price and Specs

10136

10136 WASHER FLAT SAE 3/8" Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.02

Click For Price and Specs

10382

10382 BOLT SHOULDER 3/8 X 3/8 LONG Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $6.48

Click For Price and Specs

10510

10510 SHAFT PITCH CONTROL RH Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $64.52

Click For Price and Specs

10511

10511 SHAFT PITCH CONTROL LH Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $76.46

Click For Price and Specs

10512

10512 RING SNAP TRUARC 5160-75 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.23

Click For Price and Specs

10721

10721 BLOCK SLIDE RH PITCH CONTROL TUBE Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $61.64

Click For Price and Specs

10722

10722 BLOCK SLIDE LH PITCH CONTROL TUBE Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $61.64

Click For Price and Specs

10723

10723 PIN SPIRAL 3/16 X 1-3/8 HD Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.33

Click For Price and Specs

1116

1116 NUT BRASS JAM 5/16-18 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.39

Click For Price and Specs

1162 A

1162 A CAP GREASE ZERK #2 YELLOW Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.31

Click For Price and Specs

1528

1528 SCREW SHS 1/4-20 X 5/16" HDP Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.34

Click For Price and Specs

1529

1529 GEAR DRIVE PITCH CONTROL Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $133.35

Click For Price and Specs

1604

1604 BEARING BALL THRUST E5 AETNA Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $57.00

Click For Price and Specs

1612

1612 BEARING TROWEL CONTROL Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $14.88

Click For Price and Specs

1615

1615 LEVER TROWEL ADJUSTMENT Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $70.96

Click For Price and Specs

1616

1616 BOLT SHOULDER .50 DIA X .469 X 3/8-16 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $23.30

Click For Price and Specs

1617

1617 LEVER TROWEL ASSEMBLY Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $134.72

Click For Price and Specs

1733

1733 WASHER 1/2 X 1/32 AN960-816L Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.15

Click For Price and Specs

2008

2008 CABLE TWIN PITCH 25.63" Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $75.44

Click For Price and Specs

20476

20476 SCREW HHC 1/4-28 X 3/8" Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.24

Click For Price and Specs

2156

2156 SPRING COMPRESSION 15/16" X 20-5/8" Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $30.90

Click For Price and Specs

2169

2169 BEARING THRUST TORR #NTA1220 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $17.48

Click For Price and Specs

2170

2170 BEARING RACE TORR #TRA1220 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $2.31

Click For Price and Specs

22021

22021 SCREW HEX FLANGE M8-1.25 X 20MM GR10.9 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $7.35

Click For Price and Specs

23037

23037 HOUSING PITCH CONTROL GEARBOX Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $127.10

Click For Price and Specs

23579

23579 PITCH CONTROL LH TOWER ASSEMBLY Multiquip Whiteman JWN24-Series Ride-On Trowel

Click For Price and Specs

23580

23580 PITCH CONTROL RH TOWER ASSEMBLY Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $431.87

Click For Price and Specs

23581

23581 TOWER W/A PITCH CONTROL LH Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $75.85

Click For Price and Specs

23582

23582 TOWER W/A PITCH CONTROL RH Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $89.93

Click For Price and Specs

2367

2367 COLLAR SET .75 X 1.25 X .56 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $15.73

Click For Price and Specs

2621

2621 FITTING GREASE ZERK STR 1/4-28 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.25

Click For Price and Specs

2649

2649 COVER PITCH CONTROL HOUSING RDRS Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $50.28

Click For Price and Specs

2737

2737 KNOB KIT Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $41.46

Click For Price and Specs

3231

3231 SPACER .75 DIA X .406 DIA X .688 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $12.33

Click For Price and Specs

36720

36720 SCREW HHFS 5/16-18 X 3/4" GR5 Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.39

Click For Price and Specs

4014

4014 SCREW 2-3/16" P-K TYPE U-DRIVE Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.15

Click For Price and Specs

4403

4403 KNOB ROUND 1-3/8 DIA X 3/8-16 BLACK Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $9.39

Click For Price and Specs

9027

9027 YOKE ARM Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $132.24

Click For Price and Specs

9028

9028 PIN YOKE Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $21.73

Click For Price and Specs

9191

9191 SCREW BHSC M5-0.8 X 16MM ZP Multiquip Whiteman JWN24-Series Ride-On Trowel

Your Price: $1.13

Click For Price and Specs
