Multiquip Whiteman HTN28KTCSL Fuel Assembly

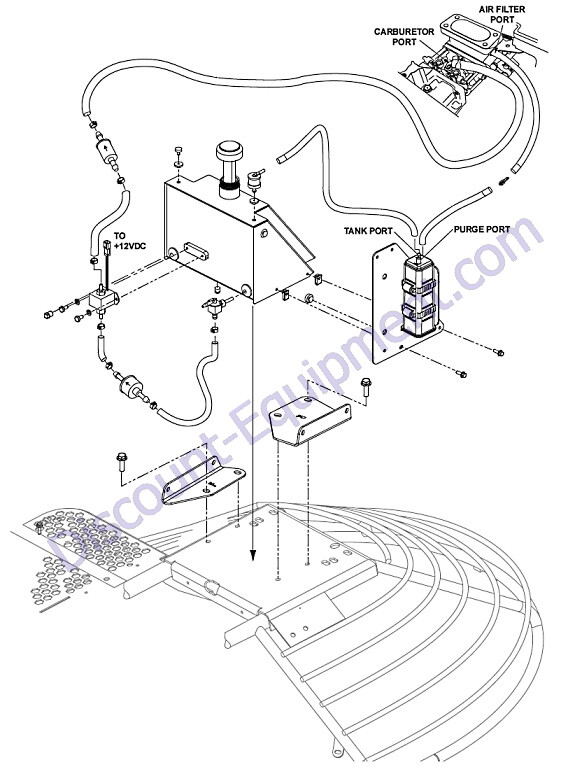

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





0181 B

0181 B WASHER LOCK 1/4 MED Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $1.04

Click For Price and Specs

11534

11534 NUT U-TYPE 1/4-20 Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $1.67

Click For Price and Specs

12277

12277 CLAMP HOSE WORM #36 Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $9.09

Click For Price and Specs

1579

1579 SCREW HHC 1/4-20 X 1/2 Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $1.05

Click For Price and Specs

16185

16185 FITTING PLUG 1/4MP SQ HD Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $1.25

Click For Price and Specs

21597

21597 BUMPER STEM 1" D X .5S X .31 Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $2.08

Click For Price and Specs

22068

22068 CLAMP STEPLESS EAR 1/4" HOSE Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $1.78

Click For Price and Specs

22081

22081 SHUTOFF VALVE 1/4 NPT 1/4" HOSE Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $29.14

Click For Price and Specs

22102

22102 BRACKET TANK FUEL FRONT Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $36.10

Click For Price and Specs

22103

22103 BRACKET TANK FUEL REAR Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $37.76

Click For Price and Specs

22106

22106 SCREW HHFS 3/8-16 x 1.25 ZINC Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $1.39

Click For Price and Specs

23507

23507 GROMMET ROLL OVER VALVE Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $2.34

Click For Price and Specs

23508

23508 VALVE ROLL OVER STD CP Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $22.06

Click For Price and Specs

23514

23514 CAP RATCHET WITH GAUGE 10-1/2" Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $73.36

Click For Price and Specs

23556

23556 FUEL TANK ASSEMBLY Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Click For Price and Specs

23557

23557 PLUG FUEL TANK VENT Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Click For Price and Specs

23593

23593 BRACKET CHARCOAL CANISTER Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $26.18

Click For Price and Specs

23873

23873 FUEL PUMP ASSEMBLY Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $190.01

Click For Price and Specs

23966

23966 FITTING STR BARB Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $1.99

Click For Price and Specs

45723

45723 (23505) CANISTER CARBON 390CC Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $38.90

Click For Price and Specs

49048

49048 SCREW HHFS 1/4-20 X 3/4" GR5 Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $1.16

Click For Price and Specs

60004

60004 FUEL HOSE .187" DIA 12" LENGTH Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $10.08

Click For Price and Specs

60013

60013 FUEL HOSE .250" DIA 7" LENGTH Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $9.06

Click For Price and Specs

60013

60013 HOSE FUEL .250" DIA 5-1/4" LENGTH Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $9.06

Click For Price and Specs

60028

60028 FUEL HOSE .312" DIA 17-1/2" LENGTH Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $9.87

Click For Price and Specs

60028

60028 FUEL HOSE .312" DIA 3-1/2" LENGTH Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $9.87

Click For Price and Specs

60028

60028 FUEL HOSE .312" DIA 34-1/2" LENGTH Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $9.87

Click For Price and Specs

691035

691035 FILTER FUEL 40 MICRON Multiquip Whiteman HTN27K HTN28 Ride-On Trowel

Your Price: $18.13

Click For Price and Specs

845125

845125 FILTER FUEL 20 MICRON Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $19.53

Click For Price and Specs

911329

911329 FITTING PLUG 3/8 MP MAGNET Multiquip Whiteman HTN27K HTN28K Ride-On Trowel

Your Price: $11.13

Click For Price and Specs
