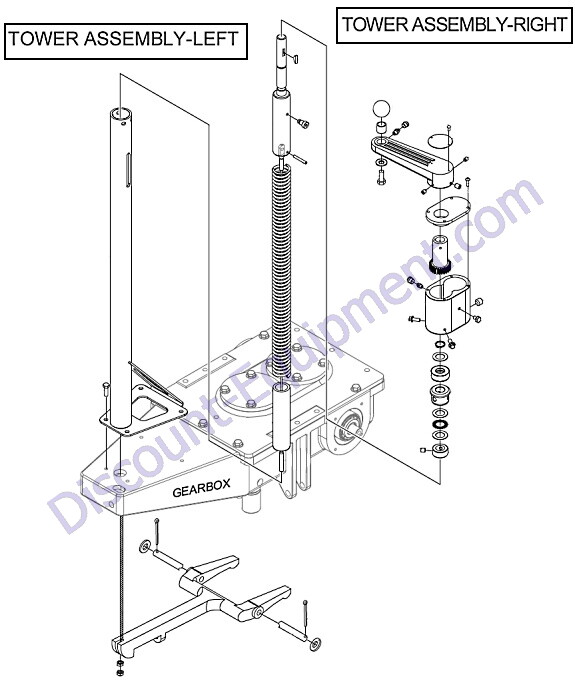

Multiquip Whiteman HHNG5 Pitch Control Tower Assembly


  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





0126

0126 KEY WOODRUFF #606 3/16" X 3/4" #9 Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.50

Click For Price and Specs

0183

0183 PIN COTTER 1/8"D X 1-1/4" Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.03

Click For Price and Specs

0185

0185 SCREW SHS 3/8"-16 X 3/8" NO PLATE Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.21

Click For Price and Specs

0448

0448 WASHER FLAT SAE 7/16" Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.21

Click For Price and Specs

10382

10382 BOLT SHOULDER 3/8" X 3/8" LONG Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $3.05

Click For Price and Specs

10510

10510 SHAFT PITCH CONTROL RIGHT SIDE Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $45.62

Click For Price and Specs

10511

10511 SHAFT PITCH CONTROL LEFT SIDE Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $61.78

Click For Price and Specs

10512

10512 RING SNAP TRUARC 5160-75 Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.32

Click For Price and Specs

10721

10721 SLIDE BLOCK PITCH CONTROL RIGHT SIDE Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $43.59

Click For Price and Specs

10722

10722 SLIDE BLOCK PITCH CONTROL LEFT SIDE Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $43.59

Click For Price and Specs

10723

10723 PIN SPIRAL 3/16" X 1-3/8" HD Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.47

Click For Price and Specs

1116

1116 NUT BRASS JAM 5/16"-18 Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.55

Click For Price and Specs

11499

11499 YOKE ARM PITCH Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $72.56

Click For Price and Specs

1162 A

1162 A CAP GREASE ZERK Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.43

Click For Price and Specs

11648

11648 SHAFT YOKE PIVOT Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $7.09

Click For Price and Specs

11649

11649 SPACER PITCH SPRING Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $10.65

Click For Price and Specs

12460

12460 CABLE PITCH CONTROL Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $53.61

Click For Price and Specs

1528

1528 SCREW SHS 1/4"-20 X 5/16" HDP Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.49

Click For Price and Specs

1529

1529 GEAR DRIVE PITCH CONTROL Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $107.77

Click For Price and Specs

1604

1604 BEARING BALL THRUST E5 AETNA Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $40.30

Click For Price and Specs

1612

1612 BEARING ALUMINUM PITCH CONTROL Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $7.01

Click For Price and Specs

1615

1615 LEVER TROWEL ADJUSTMENT Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $50.18

Click For Price and Specs

1616

1616 BOLT SHOULDER .5 DIA X .469 X 3/8"-16 Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $13.18

Click For Price and Specs

1617

1617 TROWEL ADJUSTMENT LEVER ASSEMBLY Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $108.87

Click For Price and Specs

17109

17109 SCREW SHSCU M8-1.25 X 8MM Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.16

Click For Price and Specs

1733

1733 WASHER 1/2" X 1/32" AN960-816L Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.21

Click For Price and Specs

20476

20476 SCREW HHC 1/4"-28 X 3/8" Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.33

Click For Price and Specs

2156

2156 SPRING HANDLE BALANCE COIL TWN RDR Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $21.85

Click For Price and Specs

2169

2169 BEARING THRUST TORR #NTA1220 Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $9.89

Click For Price and Specs

2170

2170 BEARING RACE TORR. #TRA1220 Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $1.85

Click For Price and Specs

22021

22021 SCREW HHFS M8-1.25 X 20MM TENSILOK PATCH Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $3.47

Click For Price and Specs

2300

2300 DECAL PITCH RIGHT SIDE Multiquip Whiteman HHNG5 Ride-On Trowel

Click For Price and Specs

23037

23037 HOUSING PITCH CONTROL Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $102.72

Click For Price and Specs

2332

2332 DECAL PITCH LEFT SIDE Multiquip Whiteman HHNG5 Ride-On Trowel

Click For Price and Specs

2367

2367 COLLAR SET .75 X 1.25 X .56 Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $8.90

Click For Price and Specs

23850

23850 TOWER PITCH CONTROL RIGHT SIDE Multiquip Whiteman HHNG5 Ride-On Trowel

Click For Price and Specs

23850-SK

23850-SK TOWER ASSEMBLY RH Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $573.84

Click For Price and Specs

23851

23851 TOWER PITCH CONTROL LEFT SIDE Multiquip Whiteman HHNG5 Ride-On Trowel

Click For Price and Specs

23851-SK

23851-SK TOWER ASSEMBLY LH Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $573.84

Click For Price and Specs

2621

2621 FITTING GREASE ZERK STRAIGHT 1/4-28 Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.36

Click For Price and Specs

2649

2649 COVER PITCH CONTROL HOUSING Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $35.55

Click For Price and Specs

2737

2737 KNOB KIT Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $29.31

Click For Price and Specs

3231

3231 SPACER .75 DIA X .406 DIA X .688 Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $5.81

Click For Price and Specs

4014

4014 SCREW #2 3/16" P-K TYPE U-DRIVE Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.21

Click For Price and Specs

4403

4403 KNOB ROUND 1-3/8" DIA X 3/8"-16 BLACK Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $4.43

Click For Price and Specs

9091

9091 SCREW HHFS 5/16"-18 X 1" GRD 5 Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.32

Click For Price and Specs

9191

9191 SCREW BHSC M5-0.8 X 16MM Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.18

Click For Price and Specs

925437

925437 SCREW SHS CP 5/16"-18 X 3/8" Multiquip Whiteman HHNG5 Ride-On Trowel

Your Price: $0.58

Click For Price and Specs
