Multiquip Whiteman HDA-Series Engine and Clutch Assembly - 11HP

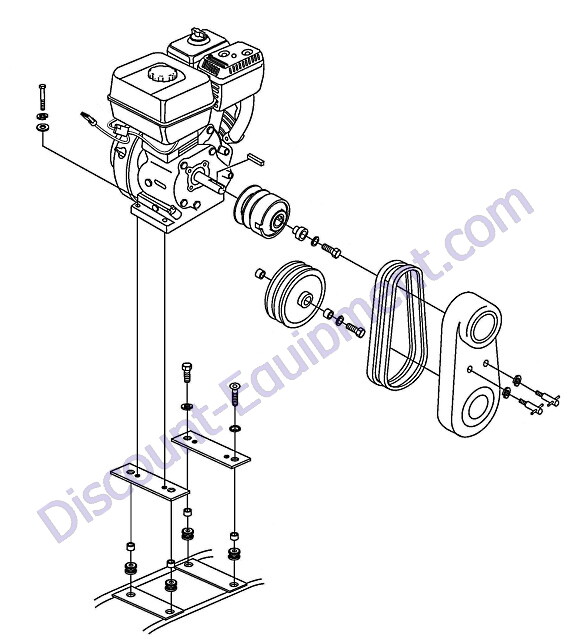

Hover over the part on the breakdown below and click to see details
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

0166 A LOCK WASHER 3/8" Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.12

Click For Price and Specs

0261 BELT A31 GATES HPII Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $25.96

Click For Price and Specs

0300 B FLAT WASHER 5/16" Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.05

Click For Price and Specs

0310 SQUARE KEY 1/4" X 1/4" X 1-1/2" Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.59

Click For Price and Specs

0478 SCREW HHC 3/8"-24 X 2-1/4" Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.64

Click For Price and Specs

10222 GUARD BELT Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $77.12

Click For Price and Specs

1245 BUSHING GUARD RING Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $7.11

Click For Price and Specs

1247 GROMMET 1/4" X 7/8" ID X 1-5/8"OD Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $2.54

Click For Price and Specs

1313 SCREW FHSC 3/8"-24 X 3/4" PLAIN Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.29

Click For Price and Specs

1388 ENGINE HONDA GX340 11HP Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $2,600.39

Click For Price and Specs

1391 HHCS 5/16"-24 X 1-1/2" Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $2.02

Click For Price and Specs

1475 CONNECTOR SPLICE TAP Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.78

Click For Price and Specs

1480 WASHER CS EXT SHKP 3/8" Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.20

Click For Price and Specs

1488 WIRE SAFETY SWITCH Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $9.39

Click For Price and Specs

1951 PLATE FRONT 11HP HONDA Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $54.06

Click For Price and Specs

20982 SCREW FSCS 3/8"-16 X 1-1/2" PLTD Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.44

Click For Price and Specs

2361 SPACER 1-1/4" X .878 X .437L Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $26.20

Click For Price and Specs

2362 SPACER 1-1/4" X .878 X .375L Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $24.30

Click For Price and Specs

2480 CLUTCH 4" P-G 35 DEGREE 1" Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $759.53

Click For Price and Specs

2724 T-BOLT Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $31.42

Click For Price and Specs

9119 PULLEY HD48 2AK54 X 7/8" 5.25 OD Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $127.77

Click For Price and Specs

9120 RETAINER DRIVEN PULLEY Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $13.56

Click For Price and Specs

9123 RETAINER CLUTCH Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $43.76

Click For Price and Specs

9154 SCREW HHC 3/8"-16 X 1-3/4" Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.43

Click For Price and Specs

EM923025 (10136) WASHER FLAT 3/8" SAE Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.15

Click For Price and Specs

EM923343 (0161 C) LOCK WASHER 5/16" Multiquip Whiteman HDA Series Walk-Behind Trowel

Your Price: $1.15

Click For Price and Specs
