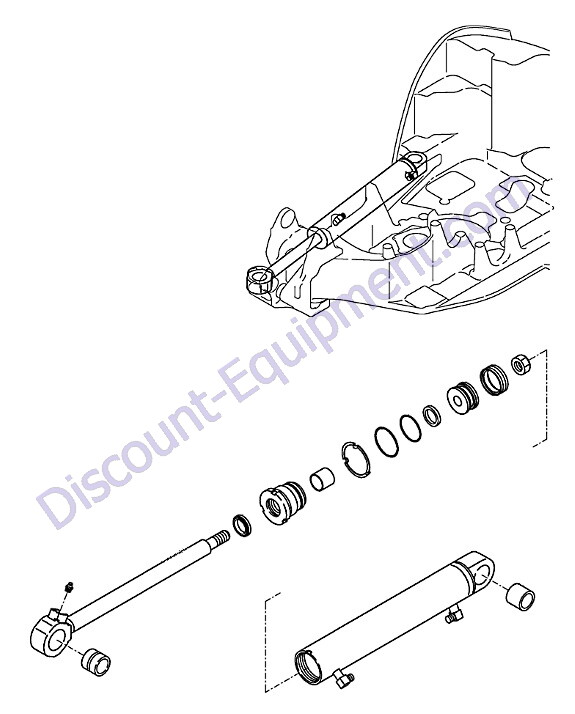

Yanmar SV08-1A Swing Cylinder

Hover over the part on the breakdown below and click to see details
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

172141-72580 NUT M20 Yanmar SV08-1A Excavator

Click For Price and Specs

172173-72550 LOCK WASHER 55 Yanmar SV08-1A Excavator

Click For Price and Specs

172186-72910 BUSH Yanmar SV08-1A Excavator

Click For Price and Specs

172186-72911 BUSH 30-35 Yanmar SV08-1A Excavator

Click For Price and Specs

172446-72801-1 SWING CYLINDER ASSEMBLY Yanmar SV08-1A Excavator

Click For Price and Specs

172446-72801-N CYLINDER SWING Yanmar SV08-1A Excavator

Click For Price and Specs

172446-72820-1 SWING TUBE ASSEMBLY Yanmar SV08-1A Excavator

Click For Price and Specs

172446-72820-N SWING TUBE ASSEMBLY Yanmar SV08-1A Excavator

Click For Price and Specs

172446-72860 SWING ROD ASSEMBLY Yanmar SV08-1A Excavator

Click For Price and Specs

172449-72321 GASKET ASSEMBLY RGU55 Yanmar SV08-1A Excavator

Click For Price and Specs

172449-72560 HEAD CMP 55 30 Yanmar SV08-1A Excavator

Click For Price and Specs

172449-72681 PISTON 55 20-28 Yanmar SV08-1A Excavator

Click For Price and Specs

172A64-72040 HEAD SEAL SET 55 30 Yanmar SV08-1A Excavator

Click For Price and Specs

24550-030300 BUSH 30X30 Yanmar SV08-1A Excavator

Click For Price and Specs

24761-020000 NIPPLE GREASE PT1/8 Yanmar SV08-1A Excavator

Click For Price and Specs

933125-05300 BUSH PIN 30 34.5B Yanmar SV08-1A Excavator

Click For Price and Specs
