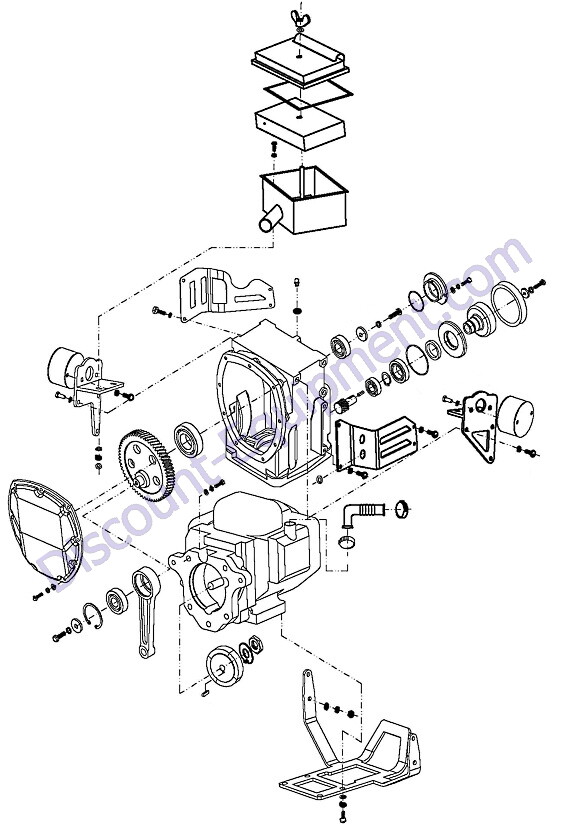

RAM-70H Gearbox Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





20102054

20102054 BOLT M6X20 TK RAM-70H Rammer

Click For Price and Specs

20102101

20102101 BOLT M8X20 TK RAM-70H Rammer

Click For Price and Specs

20102102

20102102 BOLT M8X25 TK RAM-70H Rammer

Click For Price and Specs

20102105

20102105 BOLT M8X30 TK RAM-70H Rammer

Click For Price and Specs

20102156

20102156 BOLT M10X40 TK RAM-70H Rammer

Click For Price and Specs

20405002

20405002 LOCK NUT M6 TK RAM-70H Rammer

Click For Price and Specs

20405004

20405004 HEX LOCK NUT M8 TK RAM-70H Rammer

Click For Price and Specs

20407002

20407002 HEX THIN NUT TK RAM-70H Rammer

Click For Price and Specs

20422001

20422001 BUTTERFLY NUT M8 X 1.25 A-TYPE TK RAM-70H Rammer

Click For Price and Specs

20501005

20501005 FLAT WASHER M6 TK RAM-70H Rammer

Click For Price and Specs

20501007

20501007 FLAT WASHER M8 TK RAM-70H Rammer

Click For Price and Specs

20501009

20501009 FLAT WASHER M10 TK RAM-70H Rammer

Click For Price and Specs

20509004

20509004 SPRING WASHER M6 TK RAM-70H Rammer

Click For Price and Specs

20509006

20509006 SPRING WASHER M8 TK RAM-70H Rammer

Click For Price and Specs

20509008

20509008 SPRING WASHER M10 TK RAM-70H Rammer

Click For Price and Specs

20601014

20601014 CIRCLIP SHAFT TK RAM-70H Rammer

Click For Price and Specs

20602008

20602008 CIRCLIP INTERNAL TK RAM-70H Rammer

Click For Price and Specs

20901101

20901101 FLAT KEY 6X20 TK RAM-70H Rammer

Click For Price and Specs

20902001

20902001 WOODRUFF KEY 4X5 TK RAM-70H Rammer

Click For Price and Specs

21001052

21001052 BEARING 6007Z TK RAM-70H Rammer

Click For Price and Specs

21001059

21001059 BEARING 6204 TK RAM-70H Rammer

Click For Price and Specs

21001062

21001062 BEARING 6207 TK RAM-70H Rammer

Click For Price and Specs

21001066

21001066 BEARING 6304 TK RAM-70H Rammer

Click For Price and Specs

21101004

21101004 O-RING 43.7 X 1.8 TK RAM-70H Rammer

Click For Price and Specs

21101100

21101100 O-RING 95 X 3.1 TK RAM-70H Rammer

Click For Price and Specs

21106002

21106002 LIP-TYPE PACKING 40X52X8-FB TK RAM-70H Rammer

Click For Price and Specs

21110001

21110001 STRAIGHT THROUGH TYPE PRESSURE OIL FILLING CUP M6 TK RAM-70H Rammer

Click For Price and Specs

40206075

40206075 LEFT BRACKET TK RAM-70H Rammer

Click For Price and Specs

40206076

40206076 RIGHT BRACKET TK RAM-70H Rammer

Click For Price and Specs

40207016

40207016 PROTECTIVE FRAME LEFT TK RAM-70H Rammer

Click For Price and Specs

40207017

40207017 PROTECTIVE FRAME RIGHT TK RAM-70H Rammer

Click For Price and Specs

40207018

40207018 PROTECTIVE FRAME BACK TK RAM-70H Rammer

Click For Price and Specs

40407001

40407001 CONNECTING ROD TK RAM-70H Rammer

Click For Price and Specs

40501001

40501001 LEFT BRACKET TK RAM-70H Rammer

Click For Price and Specs

40502001

40502001 3HP GEAR BOX BEARING COVER TK RAM-70H Rammer

Click For Price and Specs

40504001

40504001 PINION SHAFT END GASKET TK RAM-70H Rammer

Click For Price and Specs

40504002

40504002 CRANK GEAR SHAFT END GASKET TK RAM-70H Rammer

Click For Price and Specs

40504003

40504003 CONNECTING ROD SHAFT END GASKET TK RAM-70H Rammer

Click For Price and Specs

40504004

40504004 NYLON SPACER TK RAM-70H Rammer

Click For Price and Specs

40504008

40504008 LOCK WASHER TK RAM-70H Rammer

Click For Price and Specs

40504070

40504070 HONDA LOCATING SLEEVE TK RAM-70H Rammer

Click For Price and Specs

40506027

40506027 HUB TK RAM-70H Rammer

Click For Price and Specs

40601002

40601002 ROBIN GEAR CRANK TK RAM-70H Rammer

Click For Price and Specs

40601002-1

40601002-1 HONDA GEAR CRANK TK RAM-70H Rammer

Click For Price and Specs

40602002

40602002 PINION SHAFT 4.0 TK RAM-70H Rammer

Click For Price and Specs

40901012

40901012 GEAR BOX TK RAM-70H Rammer

Click For Price and Specs

40902001

40902001 AIR FILTER SHELL TK RAM-70H Rammer

Click For Price and Specs

40902002

40902002 AIR FILTER COVER TK RAM-70H Rammer

Click For Price and Specs

40903004

40903004 GEAR BOX COVER TK RAM-70H Rammer

Click For Price and Specs

41201002

41201002 SHOCK ABSORBER ASSEMBLY TK RAM-70H Rammer

Click For Price and Specs

41204003

41204003 SEALING TAPE TK RAM-70H Rammer

Click For Price and Specs

41204011

41204011 3HP AIR INLET PIPE TK RAM-70H Rammer

Click For Price and Specs

41401075

41401075 HONDA ENGINE GX120 TK RAM-70H Rammer

Click For Price and Specs

41402005

41402005 AIR FILTER TK RAM-70H Rammer

Click For Price and Specs

41404001

41404001 PROTECTIVE RING TK RAM-70H Rammer

Click For Price and Specs

41406012

41406012 CLAMP 20-32 WIDTH-9 TK RAM-70H Rammer

Click For Price and Specs

50101011

50101011 CLUTCH ASSEMBLY TK RAM-70H Rammer

Click For Price and Specs
