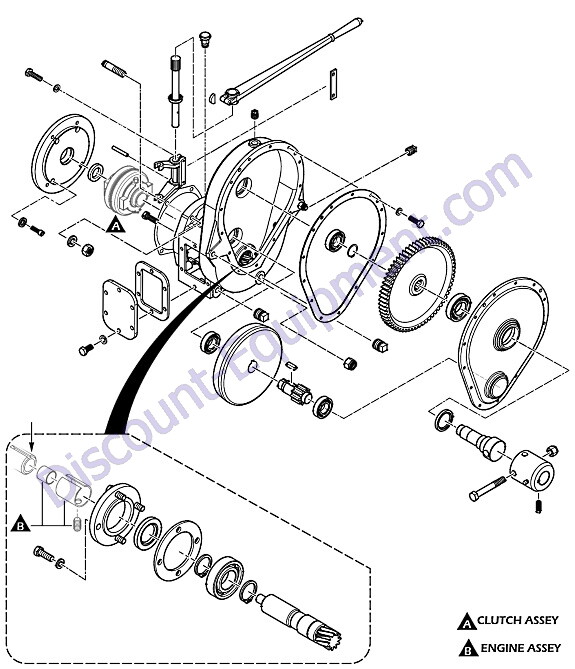

TK MM12G Transmission Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





1729

1729 ROLL PIN TK MM12G Mortar Mixer

Click For Price and Specs

TK010062

TK010062 SQUARE KEY 3/8" X 3/8" TK MM12G Mortar Mixer

Click For Price and Specs

TK0202

TK0202 HEX HEAD CAP SCREW 5/16-18" X 1" TK MM12G Mortar Mixer

Click For Price and Specs

TK13377

TK13377 OIL SEAL TK MM12G Mortar Mixer

Your Price: $24.00

Click For Price and Specs

TK200255

TK200255 PADDLE SHAFT CONNECTOR TK MM12G Mortar Mixer

Click For Price and Specs

TK203038

TK203038 ADAPTER PLATE KIT HONDA TK MM12G Mortar Mixer

Click For Price and Specs

TK300999

TK300999 GEARBOX HOUSING STUD TK MM12G Mortar Mixer

Click For Price and Specs

TK511064

TK511064 SQUARE HEAD PLUG 1/2" TK MM12G Mortar Mixer

Click For Price and Specs

TK511233

TK511233 BREATHER TK MM12G Mortar Mixer

Click For Price and Specs

TK600000

TK600000 COMPLETE TRANSMISSION ASSEMBLY TK MM12G Mortar Mixer

Click For Price and Specs

TK600012

TK600012 TRANSMISSION HOUSING TK MM12G Mortar Mixer

Click For Price and Specs

TK600014

TK600014 TRANSMISSION COVER TK MM12G Mortar Mixer

Click For Price and Specs

TK600015

TK600015 OUTPUT SHAFT TK MM12G Mortar Mixer

Click For Price and Specs

TK600016

TK600016 INPUT SHAFT TK MM12G Mortar Mixer

Click For Price and Specs

TK600018

TK600018 SHIFTER LEVER TK MM12G Mortar Mixer

Click For Price and Specs

TK600020

TK600020 INTERNAL GEAR TK MM12G Mortar Mixer

Click For Price and Specs

TK600021

TK600021 TRANSMISSION GASKET COVER TK MM12G Mortar Mixer

Click For Price and Specs

TK600022

TK600022 GASKET RETAINER TK MM12G Mortar Mixer

Click For Price and Specs

TK600023

TK600023 BEARING RETAINER TK MM12G Mortar Mixer

Click For Price and Specs

TK600024

TK600024 LOCK PLATE TK MM12G Mortar Mixer

Click For Price and Specs

TK600026

TK600026 SHIFTER COVER GASKET TK MM12G Mortar Mixer

Click For Price and Specs

TK600028

TK600028 CLUTCH YOKE TK MM12G Mortar Mixer

Click For Price and Specs

TK600029

TK600029 SHIFTER SHAFT TK MM12G Mortar Mixer

Click For Price and Specs

TK600131

TK600131 OUTPUT DRIVE PINION TK MM12G Mortar Mixer

Click For Price and Specs

TK600133

TK600133 OUTPUT SHAFT GEAR TK MM12G Mortar Mixer

Click For Price and Specs

TK801965

TK801965 GASKET TK MM12G Mortar Mixer

Your Price: $15.90

Click For Price and Specs

TK902091

TK902091 BALL BEARING TK MM12G Mortar Mixer

Click For Price and Specs

TK902161

TK902161 BALL BEARING TK MM12G Mortar Mixer

Click For Price and Specs

TK911329

TK911329 SQUARE PIPE PLUG 3/8" TK MM12G Mortar Mixer

Click For Price and Specs

TK914005

TK914005 OIL SEAL TK MM12G Mortar Mixer

Click For Price and Specs

TK914207

TK914207 OIL SEAL TK MM12G Mortar Mixer

Click For Price and Specs

TK914209

TK914209 OIL SEAL TK MM12G Mortar Mixer

Click For Price and Specs

TK922356

TK922356 GEARBOX CASE BREATHER TK MM12G Mortar Mixer

Click For Price and Specs

TK926036

TK926036 SNAP RING TK MM12G Mortar Mixer

Click For Price and Specs

TK927048

TK927048 KEY WOODRUFF TK MM12G Mortar Mixer

Click For Price and Specs

TK931233

TK931233 COVER PLATE TK MM12G Mortar Mixer

Click For Price and Specs

TK961019

TK961019 SQUARE HHS 3/8" X 1-1/4" TK MM12G Mortar Mixer

Click For Price and Specs

TK963157

TK963157 BOLT 5/8" G5 SHEAR PIN TK MM12G Mortar Mixer

Click For Price and Specs

TK969085

TK969085 NUT NYLOCK 5/8" TK MM12G Mortar Mixer

Click For Price and Specs
