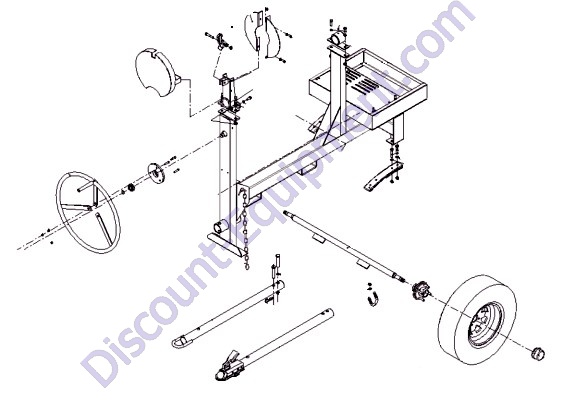

TK Equipment CM9P Frame Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





0000BA6205

0000BA6205 BALL BEARING TK Equipment CM9P Concrete Mixer

Your Price: $30.00

Click For Price and Specs

0000CO01RD

0000CO01RD WHEEL & TIRE ASSEMBLY TK Equipment CM9P Concrete Mixer

Your Price: $120.75

Click For Price and Specs

0000CO03LZ

0000CO03LZ PINTLE HITCH VERTICAL HOLE TK Equipment CM9P Concrete Mixer

Your Price: $84.00

Click For Price and Specs

0000CO04LZ

0000CO04LZ 2" BALL HITCH VERTICAL HOLE TK Equipment CM9P Concrete Mixer

Your Price: $136.50

Click For Price and Specs

0000CR01LZ

0000CR01LZ LOCK PIN 3/4" TK Equipment CM9P Concrete Mixer

Your Price: $15.00

Click For Price and Specs

0000GRH200

0000GRH200 GREASE FITTING ST 1/8 NPT TK Equipment CM9P Concrete Mixer

Your Price: $5.50

Click For Price and Specs

0000RF03CH

0000RF03CH SET AXLE LEAF SPRINGS TK Equipment CM9P Concrete Mixer

Your Price: $250.00

Click For Price and Specs

0000RF10RD

0000RF10RD DUST CAP 1.98" (NEW STYLE) TK Equipment CM9P Concrete Mixer

Your Price: $14.40

Click For Price and Specs

0100FG01FR

0100FG01FR STEERING WHEEL LOCK PIN BREAK TK Equipment CM9P Concrete Mixer

Your Price: $9.00

Click For Price and Specs

0100SC01FR

0100SC01FR STEERING WHEEL BRAKE TK Equipment CM9P Concrete Mixer

Your Price: $60.00

Click For Price and Specs

0101FG012H

0101FG012H CONTROL HANDLE BLOCK 5-15/16 E.D. X 1-1/4 TK Equipment CM9P Concrete Mixer

Your Price: $36.00

Click For Price and Specs

0103SC01VO

0103SC01VO STEERING WHEEL HANDLE W/ ROTABLE HANDLE TK Equipment CM9P Concrete Mixer

Your Price: $70.00

Click For Price and Specs

0111SR01LZ

0111SR01LZ COTTER PIN 3/6" TK Equipment CM9P Concrete Mixer

Your Price: $4.65

Click For Price and Specs

0113CO01CH

0113CO01CH FRAME T-TYPE TK Equipment CM9P Concrete Mixer

Your Price: $1,500.00

Click For Price and Specs

0113CO01PT

0113CO01PT DRUM YOKE PILLOW BLOCK TK Equipment CM9P Concrete Mixer

Your Price: $30.00

Click For Price and Specs

0113LA01YU

0113LA01YU CONTROL HANDLE GEAR GUARD REAR TK Equipment CM9P Concrete Mixer

Your Price: $35.00

Click For Price and Specs

0130SC02RD

0130SC02RD AXLE ASSEMBLY INCLUDES HUBS TK Equipment CM9P Concrete Mixer

Your Price: $200.00

Click For Price and Specs

0170CO01GF

0170CO01GF CONTROL HANDLE SAFETY GEAR GUARD TK Equipment CM9P Concrete Mixer

Your Price: $42.00

Click For Price and Specs

0170CO03CH

0170CO03CH U-CLAMP TK Equipment CM9P Concrete Mixer

Your Price: $15.00

Click For Price and Specs

0200KI03RD

0200KI03RD WHEEL HUB and DUST CAP (NEW STYLE) TK Equipment CM9P Concrete Mixer

Your Price: $78.75

Click For Price and Specs

CAD3516GAL

CAD3516GAL 5/16 SAFETY CHAIN W/ OVAL SNAPS TK Equipment CM9P Concrete Mixer

Your Price: $50.00

Click For Price and Specs

RNRX012GAL

RNRX012GAL SPRING WASHER 1/2" TK Equipment CM9P Concrete Mixer

Your Price: $4.65

Click For Price and Specs

RNRX034GAL

RNRX034GAL SPRING WASHER 3/4" TK Equipment CM9P Concrete Mixer

Your Price: $3.00

Click For Price and Specs

RNRX038GAL

RNRX038GAL LOCK WASHER 3/8" TK Equipment CM9P Concrete Mixer

Your Price: $4.65

Click For Price and Specs

SM00156EXT

SM00156EXT RETAINING OMEGA RING 1-15/16" TK Equipment CM9P Concrete Mixer

Your Price: $11.64

Click For Price and Specs

TCCN012GAL

TCCN012GAL HEX LOCK NUT 1/2" TK Equipment CM9P Concrete Mixer

Your Price: $4.65

Click For Price and Specs

TCCS012GAL

TCCS012GAL HEX LOCK NUT 1/2" TK Equipment CM9P Concrete Mixer

Your Price: $4.75

Click For Price and Specs

TCCS038GAL

TCCS038GAL HEX LOCK NUT 3/8" TK Equipment CM9P Concrete Mixer

Your Price: $4.75

Click For Price and Specs

TCFN034GAL

TCFN034GAL HEX NUT TK Equipment CM9P Concrete Mixer

Your Price: $9.00

Click For Price and Specs

TOCD012112

TOCD012112 HEX BOLT HD GR5 1/2" X 1-1/2" TK Equipment CM9P Concrete Mixer

Your Price: $4.75

Click For Price and Specs

TOCD012212

TOCD012212 HEX BOLT HD 1/2" X 2-1/2" TK Equipment CM9P Concrete Mixer

Your Price: $4.75

Click For Price and Specs

TOCD038100

TOCD038100 HEX BOLT 3/8 TK Equipment CM9P Concrete Mixer

Your Price: $4.75

Click For Price and Specs

TOCD038112

TOCD038112 HEX BOLT 3/8" X 1-1/2" TK Equipment CM9P Concrete Mixer

Your Price: $4.75

Click For Price and Specs

TOFD034312

TOFD034312 HEX HEAD SCREW 3/4" X 3-1/2" TK Equipment CM9P Concrete Mixer

Your Price: $3.00

Click For Price and Specs
