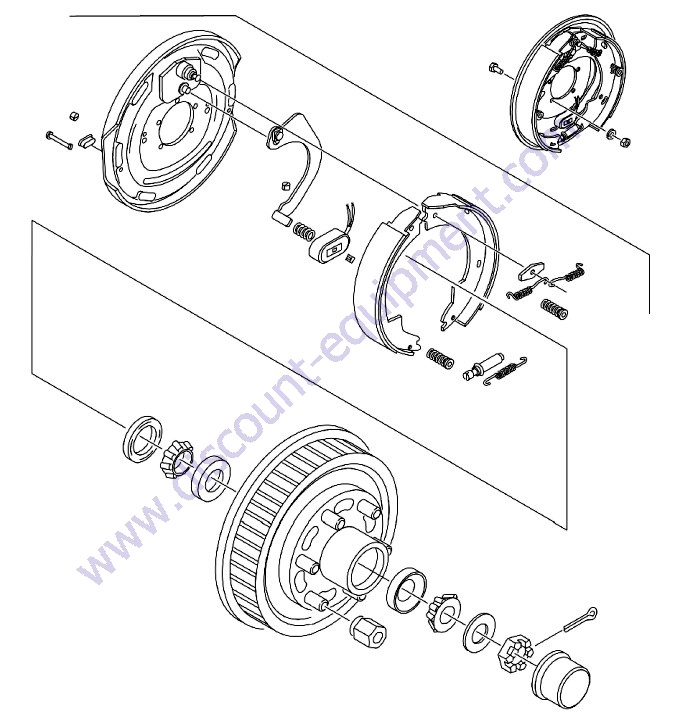

Triple-L Trailer Electric Brake Installations


  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part
  • See the Parts Manual for more information




0651610

0651610 Bolt 3/8in-24NF x 1-1/4in Triple-L Trailers

Your Price: $2.93

Click For Price and Specs

70003756

70003756 Wheel Bolt 2.65in Length Triple-L Trailers

Your Price: $8.16

Click For Price and Specs

70118

70118 Electric Brake Assembly Right Side Triple-L Trailers

Your Price: $432.42

Click For Price and Specs

70119

70119 Electric Brake Assembly Left Side Triple-L Trailers

Your Price: $449.70

Click For Price and Specs

70132

70132 Brake Shoe Assembly Triple-L Trailers

Your Price: $175.68

Click For Price and Specs

7026313

7026313 Lugnut Triple-L Trailers

Your Price: $2.58

Click For Price and Specs

7026383

7026383 Cap Brake 8-Lug Drum Triple-L Trailers

Your Price: $14.07

Click For Price and Specs

7026384

7026384 Cone Inner Triple-L Trailers

Your Price: $50.50

Click For Price and Specs

7026385

7026385 Cup Inner Triple-L Trailers

Your Price: $23.75

Click For Price and Specs

7026386

7026386 Cup Outer 8-Lug Drum Triple-L Trailers

Your Price: $23.05

Click For Price and Specs

7026387

7026387 Cone Outer 8-Lug Drum Triple-L Trailers

Your Price: $39.02

Click For Price and Specs

7026389

7026389 O-Ring Triple-L Trailers

Your Price: $2.77

Click For Price and Specs

7026390

7026390 Wheel Bolt 2in Length Triple-L Trailers

Your Price: $9.60

Click For Price and Specs

7026391

7026391 Lever Actuating Left Side Triple-L Trailers

Your Price: $50.52

Click For Price and Specs

7026392

7026392 Lever Actuating Right Side Triple-L Trailers

Your Price: $48.52

Click For Price and Specs

7026393

7026393 Clip Wire Triple-L Trailers

Click For Price and Specs

7026394

7026394 Spring Retractor Triple-L Trailers

Your Price: $2.77

Click For Price and Specs

7026395

7026395 Adjuster Assembly Triple-L Trailers

Your Price: $19.48

Click For Price and Specs

7026396

7026396 Spring Adjuster Triple-L Trailers

Your Price: $2.67

Click For Price and Specs

7026397

7026397 Magnet Assembly Triple-L Trailers

Your Price: $118.95

Click For Price and Specs

7026398

7026398 Washer Anchor Triple-L Trailers

Your Price: $2.85

Click For Price and Specs

7027509

7027509 Cup Outer 6-Lug Drum Triple-L Trailers

Your Price: $17.90

Click For Price and Specs

7027510

7027510 Cone Outer 6-Lug Drum Triple-L Trailers

Your Price: $35.48

Click For Price and Specs

7027511

7027511 Cap Brake 6-Lug Drum Triple-L Trailers

Your Price: $8.79

Click For Price and Specs

70703

70703 Drum Assembly 6-Lug Drum Triple-L Trailers

Your Price: $1,618.59

Click For Price and Specs

70705

70705 Drum Assembly 8-Lug Drum Triple-L Trailers

Your Price: $703.63

Click For Price and Specs

71825

71825 Seal Triple-L Trailers

Your Price: $22.50

Click For Price and Specs

80036

80036 Bolt 3/8in-24NF x 1in Triple-L Trailers

Your Price: $1.78

Click For Price and Specs

80134

80134 Nut 3/8in-24NF Triple-L Trailers

Your Price: $2.00

Click For Price and Specs

80180

80180 Nut Spindle Triple-L Trailers

Your Price: $2.99

Click For Price and Specs

80232

80232 Flatwasher 3/8in Triple-L Trailers

Click For Price and Specs

80285

80285 Washer Spindle Triple-L Trailers

Your Price: $2.37

Click For Price and Specs

80317

80317 Pin Cotter 5/32in x 2in Plated Triple-L Trailers

Your Price: $1.85

Click For Price and Specs
