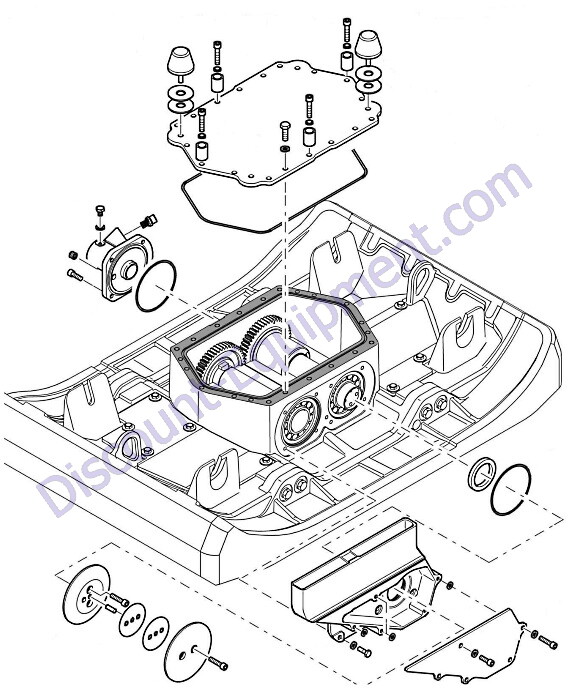

Bomag BPR 60/65D Special Equipment: Base Plate – 3

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





05540009

05540009 Double-ended union Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

06148083

06148083 Stop buffer Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

06210610

06210610 U-seal Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

06220994

06220994 Loop ring Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

06223305

06223305 Loop ring Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

06270011

06270011 Wedge safety washer Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07140608

07140608 Hexagon bolt Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07140842

07140842 Hexagon bolt Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07140846

07140846 Hexagon bolt Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07230806

07230806 Socket-head cap screw Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07230811

07230811 Socket-head cap screw Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07230819

07230819 Socket-head cap screw Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07230822

07230822 Socket-head cap screw Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07230834

07230834 Socket-head cap screw Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07611415

07611415 Screw plug Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

08510817

08510817 Washer Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

08665000

08665000 Stop disc Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

08752084

08752084 Spring washer Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

09120862

09120862 Pin cylindric Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

09312810

09312810 Radial seal Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69020292

69020292 Cylinder Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69020394

69020394 Washer Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69020406

69020406 Stop Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69020426

69020426 Housing cover Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69020447

69020447 V-belt pulley Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69020448

69020448 V-belt pulley Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69020734

69020734 V-belt guard Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69020737

69020737 Cover Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

95695211

95695211 Shim Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs
