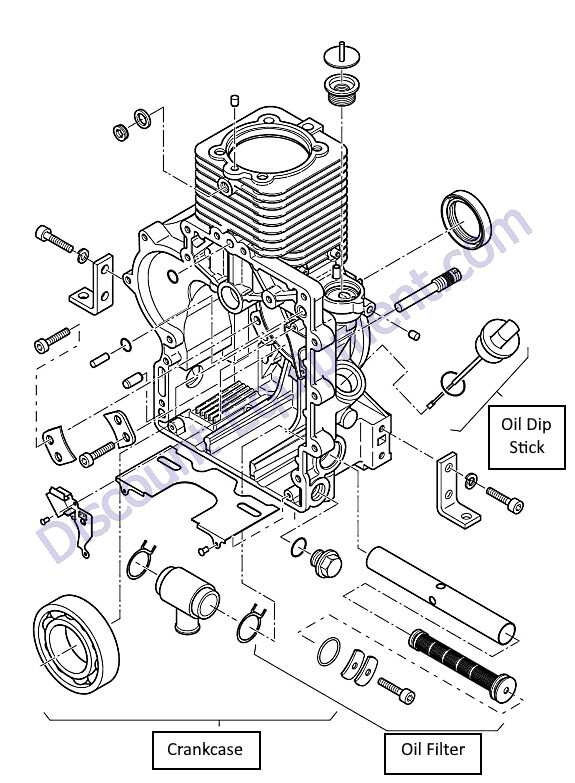

Bomag BPR50/55D Crankcase - 1

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





00970017

00970017 Sealing compound Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

00978006

00978006 Screw lock middle strength Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05720023

05720023 Oil filter Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05720047

05720047 T-piece Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05720142

05720142 Socket-head cap screw Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05722090

05722090 Hose clip Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05722512

05722512 Membrane Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05723458

05723458 Pin cylindric Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05724231

05724231 Crankcase Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05724232

05724232 Air guide Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05724233

05724233 Cover plate Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05724235

05724235 Joint bar Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05724236

05724236 Radial seal Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05724237

05724237 Tapped pin Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05724238

05724238 Oil dipstick Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05724239

05724239 Bearing ball Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05724240

05724240 Engine bracket Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05724241

05724241 Housing Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05728024

05728024 Nipple Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05728105

05728105 Rivet blind Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05728108

05728108 Loop ring Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05728114

05728114 Sealing ring Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05728120

05728120 Washer Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05728121

05728121 Loop ring Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

05728122

05728122 Spring Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

06220082

06220082 Loop ring Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

07230605

07230605 Socket-head cap screw Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

07230831

07230831 Socket-head cap screw Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

07621010

07621010 Screw plug Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

07632216

07632216 Magnetic plug Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

08720814

08720814 Spring washer Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

09331088

09331088 Sealing ring Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs

09331198

09331198 Sealing ring Bomag BPR50-55D Reversible Plate Compactor

Click For Price and Specs
