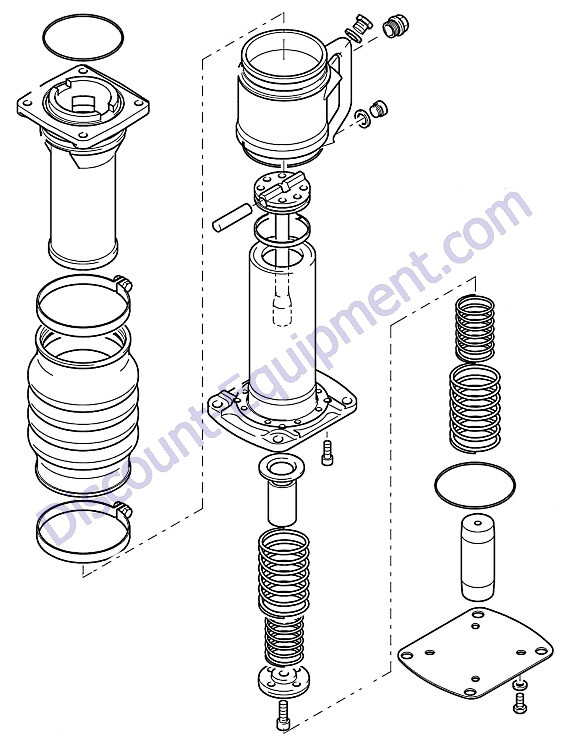

Bomag BT60/4 Spring and Guide Unit

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





05551492

05551492 Hose clip Bomag BT60-4 Tamper

Click For Price and Specs

05973134

05973134 Oil level gauge Bomag BT60-4 Tamper

Click For Price and Specs

06220804

06220804 Loop ring Bomag BT60-4 Tamper

Click For Price and Specs

06220853

06220853 Loop ring Bomag BT60-4 Tamper

Click For Price and Specs

06221013

06221013 Loop ring Bomag BT60-4 Tamper

Click For Price and Specs

06245029

06245029 Piston guiding ring Bomag BT60-4 Tamper

Click For Price and Specs

07140834

07140834 Hexagon bolt Bomag BT60-4 Tamper

Click For Price and Specs

07230827

07230827 Socket-head cap screw Bomag BT60-4 Tamper

Click For Price and Specs

07231227

07231227 Socket-head cap screw Bomag BT60-4 Tamper

Click For Price and Specs

07621416

07621416 Screw plug Bomag BT60-4 Tamper

Click For Price and Specs

07632015

07632015 Screw plug Bomag BT60-4 Tamper

Click For Price and Specs

08752084

08752084 Spring washer Bomag BT60-4 Tamper

Click For Price and Specs

09331128

09331128 Sealing ring Bomag BT60-4 Tamper

Click For Price and Specs

09331746

09331746 Sealing ring Bomag BT60-4 Tamper

Click For Price and Specs

54210109

54210109 Piston rod Bomag BT60-4 Tamper

Click For Price and Specs

54210128

54210128 Floating wrist pin Bomag BT60-4 Tamper

Click For Price and Specs

54210133

54210133 Pressure spring Bomag BT60-4 Tamper

Click For Price and Specs

54210134

54210134 Pressure spring Bomag BT60-4 Tamper

Click For Price and Specs

54210142

54210142 Plate Bomag BT60-4 Tamper

Click For Price and Specs

54210143

54210143 Stop Bomag BT60-4 Tamper

Click For Price and Specs

54210151

54210151 Piston Bomag BT60-4 Tamper

Click For Price and Specs

54210153

54210153 Ring Bomag BT60-4 Tamper

Click For Price and Specs

54210158

54210158 Inner guide Bomag BT60-4 Tamper

Click For Price and Specs

54210173

54210173 Stop Bomag BT60-4 Tamper

Click For Price and Specs

54210178

54210178 Outer guide Bomag BT60-4 Tamper

Click For Price and Specs

54210180

54210180 Foot cup Bomag BT60-4 Tamper

Click For Price and Specs

54210244

54210244 Cover plate Bomag BT60-4 Tamper

Click For Price and Specs

54210251

54210251 (54210129) Bellows Bomag BT60-4 Tamper

Click For Price and Specs
