Barreto 916H/918H Tine Section - 16" or 18" Digging Width

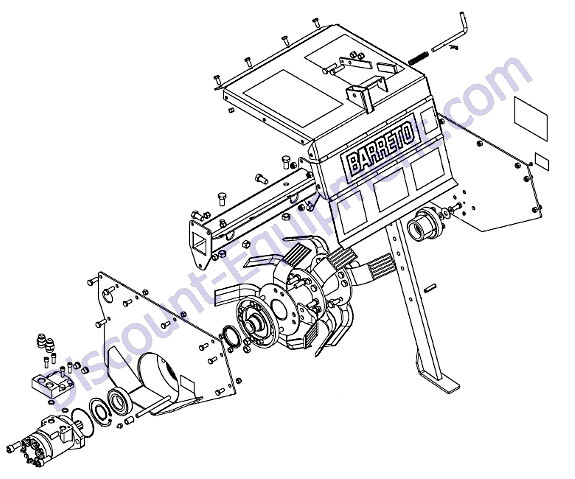

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





01012

01012 DEPTH BAR Barreto 916H-918H Tiller

Your Price: $155.30

Click For Price and Specs

01018

01018 PIN DEPTH BAR Barreto 916H-918H Tiller

Your Price: $49.30

Click For Price and Specs

01066

01066 TINE COVER 918 Barreto 918H Tiller

Your Price: $485.33

Click For Price and Specs

01067

01067 TINE MOTOR MOUNT AND LEFT HAND SIDE PLATE Barreto 916H-918H Tiller

Your Price: $275.77

Click For Price and Specs

01099

01099 HANDLE DEPTH BAR Barreto 916H-918H Tiller

Click For Price and Specs

02065

02065 MANIFOLD TINE MOTOR Barreto 916H-918H Tiller

Your Price: $108.10

Click For Price and Specs

03001

03001 O-RING 2-152 3-7/16 OD X 3/32 SECTION Barreto 916H-918H Tiller

Your Price: $14.58

Click For Price and Specs

03018

03018 GRIP 1/8 X 3/4 X 2-3/4 Barreto 916H-918H Tiller

Your Price: $13.23

Click For Price and Specs

03040-01

03040-01 Decal Made In The USA Barreto 916H-918H Tiller

Your Price: $10.17

Click For Price and Specs

03040-02

03040-02 DECAL BARRETO 3-1/2 X 11-1/4 Barreto 916H-918H Tiller

Your Price: $16.98

Click For Price and Specs

03040-03

03040-03 DECAL CAUTION BLACK & WHITE Barreto 916H-918H Tiller

Your Price: $14.58

Click For Price and Specs

03040-04

03040-04 DECAL GREASE DAILY Barreto 916H-918H Tiller

Your Price: $10.17

Click For Price and Specs

03040-07

03040-07 DECAL CAUTION YELLOW Barreto 916H-918H Tiller

Your Price: $13.38

Click For Price and Specs

03040-08

03040-08 DECAL WARNING Barreto 916H-918H Tiller

Your Price: $13.38

Click For Price and Specs

03040-51

03040-51 DECAL "918" Barreto 918H Tiller

Your Price: $18.05

Click For Price and Specs

03065

03065 HAIR SPRING COTTER #4 Barreto 916H-918H Tiller

Your Price: $1.98

Click For Price and Specs

03080

03080 SPRING Barreto 916H-918H Tiller

Your Price: $21.34

Click For Price and Specs

03196 R1

03196 R1 TINE REVERSIBLE Barreto 916H-918H Tiller

Your Price: $28.82

Click For Price and Specs

03196 R1-12

03196 R1-12 Reversible Tine SET OF 12 Barreto 916H-918H Tiller

Your Price: $242.68

Click For Price and Specs

03302

03302 FITTING 6409-6 PLUG Barreto 916H-918H Tiller

Your Price: $21.00

Click For Price and Specs

03341-22

03341-22 DECAL TILLER OPERATING INSTRUCTIONS Barreto 916H-918H Tiller

Your Price: $23.82

Click For Price and Specs

03341-23

03341-23 DECAL TILLER SAFETY INSTRUCTIONS Barreto 916H-918H Tiller

Your Price: $23.84

Click For Price and Specs

03926

03926 O-RING 2-112N90 11/16 OD X 3/32 SECTION Barreto 916H-918H Tiller

Your Price: $2.47

Click For Price and Specs

03930

03930 SEAL CR 19763 Barreto 916H-918H Tiller

Your Price: $29.18

Click For Price and Specs

03943

03943 BALL BEARING SKF 6208 Barreto 916H-918H Tiller

Your Price: $54.58

Click For Price and Specs

04340

04340 DECAL 916 Barreto 916H Tiller

Your Price: $17.43

Click For Price and Specs

04520

04520 FITTING 6400-8-8 Barreto 916H-918H Tiller

Your Price: $14.58

Click For Price and Specs

04605-F

04605-F TINE MOTOR Barreto 916H-918H Tiller

Your Price: $839.82

Click For Price and Specs

05006

05006 ROLL PIN SLOTTED SPRING 3/8 X 1-1/2 ZINC Barreto 916H-918H Tiller

Your Price: $2.94

Click For Price and Specs

05044

05044 GREASE ZERK 1/4-28 UNF Barreto 916H-918H Tiller

Your Price: $8.73

Click For Price and Specs

05046

05046 NUT GRIPCO 1/2-13 NC G5 ZINC Barreto 916H-918H Tiller

Your Price: $1.81

Click For Price and Specs

05052

05052 HH CAP SCREW 5/16-24 NF X 3/4 G5 ZINC Barreto 916H-918H Tiller

Your Price: $1.98

Click For Price and Specs

05056

05056 HH CAP SCREW 3/8-24 NF X 1 G5 ZINC Barreto 916H-918H Tiller

Your Price: $1.98

Click For Price and Specs

05059

05059 HH CAP SCREW 3/8-16 NC X 1 G5 ZINC Barreto 916H-918H Tiller

Your Price: $1.98

Click For Price and Specs

05061

05061 HH CAP SCREW 7/16-20 NF X 1 G8 ZINC Barreto 916H-918H Tiller

Your Price: $2.57

Click For Price and Specs

05063

05063 HH CAP SCREW 7/16-20 NF X 1-1/4 G8 ZINC Barreto 916H-918H Tiller

Your Price: $2.61

Click For Price and Specs

05067

05067 HH CAP SCREW 1/2-13 NC X 1 G5 ZINC Barreto 916H-918H Tiller

Your Price: $2.94

Click For Price and Specs

05071

05071 NUT NYLOCK 5/16-24 NF ZINC Barreto 916H-918H Tiller

Your Price: $1.48

Click For Price and Specs

05072

05072 NUT NYLOCK 3/8-24 NF ZINC Barreto 916H-918H Tiller

Your Price: $1.48

Click For Price and Specs

05073

05073 NUT NYLOCK 3/8-16 NC ZINC Barreto 916H-918H Tiller

Your Price: $1.98

Click For Price and Specs

05074

05074 NUT 7/16-20 NF G8 ZINC Barreto 916H-918H Tiller

Your Price: $1.48

Click For Price and Specs

05083

05083 WASHER 7/16 USS ZINC Barreto 916H-918H Tiller

Your Price: $1.48

Click For Price and Specs

05092

05092 HH CAP SCREW 3/8-16 NC X 1-1/2 G5 ZINC Barreto 916H-918H Tiller

Your Price: $1.98

Click For Price and Specs

05103

05103 WASHER 3/8 A325 HARDENED ZINC Barreto 916H-918H Tiller

Your Price: $1.48

Click For Price and Specs

05204

05204 PIPE COUPLER 1/8" Barreto 916H-918H Tiller

Your Price: $10.47

Click For Price and Specs

05256

05256 GREASE ZERK 1/8 NPT Barreto 916H-918H Tiller

Your Price: $10.08

Click For Price and Specs

05282

05282 PIPE NIPPLE 1/8" X 5 LONG Barreto 916H-918H Tiller

Your Price: $18.05

Click For Price and Specs

05361

05361 SH CAP SCREW 5/16-18 NC X 7/8 ZINC Barreto 916H-918H Tiller

Your Price: $2.65

Click For Price and Specs

05585

05585 SH CAP SCREW 1/2-13 NC X 1-1/4 G5 ZINC Barreto 916H-918H Tiller

Your Price: $2.85

Click For Price and Specs

05603

05603 SNAP RING HO-315 3-5/32 INTERNAL Barreto 916H-918H Tiller

Your Price: $14.58

Click For Price and Specs

05607

05607 SNAP RING SH-156 1-9/16" EXTERNAL Barreto 916H-918H Tiller

Your Price: $9.72

Click For Price and Specs

10067

10067 TINE COVER 916 Barreto 916H Tiller

Your Price: $494.70

Click For Price and Specs

10144

10144 OUTBOARD BEARING ASSEMBLY Barreto 916H-918H Tiller

Your Price: $150.02

Click For Price and Specs

10146

10146 SIDE PLATE RIGHT HAND TINE SECTION Barreto 916H-918H Tiller

Click For Price and Specs

10702

10702 TORQUE TUBE 17" BOLT ON Barreto 916H Tiller

Your Price: $196.05

Click For Price and Specs

10706

10706 TORQUE TUBE 19" Barreto 918H Tiller

Your Price: $213.83

Click For Price and Specs

11278

11278 TINE MOTOR HUB SPLINED Barreto 916H-918H Tiller

Your Price: $155.30

Click For Price and Specs

11279

11279 TINE SHAFT Barreto 916H Tiller

Your Price: $321.82

Click For Price and Specs

11281

11281 TINE SHAFT Barreto 918H Tiller

Your Price: $356.52

Click For Price and Specs
