You are here: Home > Manufacturers > Barreto > Barreto Wheeled Trencher Parts > Barreto 1324D/1624D Wheeled Trencher Parts > Barreto 1324D/1624D Engine and Pumps: 16HP B&S

Barreto 1324D/1624D Engine and Pumps: 16HP B&S

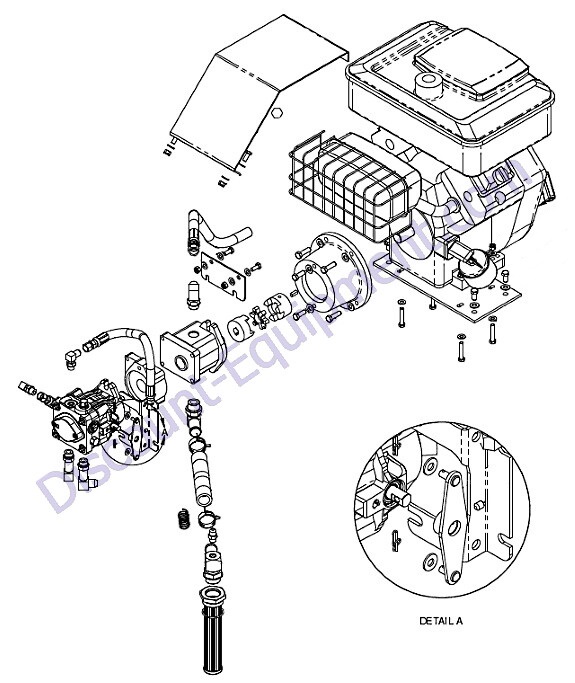

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





01215

01215 SHIELD MOUNT Barreto 1324D-1624D Wheeled Trencher

Your Price: $24.26

Click For Price and Specs

01217

01217 PUMP SHIELD STANDARD Barreto 1324D-1624D Wheeled Trencher

Your Price: $41.04

Click For Price and Specs

01217-BW

01217-BW PUMP SHIELD WIDE TIRE Barreto 1324D-1624D Wheeled Trencher

Your Price: $44.10

Click For Price and Specs

01218

01218 ENGINE MOUNT PLATE BRIGGS Barreto 1324D-1624D Wheeled Trencher

Your Price: $41.04

Click For Price and Specs

02016

02016 PUMP ADAPTER Barreto 1324D-1624D Wheeled Trencher

Your Price: $208.43

Click For Price and Specs

03021

03021 JAW COUPLER PUMP 5/8 BORE Barreto 1324D-1624D Wheeled Trencher

Your Price: $41.04

Click For Price and Specs

03022

03022 SPIDER RUBBER Barreto 1324D-1624D Wheeled Trencher

Your Price: $29.84

Click For Price and Specs

03023

03023 JAW COUPLER 1" BORE L095 Barreto 1324D-1624D Wheeled Trencher

Your Price: $48.56

Click For Price and Specs

03292

03292 O-RING 3-924N90 -24 FITTINGS Barreto 1324D-1624D Wheeled Trencher

Your Price: $2.82

Click For Price and Specs

04211

04211 FITTING 6801-8-10 Barreto 1324D-1624D Wheeled Trencher

Your Price: $37.32

Click For Price and Specs

04503

04503 PUMP SNP2-8.5-HSTAT Barreto 1324D-1624D Wheeled Trencher

Your Price: $707.78

Click For Price and Specs

04504

04504 ADAPTER WITH O-RINGS & HARDWARE Barreto 1324D-1624D Wheeled Trencher

Your Price: $279.95

Click For Price and Specs

04506

04506 PUMP PG-10 HYDROSTATIC Barreto 1324D-1624D Wheeled Trencher

Click For Price and Specs

04511

04511 SPRING 1" OD Barreto 1324D-1624D Wheeled Trencher

Your Price: $16.45

Click For Price and Specs

04530

04530 FITTING 4601-16-12 Barreto 1324D-1624D Wheeled Trencher

Your Price: $59.70

Click For Price and Specs

04533

04533 FITTING 6801-8-8-LL Barreto 1324D-1624D Wheeled Trencher

Your Price: $28.00

Click For Price and Specs

04538

04538 FITTING 6801-6-6 Barreto 1324D-1624D Wheeled Trencher

Your Price: $21.00

Click For Price and Specs

04543

04543 HOSE HYDROSTAT TO FILTER Barreto 1324D-1624D Wheeled Trencher

Your Price: $77.09

Click For Price and Specs

04545-01

04545-01 HOSE HYDROSTAT SUMP Barreto 1324D-1624D Wheeled Trencher

Your Price: $67.86

Click For Price and Specs

04551-01

04551-01 HOSE PUMP TO VALVES Barreto 1324D-1624D Wheeled Trencher

Your Price: $63.44

Click For Price and Specs

05014

05014 KEY 1/4 X 1/4 X 3/4 Barreto 1324D-1624D Wheeled Trencher

Your Price: $9.78

Click For Price and Specs

05038

05038 RUE RING COTTER #8 Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.94

Click For Price and Specs

05054

05054 HH CAP SCREW 5/16-18 NC X 1-3/4 G5 ZINC Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.94

Click For Price and Specs

05057

05057 HH CAP SCREW 3/8-16 NC X 3/4 G5 ZINC Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.94

Click For Price and Specs

05059

05059 HH CAP SCREW 3/8-16 NC X 1 G5 ZINC Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.94

Click For Price and Specs

05068

05068 WASHER 5/16 SAE ZINC Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.46

Click For Price and Specs

05081

05081 WASHER 1/4 SAE ZINC Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.46

Click For Price and Specs

05091

05091 HH CAP SCREW 3/8-16 NC X 1-1/4 G5 ZINC Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.94

Click For Price and Specs

05101

05101 WASHER 3/8 SAE ZINC Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.46

Click For Price and Specs

05225

05225 CLAMP 1-1/2" HOSE CTB-36 ST Barreto 1324D-1624D Wheeled Trencher

Your Price: $14.04

Click For Price and Specs

05240

05240 SET SCREW 6MM CUP POINT Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.94

Click For Price and Specs

05247

05247 HH CAP SCREW 5/16-18 NC X 3/4 G5 ZINC Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.94

Click For Price and Specs

05273

05273 NUT NYLOCK 5/16-18 NC ZINC Barreto 1324D-1624D Wheeled Trencher

Your Price: $1.46

Click For Price and Specs

06016

06016 SEAL KIT PUMP Barreto 1324D-1624D Wheeled Trencher

Your Price: $199.07

Click For Price and Specs

07000-10

07000-10 MUFFLER Barreto 1324D-1624D Wheeled Trencher

Your Price: $409.93

Click For Price and Specs

07000-11

07000-11 MUFFLER GUARD Barreto 1324D-1624D Wheeled Trencher

Click For Price and Specs

07001

07001 ENGINE 16 HP BRIGGS Barreto 1324D-1624D Wheeled Trencher

Click For Price and Specs

10339

10339 PUMP CABLE ARM Barreto 1324D-1624D Wheeled Trencher

Your Price: $25.00

Click For Price and Specs

10340

10340 CABLE BRACKET Barreto 1324D-1624D Wheeled Trencher

Your Price: $41.74

Click For Price and Specs

10401

10401 FITTING 6400-6-6 Barreto 1324D-1624D Wheeled Trencher

Your Price: $13.38

Click For Price and Specs

10636

10636 SUMP SCREEN WITH O-RING Barreto 1324D-1624D Wheeled Trencher

Your Price: $138.78

Click For Price and Specs

10680

10680 FITTING 4601-16-16-TAP Barreto 1324D-1624D Wheeled Trench

Your Price: $78.94

Click For Price and Specs

11363

11363 HOSE PUMP INTAKE Barreto 1324D-1624D Wheeled Trencher

Your Price: $23.74

Click For Price and Specs
