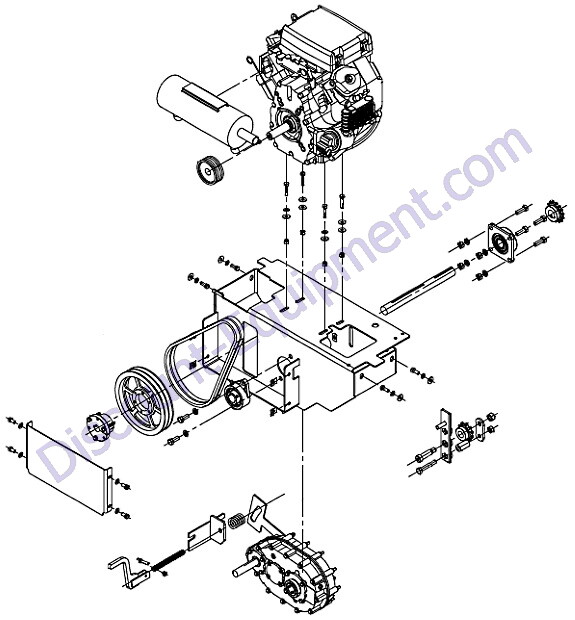

Miller Curber MC900 Engine-Gearbox Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





42108-07

42108-07 3/8" CAGE NUT Miller Curber MC900 Curb Machine

Click For Price and Specs

45002-11

45002-11 MOTOR MOUNT Miller Curber MC900 Curb Machine

Click For Price and Specs

45008-10

45008-10 SHEAVE GUARD Miller Curber MC900 Curb Machine

Click For Price and Specs

45016-11

45016-11 IDLER SPROCKET Miller Curber MC900 Curb Machine

Click For Price and Specs

45016-17

45016-17 IDLER BRACKET WELDMENT Miller Curber MC900 Curb Machine

Your Price: $63.57

Click For Price and Specs

45016-18

45016-18 IDLER BRACKET RETAINING PLATE Miller Curber MC900 Curb Machine

Click For Price and Specs

45016-21

45016-21 IDLER BRACKET TUBE Miller Curber MC900 Curb Machine

Click For Price and Specs

45024-02

45024-02 TORQUE ARM COMPRESSION SPRING Miller Curber MC900 Curb Machine

Click For Price and Specs

45024-03

45024-03 SAFETY TORQUE ARM Miller Curber MC900 Curb Machine

Click For Price and Specs

45024-04

45024-04 SAFETY TORQUE ARM BRACKET Miller Curber MC900 Curb Machine

Click For Price and Specs

45024-09

45024-09 SAFETY TORQUE ARM HANDLE Miller Curber MC900 Curb Machine

Click For Price and Specs

45024-14

45024-14 SAFETY TORQUE ARM STUD Miller Curber MC900 Curb Machine

Click For Price and Specs

45050-02

45050-02 2 GROOVE Q.D. SHEAVE Miller Curber MC900 Curb Machine

Your Price: $77.00

Click For Price and Specs

45050-03

45050-03 Q.D. BUSHING Miller Curber MC900 Curb Machine

Click For Price and Specs

45050-05

45050-05 GEAR REDUCER Miller Curber MC900 Curb Machine

Your Price: $2,025.00

Click For Price and Specs

45050-16

45050-16 OUTPUT SHAFT Miller Curber MC900 Curb Machine

Your Price: $76.50

Click For Price and Specs

45050-23

45050-23 COG V BELT Miller Curber MC900 Curb Machine

Your Price: $17.00

Click For Price and Specs

45151-01

45151-01 HONDA ENGINE 20.3 HP Miller Curber MC900 Curb Machine

Click For Price and Specs

45151-07

45151-07 HONDA MUFFLER Miller Curber MC900 Curb Machine

Click For Price and Specs

BE0100

BE0100 1-1/4" 2-BOLT FLANGE BEARING Miller Curber MC900 Curb Machine

Your Price: $47.50

Click For Price and Specs

BE0200

BE0200 1-1/4" 4-BOLT FLANGE BEARING Miller Curber MC900 Curb Machine

Your Price: $49.75

Click For Price and Specs

CL0200

CL0200 CLUTCH 1" BORE HEAVY DUTY Miller Curber MC900 Curb Machine

Your Price: $847.00

Click For Price and Specs

HW0001-HEX NUT 1/2-13 UNC

HW0001-HEX NUT 1/2-13 UNC Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-HEX NUT 5/8-11 UNC

HW0001-HEX NUT 5/8-11 UNC Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-HHCS 1/2-13 UNC x 1-1/2

HW0001-HHCS 1/2-13 UNC x 1-1/2" LG. Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-HHCS 1/2-13 UNC x 1-1/4

HW0001-HHCS 1/2-13 UNC x 1-1/4" LG. Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-HHCS 1/2-13 UNC x 3

HW0001-HHCS 1/2-13 UNC x 3" LG. Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-HHCS 3/8-16 UNC x 1-3/4

HW0001-HHCS 3/8-16 UNC x 1-3/4" LG. Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-HHCS 3/8-16 UNC x 3/4

HW0001-HHCS 3/8-16 UNC x 3/4" LG. Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-HHCS 3/8-16 x 1

HW0001-HHCS 3/8-16 x 1" LG. Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-HHCS 5/16-18 UNC x 1-1/2

HW0001-HHCS 5/16-18 UNC x 1-1/2" LG. Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-LOCK NUT 3/8-16 UNC

HW0001-LOCK NUT 3/8-16 UNC Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-LOCK WASHER 1/2

HW0001-LOCK WASHER 1/2" Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-LOCK WASHER 3/8

HW0001-LOCK WASHER 3/8" Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-NYLOK LOCK NUT 5/16-18 UNC

HW0001-NYLOK LOCK NUT 5/16-18 UNC Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-SAE FLAT WASHER 3/8

HW0001-SAE FLAT WASHER 3/8" Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-SHOULDER BOLT 5/8-11 UNC x 3/4 DIA x 2

HW0001-SHOULDER BOLT 5/8-11 UNC x 3/4 DIA x 2" LG. Miller Curber MC900 Curb Machine

Click For Price and Specs

HW0001-USS FLAT WASHER 3/8

HW0001-USS FLAT WASHER 3/8" Miller Curber MC900 Curb Machine

Click For Price and Specs

SK0300

SK0300 23 TOOTH SPROCKET Miller Curber MC900 Curb Machine

Your Price: $56.00
