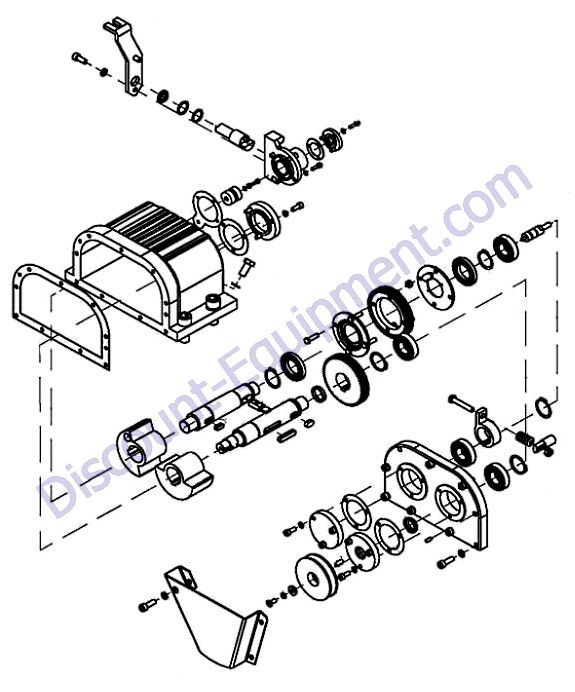

TK MVP125 Plate Compactor Eccentric Motor

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





0109608

0109608 KEY C20 x 8-GB1096 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0109612

0109612 KEY A12 X 20-GB1096 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0109612

0109612 KEY A12 X 50-GB1096 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0119008

0119008 PIN BOLT 8-GB11 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0276006

0276006 BEARING 60206-GB276 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0276008

0276008 BEARING 16008-GB276 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0283006

0283006 BEARING 32206-GB28 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0345226

0345226 O-RING 30X4 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0578208

0578208 BOLT M8 X 16 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0578308

0578308 BOLT M8 10X25GB5783 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0578308

0578308 BOLT M8 x 20-GB5783 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0578614

0578614 BOLT M14 X 1.5 X 20-GB5786 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0617008

0617008 NUT M8-GB6170 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0617010

0617010 NUT M10-GB6170 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0700005-16

0700005-16 BOLT M5 X 16-GB70 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0700006

0700006 BOLT M6 X 22-GB70 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0700008-20

0700008-20 BOLT M8 x 20-GB70 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0700008-25

0700008-25 BOLT M10x 30-GB7 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0700008-30

0700008-30 BOLT M8 X 25-GB70 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0854010

0854010 WASHER 10-GB854 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0894040

0894040 RETAINING RING 40-GB894 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0894042

0894042 RETAINING RING 42-GB894 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

09300010

09300010 SPRING WASHER 8 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0930005

0930005 SPRING WASHER 5-GB93 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0930006

0930006 SPRING WASHER 6-GB93 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

0987752

0987752 OIL SEAL 50x 28 x 10-GB9877.1 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002001-2

3002001-2 EXCITER BOX TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002002

3002002 BOX COVER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002003

3002003 BEARING COVER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002004

3002004 PULLEY TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002005

3002005 WASHER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002006

3002006 BEARING COVER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002007

3002007 PINCH CLAMP TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002008

3002008 BOLT M10 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002009

3002009 BOLT TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002010-2

3002010-2 SPINDLE TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002011-2

3002011-2 UNBALANCE WEIGHT TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002012-1

3002012-1 CLUTCH BODY TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002012-2

3002012-2 GEAR TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002012-3

3002012-3 BOLT M8 X 30 TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002013

3002013 DIRECTION PIN TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002014

3002014 SPINDLE TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002015

3002015 DIRECTION HOUSING TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002016

3002016 ROTARY COVER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002017

3002017 WASHER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002018

3002018 SPINDLE TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002019

3002019 BASE COVER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002020

3002020 BOARD COVER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002021

3002021 GASKET COVER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002022

3002022 SPRING WASHER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002023

3002023 COVER GASKET TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002024

3002024 GEAR TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002025-2

3002025-2 SPACER TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002026-2

3002026-2 PULLEY SHAFT TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002027-2

3002027-2 UNBALANCE WEIGHT TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002028

3002028 BELT GUARD TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002031

3002031 OIL SEAL GASKET TK Equipment MVP125 Plate Compactor

Click For Price and Specs

3002032

3002032 OIL SEAL GASKET TK Equipment MVP125 Plate Compactor

Click For Price and Specs
