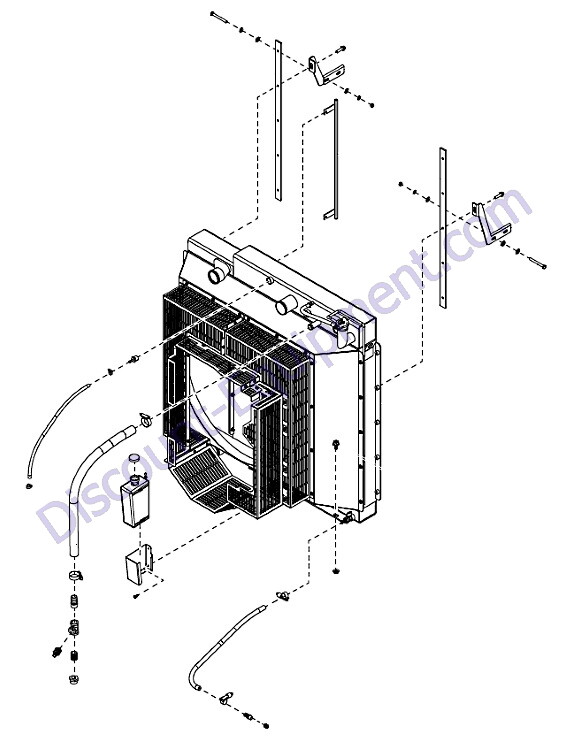

Generac Magnum MDG250DF4 Cooling System Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





10000008522

10000008522 Spacer insulation Generac Magnum MDG250DF4 Diesel Generator

Click For Price and Specs

10000019175

10000019175 Weldment hose bracket Generac Magnum MDG250DF4 Diesel Generator

Click For Price and Specs

10000019255

10000019255 Radiator Generac Magnum MDG250DF4 Diesel Generator

Your Price: $3,049.00

Click For Price and Specs

10000019954

10000019954 Bracket radiator support left Generac Magnum MDG250DF4 Diesel Generator

Click For Price and Specs

10000020000

10000020000 Bracket radiator support right Generac Magnum MDG250DF4 Diesel Generator

Click For Price and Specs

15422

15422 Clamp hose SAE006 .37-.87 Generac Magnum MDG250DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

19453

19453 Clamp hose SAE 006 .37-.87 Generac Magnum MDG250DF4 Diesel Generator

Your Price: $1.59

Click For Price and Specs

19714

19714 Cap overflow bottle Generac Magnum MDG250DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

24952

24952 Jug overflow 2.5 quart Generac Magnum MDG250DF4 Diesel Generator

Your Price: $24.73

Click For Price and Specs

25082

25082 Fitting straight .375MNPT x .375 barb Generac Magnum MDG250DF4 Diesel Generator

Your Price: $11.13

Click For Price and Specs

25496

25496 Fitting straight .750MNPT x 1.00 barb brass Generac Magnum MDG250DF4 Diesel Generator

Your Price: $26.38

Click For Price and Specs

26211B

26211B Bracket overflow jug Generac Magnum MDG250DF4 Diesel Generator

Your Price: $41.98

Click For Price and Specs

39850

39850 Cap radiator Generac Magnum MDG250DF4 Diesel Generator

Your Price: $23.23

Click For Price and Specs

40667

40667 Fitting straight .750MNPT x .500 barb brass Generac Magnum MDG250DF4 Diesel Generator

Your Price: $17.23

Click For Price and Specs

42681

42681 Plug .375 CL150 sunken hex Generac Magnum MDG250DF4 Diesel Generator

Your Price: $1.59

Click For Price and Specs

50018

50018 Hose .312 ID 50 PSI SAE 30R7 Generac Magnum MDG250DF4 Diesel Generator

Your Price: $3.19

Click For Price and Specs

50051

50051 Hose fuel .375 ID 50 PSI SAE 30R7 Generac Magnum MDG250DF4 Diesel Generator

Your Price: $9.87

Click For Price and Specs

50169

50169 Hose 1.00 inch Generac Magnum MDG250DF4 Diesel Generator

Your Price: $14.50

Click For Price and Specs

60098

60098 Nut .500-13 serrated flange hex Generac Magnum MDG250DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60140

60140 Nut .375-16 hex G5 Generac Magnum MDG250DF4 Diesel Generator

Your Price: $9.69

Click For Price and Specs

60206

60206 Washer .375 split lock Generac Magnum MDG250DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60487

60487 Screw .375-16 x 1.50 serrated flange hex G5 Generac Magnum MDG250DF4 Diesel Generator

Your Price: $1.59

Click For Price and Specs

60698

60698 Washer .375 Flat .875/.040 18-8 SS USS Generac Magnum MDG250DF4 Diesel Generator

Your Price: $8.97

Click For Price and Specs

60999

60999 Fitting straight .500MNPT x .312 barb brass Generac Magnum MDG250DF4 Diesel Generator

Your Price: $13.78

Click For Price and Specs

61044

61044 Fitting tee .750NPT brass Generac Magnum MDG250DF4 Diesel Generator

Your Price: $20.26

Click For Price and Specs

61100

61100 Screw .500-13 x 1.00 serrated flange hex G5 Generac Magnum MDG250DF4 Diesel Generator

Your Price: $1.59

Click For Price and Specs

61107

61107 Washer .500 external star Generac Magnum MDG250DF4 Diesel Generator

Your Price: $1.29

Click For Price and Specs

61999

61999 Screw .375-16 x 3.50 standard hex SS Generac Magnum MDG250DF4 Diesel Generator

Your Price: $1.59

Click For Price and Specs

62027

62027 Fitting nipple .750NPT x close brass Generac Magnum MDG250DF4 Diesel Generator

Your Price: $7.53

Click For Price and Specs

63358

63358 Screw .250-20 x .625 hex washer head Generac Magnum MDG250DF4 Diesel Generator

Your Price: $3.19

Click For Price and Specs

HW4046A126

HW4046A126 Fitting M30-2.0 male x .750FNPT Generac Magnum MDG250DF4 Diesel Generator

Your Price: $53.36

Click For Price and Specs
