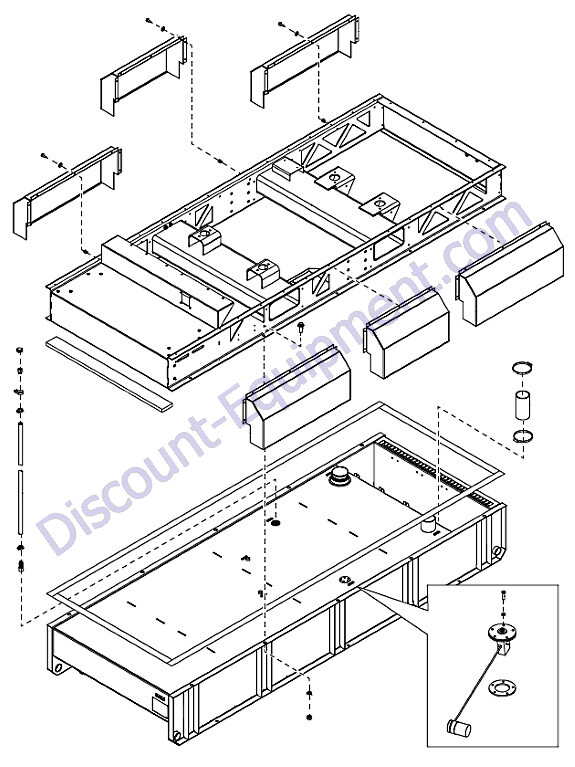

Generac Magnum MDG150DF4 Skid and Fuel Tank Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





10000015046

10000015046 Tank fuel 343 gallon single wall Generac Magnum MDG150DF4 Diesel Generator

Click For Price and Specs

10000019063

10000019063 Foam front fuel tank Generac Magnum MDG150DF4 Diesel Generator

Click For Price and Specs

10000020236

10000020236 Hose fuel 4.0 ID x 8.50 Generac Magnum MDG150DF4 Diesel Generator

Your Price: $71.80

Click For Price and Specs

10000020418

10000020418 Weldment skid Generac Magnum MDG150DF4 Diesel Generator

Click For Price and Specs

19336

19336 Clamp hose SAE 044 2.31-3.25 Generac Magnum MDG150DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

19842

19842 Clamp hose SAE072 4.06-5.00 Generac Magnum MDG150DF4 Diesel Generator

Your Price: $7.17

Click For Price and Specs

20162

20162 Fitting straight 1.00NPT x 1.00 barb plain Generac Magnum MDG150DF4 Diesel Generator

Your Price: $22.06

Click For Price and Specs

21206

21206 Sender fuel 16-24" right hand Generac Magnum MDG150DF4 Diesel Generator

Your Price: $118.63

Click For Price and Specs

22323

22323 Gasket fuel sender Generac Magnum MDG150DF4 Diesel Generator

Your Price: $22.93

Click For Price and Specs

26379

26379 Vent fuel 1.00 ID Plastic Generac Magnum MDG150DF4 Diesel Generator

Your Price: $17.53

Click For Price and Specs

50019

50019 Hose fuel 1.00 SAE 203R Generac Magnum MDG150DF4 Diesel Generator

Your Price: $22.18

Click For Price and Specs

54692B

54692B Panel rain guard side Generac Magnum MDG150DF4 Diesel Generator

Your Price: $349.00

Click For Price and Specs

54695B

54695B Panel rain guard middle side Generac Magnum MDG150DF4 Diesel Generator

Your Price: $299.00

Click For Price and Specs

54922

54922 Gasket 1.00 x .250 Generac Magnum MDG150DF4 Diesel Generator

Your Price: $1.77

Click For Price and Specs

56551

56551 Insert .250-20 splined .165-.260 threaded Generac Magnum MDG150DF4 Diesel Generator

Your Price: $2.37

Click For Price and Specs

60062

60062 Screw 10-32 x .750 Pan Phillips G2 Zinc Generac Magnum MDG150DF4 Diesel Generator

Your Price: $8.43

Click For Price and Specs

60248

60248 Washer .750 split lock Generac Magnum MDG150DF4 Diesel Generator

Your Price: $1.59

Click For Price and Specs

60249

60249 Nut .750-10 hex G8 Generac Magnum MDG150DF4 Diesel Generator

Your Price: $1.59

Click For Price and Specs

60252

60252 Washer #10 split lock Generac Magnum MDG150DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60704

60704 Washer .250 split lock SS Generac Magnum MDG150DF4 Diesel Generator

Your Price: $1.29

Click For Price and Specs

60716

60716 Clamp tubing 1.50 light duty Generac Magnum MDG150DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

63111

63111 Screw .750-10 x 2.25 flange hex G8 Generac Magnum MDG150DF4 Diesel Generator

Your Price: $7.17

Click For Price and Specs

68070

68070 Screw Button Hex .250-20 x 1.0 SS Generac Magnum MDG150DF4 Diesel Generator

Your Price: $2.79

Click For Price and Specs
