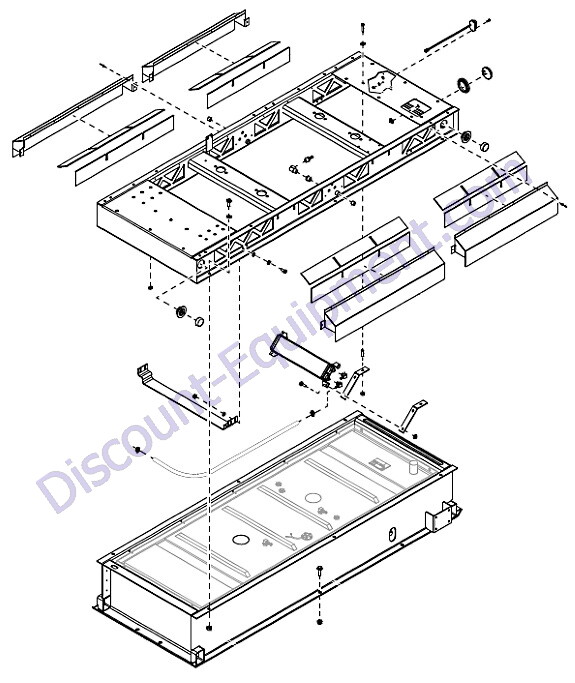

Generac Magnum MMG45IF4 Skid Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





10221

10221 Grommet Rear Light Rubber 4.5" Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

15396

15396 Fitting 90 Degrees .375MNPT x .375FNPT Brass Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $12.39

Click For Price and Specs

15425

15425 Nut .312-18 Cage Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

18394

18394 Fitting Plug .500NPT x Internal Hex Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $1.59

Click For Price and Specs

19180

19180 Fitting Strt .375MNPT x .312 Barb Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $7.71

Click For Price and Specs

19453

19453 Clamp Hose SAE 006 .37-.87 Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $1.59

Click For Price and Specs

22570

22570 Fitting Strt .500MNPT x .375FNPT Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $2.37

Click For Price and Specs

30558B

30558B Spacer .750 OD .51 ID 2.0 Long Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $18.58

Click For Price and Specs

33700

33700 Cooler Fuel Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $284.99

Click For Price and Specs

36386B

36386B Bracket Fuel Cooler Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $23.98

Click For Price and Specs

36921B

36921B Weldment Lower Skid Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $2,069.00

Click For Price and Specs

36925B

36925B Weldment Mini Skid Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $1,529.00

Click For Price and Specs

36963

36963 Assembly License Plate Light Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $28.78

Click For Price and Specs

36984B

36984B Weldment Rain Shield Long Generac Magnum MMG45IF4 Mobile Diesel Generator

Click For Price and Specs

36985B

36985B Bracket Fuel Tank Tie Down Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $54.82

Click For Price and Specs

37492B

37492B Weldment Rain Shield Short Generac Magnum MMG45IF4 Mobile Diesel Generator

Click For Price and Specs

37662

37662 Foam Rain Shield Small Bottom Generac Magnum MMG45IF4 Mobile Diesel Generator

Click For Price and Specs

37663

37663 Foam Rain Shield Small Top Generac Magnum MMG45IF4 Mobile Diesel Generator

Click For Price and Specs

37665

37665 Foam Rain Shield Large Bottom Generac Magnum MMG45IF4 Mobile Diesel Generator

Click For Price and Specs

37666

37666 Foam Rain Shield Large Top Generac Magnum MMG45IF4 Mobile Diesel Generator

Click For Price and Specs

50051

50051 Hose Fuel .375 ID 50 Psi SAE 30R7 Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $9.87

Click For Price and Specs

60095

60095 Nut .312-18 Sflg Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $10.05

Click For Price and Specs

60193

60193 Washer M16 Flat Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

60240

60240 Nut .625-11 Nylock G5 Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

60260

60260 Rivet .188 Diameter x .375 to .500 Grip SS Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.19

Click For Price and Specs

60269

60269 Washer #8 Flat .433/.036 Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

60270

60270 Nut 8-32 Nylock Class 6 Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

60303

60303 Nut .312-18 Nylock G2 Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $11.13

Click For Price and Specs

60340

60340 Washer .312 Flat .875/.040 SS Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

60507

60507 Screw .312-18 x 1.0 Std Hex SS Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

60584

60584 Nut .750-10 Nylock G5 Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

60616

60616 Screw .312-18 x .750 Sflg Hex G5 Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

60694

60694 Screw 8-32 x .750 Pan Phil SS Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

60701

60701 Washer .312 Split Lock SS Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

62145

62145 Fitting 90 Degrees .375MNPT x .375 Barb Brass Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $10.59

Click For Price and Specs

62163

62163 (61069) Screw .625-11 X 2.0 Std Hex G5 ZC Generac Magnum MMG45IF4 Diesel Generator

Your Price: $2.69

Click For Price and Specs

63111

63111 Screw .750-10 x 2.250 Flg Hex G8 Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $7.17

Click For Price and Specs

63318

63318 Screw .312-18 x 3.0 Std Hex SS Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $1.59

Click For Price and Specs

66394

66394 Grommet Sealed Beam Light Rubber 2.0" Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $3.29

Click For Price and Specs

66701

66701 Light Rear Rail/Turn Round 4" no Grommet Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $21.46

Click For Price and Specs

66702

66702 Light Clearance no Grommet 2.0" Amber LED Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $12.21

Click For Price and Specs

66703

66703 Light Clearance no Grommet 2.0" Red LED Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $12.03

Click For Price and Specs

67856

67856 Harness Trailer Extension Assembly 100" Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $34.78

Click For Price and Specs

68281

68281 Harness Trailer Lights LED Generac Magnum MMG45IF4 Mobile Diesel Generator

Your Price: $76.78

Click For Price and Specs
