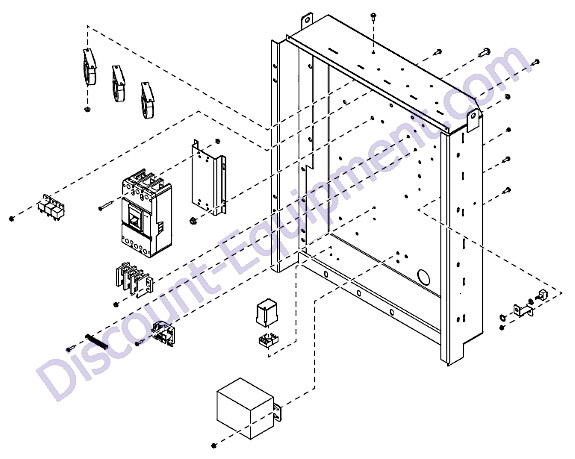

Generac Magnum MDG100DF4 Control Box Assembly - 1

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





14204

14204 Kit ground bar Generac Magnum MDG100DF4 Diesel Generator

Your Price: $11.13

Click For Price and Specs

18019B

18019B Bracket breaker mounting Generac Magnum MDG100DF4 Diesel Generator

Your Price: $31.54

Click For Price and Specs

18496

18496 Fitting bushing 2.50 OD x 2.0 ID Generac Magnum MDG100DF4 Diesel Generator

Your Price: $7.74

Click For Price and Specs

21487

21487 Transformer 1.13:1 1 phase 500VA Generac Magnum MDG100DF4 Diesel Generator

Your Price: $344.99

Click For Price and Specs

25077

25077 Switch toggle SPST 20A VAC Generac Magnum MDG100DF4 Diesel Generator

Your Price: $16.93

Click For Price and Specs

32734ZY

32734ZY Bracket ECU power switch Generac Magnum MDG100DF4 Diesel Generator

Your Price: $23.98

Click For Price and Specs

33160B

33160B Weldment control box Generac Magnum MDG100DF4 Diesel Generator

Your Price: $1,559.00

Click For Price and Specs

60061

60061 Nut 10-32 nylock Generac Magnum MDG100DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60143

60143 Screw .250-20 x 2.0 pan Phillips G5 Generac Magnum MDG100DF4 Diesel Generator

Your Price: $1.41

Click For Price and Specs

60145

60145 Nut .375-16 serrated flange G5 Generac Magnum MDG100DF4 Diesel Generator

Your Price: $14.37

Click For Price and Specs

60161

60161 Nut .250-20 serrated flange G5 Generac Magnum MDG100DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60175

60175 Screw .250-20x.500 Serrated Flange Hex G5 Generac Magnum MDG100DF4 Diesel Generator

Your Price: $10.59

Click For Price and Specs

60396

60396 Screw 10-32 x 1.250 pan Phillips G2 Generac Magnum MDG100DF4 Diesel Generator

Your Price: $1.29

Click For Price and Specs

60398

60398 Screw 10-32 x .500 pan Phillips SS Generac Magnum MDG100DF4 Diesel Generator

Your Price: $9.33

Click For Price and Specs

60406

60406 Screw 8-32 x 1.0 Pan Phil G2 Generac Magnum MDG100DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60457

60457 Nut 10-24 nylock G2 Generac Magnum MDG100DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60479

60479 Screw .250-20 x 1.0 serrated flange hex G5 Generac Magnum MDG100DF4 Diesel Generator

Your Price: $23.83

Click For Price and Specs

60517

60517 Screw .375-16 x 1.0 serrated flange hex Generac Magnum MDG100DF4 Diesel Generator

Your Price: $1.59

Click For Price and Specs

61045

61045 Nut 10-32 serrated flange Generac Magnum MDG100DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

65049

65049 Relay 12V 30/40A NO w/diode Generac Magnum MDG100DF4 Diesel Generator

Your Price: $20.53

Click For Price and Specs

65356

65356 Block terminal 3-pole Bussman Generac Magnum MDG100DF4 Diesel Generator

Your Price: $125.88

Click For Price and Specs

65383

65383 Breaker 400A 12-24VDC shunt trip Generac Magnum MDG100DF4 Diesel Generator

Your Price: $2,149.00

Click For Price and Specs

65443

65443 Transformer current 500:5A Generac Magnum MDG100DF4 Diesel Generator

Your Price: $138.58

Click For Price and Specs

65461

65461 Relay 30A DPDT 120VAC power Generac Magnum MDG100DF4 Diesel Generator

Your Price: $150.99

Click For Price and Specs

65644

65644 Base relay 8 position Generac Magnum MDG100DF4 Diesel Generator

Your Price: $19.48

Click For Price and Specs

65674

65674 Stop 35mm din rail end Generac Magnum MDG100DF4 Diesel Generator

Your Price: $2.31

Click For Price and Specs

66003

66003 Rail din 35mm x 6.0" Generac Magnum MDG100DF4 Diesel Generator

Your Price: $103.41

Click For Price and Specs

66340

66340 Relay voltage sensing 132 In 126 Out Generac Magnum MDG100DF4 Diesel Generator

Your Price: $239.99

Click For Price and Specs

66455

66455 Relay 12V 70A NC/80A NO w/diode Generac Magnum MDG100DF4 Diesel Generator

Your Price: $18.73

Click For Price and Specs

67077

67077 Wire group buck transformer Generac Magnum MDG100DF4 Diesel Generator

Your Price: $269.00

Click For Price and Specs
