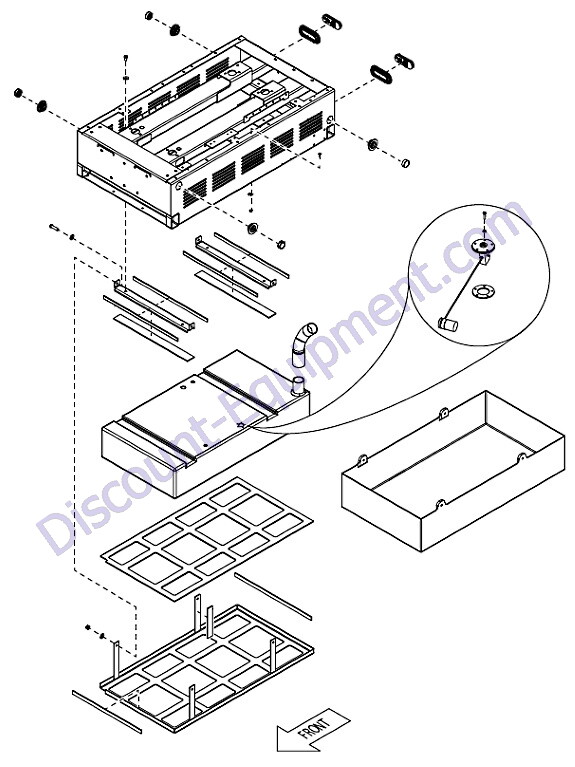

Generac Magnum MDG25IF4 Trailer Tank and Skid Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





10000017136

10000017136 Grommet Oval Stop/Turn/Tail Lamp Generac Magnum MDG25IF4 Diesel Generator

Your Price: $1.59

Click For Price and Specs

10000017173

10000017173 Lamp Stop/Turn/Tail Oval LED Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

10000027144

10000027144 Hose Fuel Fill Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

10000027754

10000027754 Fuel Tank 48 Gallon Poly Generac Magnum MDG25IF4 Diesel Generator

Your Price: $1,539.00

Click For Price and Specs

10000027987

10000027987 Containment Pan 75 Gal. Poly Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

10000030931

10000030931 Weldment Fuel Tank Strap Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

10000030932

10000030932 Weldment Fuel Tank Support Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

10000032741

10000032741 Foam Fuel Tank Front Rail Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

10000032752

10000032752 Foam Fuel Tank Support Bottom Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

10000033150

10000033150 Foam Fuel Tank Bottom Rail Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

10000033160

10000033160 Foam Fuel Tank Support Aft Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

10000033161

10000033161 Foam Fuel Tank Support Side Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

10000033170

10000033170 Foam Fuel Tank Support Fwd Generac Magnum MDG25IF4 Diesel Generator

Click For Price and Specs

15626

15626 Clamp Tubing .375 Light Duty Generac Magnum MDG25IF4 Diesel Generator

Your Price: $1.47

Click For Price and Specs

21206

21206 Sender Fuel 16-24" Right Hand Generac Magnum MDG25IF4 Diesel Generator

Your Price: $118.63

Click For Price and Specs

22323

22323 Gasket Fuel Sender Generac Magnum MDG25IF4 Diesel Generator

Your Price: $22.93

Click For Price and Specs

60062

60062 Screw 10-32 x .750 Pan Phillips G2 Generac Magnum MDG25IF4 Diesel Generator

Your Price: $8.43

Click For Price and Specs

60107

60107 Screw .250-20 x .750 Serrated Flange Hex G5 Generac Magnum MDG25IF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60161

60161 Nut .250-20 Serrated Flange G5 Generac Magnum MDG25IF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60252

60252 Washer #10 Split Lock Generac Magnum MDG25IF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60275

60275 Screw .500-23 x 1.00 Standard Hex G5 Generac Magnum MDG25IF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60484

60484 Screw .500-13 x 2.00 Standard Hex G5 Generac Magnum MDG25IF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

62221

62221 Nut .500-13 Nylock G5 Generac Magnum MDG25IF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

66394

66394 Grommet Sealed Beam Light Rubber Generac Magnum MDG25IF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

66702

66702 Light Clearance 2.0" Amber Generac Magnum MDG25IF4 Diesel Generator

Your Price: $12.21

Click For Price and Specs

66703

66703 Light Clearance 2.0" Red LED Generac Magnum MDG25IF4 Diesel Generator

Your Price: $12.03

Click For Price and Specs

G022304

G022304 (60309) Washer Flat 1/2 Zinc Generac Magnum MDG25IF4 Diesel Generator

Your Price: $10.23

Click For Price and Specs
