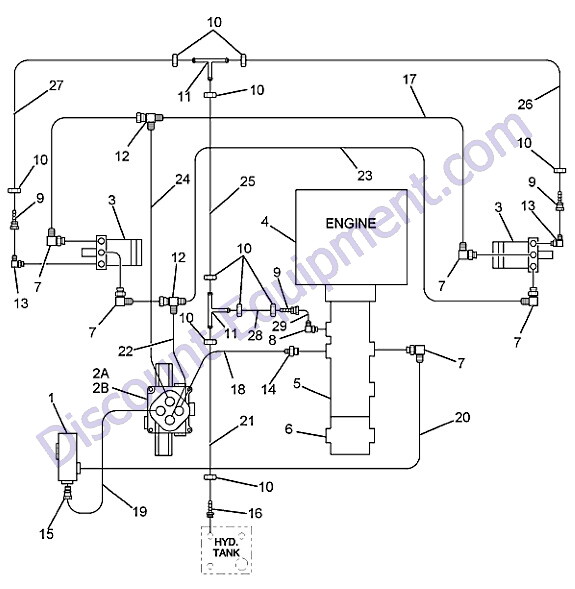

Laymor Sweepmaster 6HC-8HC Ground Drive Circuit

  • Refer to the REF # on the Image for the REF # to the Part Information below
  • Please see Pages 113-114 in the Parts Manual for more Information
  • Click the red arrows to navigate to the next area of the machine





10350595

10350595 (476838) VALVE DRIVE AFTER 07-02 Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $905.66

Click For Price and Specs

REF # 1 - HIGH PRESSURE FILTER ASSEMBLY Laymor Sweepmaster 6HC 8HC Sweeper

Click For Price and Specs

9103730

REF # 3 - 10351803 (9103730) MOTOR HYDRAULIC DRIVE Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $910.38

Click For Price and Specs

356960K

REF #5 - 356960K HYDRAULIC PUMP REPLACEMENT KIT KUBOTA Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $3,020.68

Click For Price and Specs

9104033

REF #6 - 9104033 PUMP AUXILIARY Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $570.71

Click For Price and Specs

REF # 2A - VALVE DRIVE BEFORE 07-02 Laymor Sweepmaster 6HC 8HC Sweeper

Click For Price and Specs

374793

REF # 4 - 374793 ENGINE ASSEMBLY KUBOTA V-1505 Laymor Sweepmaster 6HC 8HC Sweeper

Click For Price and Specs

068080

REF # 7 - 10351268 (068080) ADAPTER 90-12 SAEM X -6 JICM Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $21.27

Click For Price and Specs

092825

REF # 8 - 10352195 (092825) ADAPTER 90 DEGREE #6MSAE X #6MJIC Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $14.39

Click For Price and Specs

447219

REF # 9 - 10349521 (447219) ADAPTER -6 JICF SW TO .37 HOSE BARB Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $13.28

Click For Price and Specs

447466

REF # 10 - 10349528 (447466) CLAMP CRIMPING BAND Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $5.07

Click For Price and Specs

447128

REF # 11 - 10349518 (447128) TEE 3/8" ID HOSE BARB Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $6.65

Click For Price and Specs

093203

REF # 12 - 10352210 (093203) ADAPTER -8 JIC RUN TEE Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $18.85

Click For Price and Specs

092825

REF # 13 - 10352195 (092825) ADAPTER 90 DEGREE Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $14.39

Click For Price and Specs

046938

REF # 14 -10350316 (046938) ADAPTER Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $23.29

Click For Price and Specs

447151

REF # 15 - 447151 ADAPTER .50-NPTF SW TO -12 SAEM Laymor Sweepmaster 6HC 8HC Sweeper

Click For Price and Specs

447169

REF # 16 - 447169 ADAPTER -6 SAEM TO .37 HOSE BARB Laymor Sweepmaster 6HC 8HC Sweeper

Click For Price and Specs

369934

REF # 17 - 10347865 (369934) HOSE 08-08JS08JS X 16.00" 100R1 Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $35.47

Click For Price and Specs

9103921

REF # 18 - 10351820 (9103921) HOSE 08-08JS12JM X 26.00" 100R1 Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $79.20

Click For Price and Specs

369938

REF # 19 - 369938 HOSE 08-08MP08F9 X 13" 100R1 Laymor Sweepmaster 6HC 8HC Sweeper

Click For Price and Specs

377515

REF # 20 - 10348003 (377515) HOSE 08-08JS08MB X 27.50" 100R1 Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $62.92

Click For Price and Specs

447474

REF # 21 - 10349529 (447474) HOSE LOW PRESSURE 3/8" ID Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $11.97

Click For Price and Specs

369975

REF # 22 - 10347866 (369975) HOSE 08-08JS08MB X 31" 100R1 Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $46.14

Click For Price and Specs

377457

REF # 23 - 10348002 (377457) HOSE 08-08JS08JS X 18.00" 100R1 Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $39.04

Click For Price and Specs

369975

REF # 24 - 10347866 (369975) HOSE 08-08JS08MB X 31" 100R1 Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $46.14

Click For Price and Specs

447474

REF # 25 - 10349529 (447474) HOSE LOW PRESSURE 3/8" ID Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $11.97

Click For Price and Specs

447474

REF # 26 - 10349529 (447474) HOSE LOW PRESSURE 3/8" ID Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $11.97

Click For Price and Specs

447474

REF # 27 - 10349529 (447474) HOSE LOW PRESSURE 3/8" ID Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $11.97

Click For Price and Specs

447474

REF # 28 - 10349529 (447474) HOSE LOW PRESSURE 3/8" ID Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $11.97

Click For Price and Specs

447474

REF # 29 - 10349529 (447474) HOSE LOW PRESSURE 3/8" ID Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $11.97

Click For Price and Specs

439182

10349303 (439182) CAP LOCKING TAB Laymor Sweepmaster 6HC 8HC Sweeper

Your Price: $91.63

Click For Price and Specs
