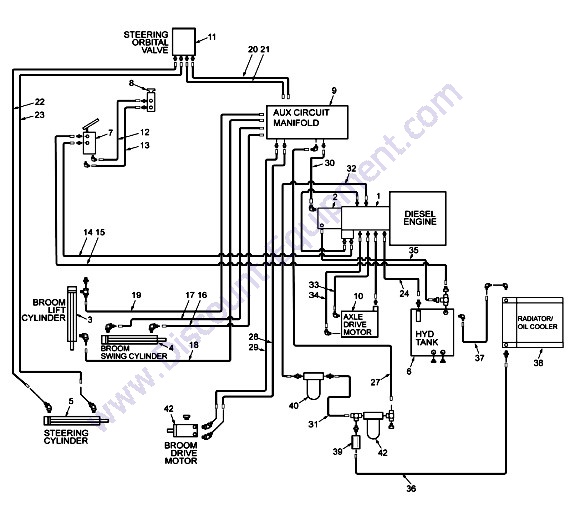

Laymor SweepMaster 450 Hydraulic System


  • Refer to the REF # on the Image for the REF # to the Part Information below
  • Please see Pages 57-59 in the Parts Manual for more Information
  • Click the red arrows to navigate to the next area of the machine





10500646

REF #1 - 10500646 HYDROSTATIC MOTOR Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10500649

REF #2 - 10500649 AUXILIARY PUMP Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10500620

REF #3 - 10500620 BROOM LIFT CYLINDER Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10500647

REF #4 - 10500647 BROOM SWING CYLINDER Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10500648

REF #5 - 10500648 STEERING CYLINDER Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

7120077

REF #6 - 10560411 (7120077) HYDRAULIC TANK ASSEMBLY Laymor Sweepmaster 450 Sweeper

Your Price: $1,570.79

Click For Price and Specs

10349903

REF #7 - 10349903 VALVE FOOT PEDAL Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

016217

REF #8 - 016217 REVERSING VALVE Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

017818

REF #9 - 017818 AUXILIARY CIRCUIT MANIFOLD Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10500646

REF #10 - 10500646 AXLE DRIVE MOTOR Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10350590

REF #11 - 10350590 STEERING ORBITAL VALVE Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552553

REF #12 and REF #13 - 10552553 HYDRAULIC HOSE 1/4" X 64" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552553

REF #14 - 10552553 HYDRAULIC HOSE 1/4" X 64" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552567

REF #15 - 10552567 HYDRAULIC HOSE 3/8" X 79.5" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552561

REF #16 - 10552561 HYDRAULIC HOSE 3/8" X 29.5" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552562

REF #17 - 10552562 HYDRAULIC HOSE 3/8" X 44" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552564

REF #18 - 10552564 HYDRAULIC HOSE 3/8" X 59.75" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552563

REF #19 - 10552563 HYDRAULIC HOSE 3/8" X 58.75" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552565

REF #20 - 10552565 HYDRAULIC HOSE 3/8" X 74.75" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552566

REF #21 - 10552566 HYDRAULIC HOSE 3/8" X 76" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552568

REF #22 and REF #23 - 10552568 HYDRAULIC HOSE 3/8" X 81.5" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552508

REF #24 - 10552508 HYDRAULIC HOSE 1/2" X 16.25" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552509

REF #25 - 10552509 HYDRAULIC HOSE 1/2" X 23" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552510

REF #26 - 10552510 HYDRAULIC HOSE 1/2" X 25.75" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552551

REF #27 - 10552551 HYDRAULIC HOSE 1/2" X 38" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552507

REF #28 and REF #29 - 10552507 HYDRAULIC HOSE 1/2" X 137" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552552

REF #30 - 10552552 HYDRAULIC HOSE 1/2" X 41" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552557

REF #31 - 10552557 HYDRAULIC HOSE 3/4" X 27.25" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552559

REF #32 - 10552559 HYDRAULIC HOSE 3/4" X 35.25" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552558

REF #33 - 10552558 HYDRAULIC HOSE 3/4" X 32.75" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552560

REF #34 - 10552560 HYDRAULIC HOSE 3/4" X 37.62" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552554

REF #35 - 10552554 HYDRAULIC HOSE 1" X 15.5" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552555

REF #36 - 10552555 HYDRAULIC HOSE 1" X 59.25" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552556

REF #37- 10552556 HYDRAULIC HOSE 1" X 63" Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10350873

REF #38 - 10350873 RADIATOR OIL COOLER Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10349294

REF #39 - 10349294 CHECK VALVE 45 PSI Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10349277

REF #40 - 10349277 FILTER 6 Micron Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10348975

REF # 41 - 10348975 FILTER 10 Micron Laymor Sweepmaster450 Sweeper

Click For Price and Specs

404538

REF #42 - 10348432 (404538) BROOM DRIVE MOTOR Laymor Sweepmaster 450 Sweeper

Your Price: $2,247.28

Click For Price and Specs

447979

10349558 (447979) SCREEN FILLER Laymor Sweepmaster 450 Sweeper

Your Price: $29.09

Click For Price and Specs

10350117

10350117 SCREEN 2.00 NPT x 1.25 NPT Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10350898

10350898 SIGHT GAUGE Laymor Sweepmaster 450 Sweeper

Click For Price and Specs
