Laymor SweepMaster 300 Main Drivetrain Assembly

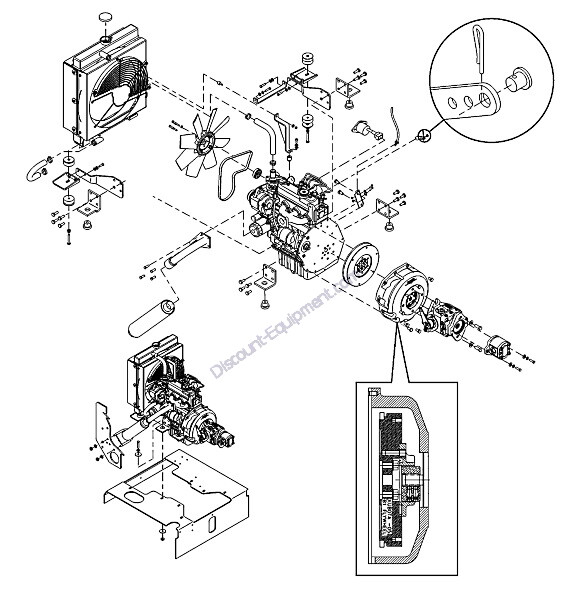

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





100036

100036 LOCKNUT Laymor Sweepmaster300 Sweeper

Your Price: $5.07

Click For Price and Specs

100207

100207 CLAMP HOSE Laymor Sweepmaster300 Sweeper

Click For Price and Specs

10055

10055 BOLT Laymor Sweepmaster300 Sweeper

Click For Price and Specs

10057

10057 BOLT Laymor Sweepmaster300 Sweeper

Click For Price and Specs

10107

10107 BOLT Laymor Sweepmaster300 Sweeper

Click For Price and Specs

1000047

10347051 (1000047) RADIATOR ASSEMBLY Laymor Sweepmaster300 Sweeper

Your Price: $653.74

Click For Price and Specs

100026

10347075 (100026) BOLT Laymor Sweepmaster300 Sweeper

Your Price: $77.66

Click For Price and Specs

100054

10347080 (100054) KIT ENGINE KUBOTA 1505 Laymor Sweepmaster300 Sweeper

Your Price: $7,478.21

Click For Price and Specs

100065

10347083 (100065) PISTON PUMP ASSEMBLY HYDROSTATIC Laymor Sweepmaster300 Sweeper

Your Price: $2,786.13

Click For Price and Specs

100100

10347104 (100100) KIT FLYWHEEL HOUSING Laymor Sweepmaster300 Sweeper

Your Price: $516.26

Click For Price and Specs

100109

10347109 (100109) BRACKET MOUNTING LH Laymor Sweepmaster300 Sweeper

Your Price: $74.55

Click For Price and Specs

100110

10347110 (100110) BRACKET MOUNTING RH Laymor Sweepmaster300 Sweeper

Your Price: $76.22

Click For Price and Specs

100121

10347112 (100121) FAN ENGINE D1105 Laymor Sweepmaster300 Sweeper

Your Price: $176.32

Click For Price and Specs

100127

10347113 (100127) BRACKET ISOLATOR LH Laymor Sweepmaster300 Sweeper

Your Price: $127.20

Click For Price and Specs

100128

10347114 (100128) BRACKET ISOLATOR RH Laymor Sweepmaster300 Sweeper

Your Price: $135.73

Click For Price and Specs

100130

10347115 (100130) HOSE RADIATOR UPPER Laymor Sweepmaster300 Sweeper

Your Price: $57.10

Click For Price and Specs

100131

10347116 (100131) HOSE RADIATOR LOWER Laymor Sweepmaster300 Sweeper

Your Price: $81.65

Click For Price and Specs

100133

10347117 (100133) BRACKET MOUNT SUPPORT Laymor Sweepmaster300 Sweeper

Your Price: $125.78

Click For Price and Specs

100174

10347132 (100174) BRACKET RADIATOR SUPPORT Laymor Sweepmaster300 Sweeper

Your Price: $113.38

Click For Price and Specs

100198

10347139 (100198) CABLE THROTTLE WITH HANDLE Laymor Sweepmaster300 Sweeper

Your Price: $116.15

Click For Price and Specs

10678

10347186 (010678) BOLT Laymor Sweepmaster300 Sweeper

Your Price: $4.95

Click For Price and Specs

011023

10347193 (011023) WASHER LOCK 3/8" Laymor Sweepmaster300 Sweeper

Your Price: $5.52

Click For Price and Specs

376797

10347973 (376797) BRACKET ENGINE MOUNT REAR Laymor Sweepmaster300 Sweeper

Your Price: $54.66

Click For Price and Specs

376800

10347974 (376800) BRACKET ENGINE MOUNT FRONT Laymor Sweepmaster300 Sweeper

Your Price: $80.76

Click For Price and Specs

376806

10347975 (376806) HEADER EXHAUST Laymor Sweepmaster300 Sweeper

Your Price: $310.57

Click For Price and Specs

386703

10348263 (386703) CUSHION RADIATOR UPPER Laymor Sweepmaster300 Sweeper

Your Price: $23.29

Click For Price and Specs

404673

10348447 (404673) CAPSCREW SOCKET HEAD M8X1.25CP-6GXM30 Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

440628

10349328 (440628) NUT HEX #10-24NC Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

440636

10349329 (440636) LOCKNUT 1/4"-20NC FLANGE WHIZLOCK Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

447673

10349537 (447673) SOLENOID FUEL STOP 2-WIRE Laymor Sweepmaster300 Sweeper

Your Price: $454.83

Click For Price and Specs

456459

10349870 (456459) ISOLATOR RUBBER Laymor Sweepmaster300 Sweeper

Your Price: $28.16

Click For Price and Specs

456806

10349879 (456806) ISOLATOR SUPPORT BRACKET RUBBER Laymor Sweepmaster300 Sweeper

Your Price: $22.18

Click For Price and Specs

457184

10349900 (457184) CLAMP THROTTLE Laymor Sweepmaster300 Sweeper

Your Price: $9.29

Click For Price and Specs

457192

10349901 (457192) PIN CLEVIS Laymor Sweepmaster300 Sweeper

Your Price: $23.94

Click For Price and Specs

459453

10349929 (459453) CAPSCREW M8 X 1.25-16MM Laymor Sweepmaster300 Sweeper

Your Price: $9.29

Click For Price and Specs

459818

10349948 (459818) STANDOFF SUPPORT BRACKET Laymor Sweepmaster300 Sweeper

Your Price: $23.94

Click For Price and Specs

459826

10349949 (459826) PIN HAIR 5/64" DIA Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

459842

10349951 (459842) WASHER PIN RETAINER 2" X 1/2" X 1/8" Laymor Sweepmaster300 Sweeper

Your Price: $5.07

Click For Price and Specs

56424

10351129 (56424) CLAMP HOSE Laymor Sweepmaster300 Sweeper

Your Price: $5.66

Click For Price and Specs

9101616

10351631 (9101616) U-BOLT 2" Laymor Sweepmaster300 Sweeper

Your Price: $18.85

Click For Price and Specs

9101774

10351639 (9101774) MUFFLER Laymor Sweepmaster300 Sweeper

Your Price: $155.77

Click For Price and Specs

9104569

10351922 (9104569) BRACKET THROTTLE CABLE Laymor Sweepmaster300 Sweeper

Your Price: $42.40

Click For Price and Specs

9107106

10352058 (9107106) CAP RADIATOR Laymor Sweepmaster300 Sweeper

Your Price: $45.38

Click For Price and Specs

9107110

10352062 (9107110) KIT BOLT Laymor Sweepmaster300 Sweeper

Your Price: $46.14

Click For Price and Specs

9107111

10352063 (9107111) PIN DOWEL Laymor Sweepmaster300 Sweeper

Your Price: $13.29

Click For Price and Specs

9107112

10352064 (9107112) HOUSING FLYWHEEL Laymor Sweepmaster300 Sweeper

Your Price: $346.50

Click For Price and Specs

9107113

10352065 (9107113) HUB FLYWHEEL Laymor Sweepmaster300 Sweeper

Your Price: $74.07

Click For Price and Specs

9107114

10352066 (9107114) PLATE DRIVE Laymor Sweepmaster300 Sweeper

Your Price: $78.94

Click For Price and Specs

9107134

10352086 (9107134) KIT UPPER ENGINE HEAD GASKET D1105 Laymor Sweepmaster300 Sweeper

Your Price: $352.07

Click For Price and Specs

441527

10356760 (441527) BOLT #10-24NC X .75" Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

441774

10458431 (441774) CAPSCREW 1/2"-13NC X 1-1/4" Laymor Sweepmaster300 Sweeper

Your Price: $6.65

Click For Price and Specs

11322

10560331 (10347202) (11322) WASHER Laymor Sweepmaster300 Sweeper

Your Price: $4.60

Click For Price and Specs

011323

10560332 10347203 (011323) WASHER Laymor Sweepmaster300 Sweeper

Your Price: $4.60

Click For Price and Specs

011325

10560333 (011325) WASHER FLAT 1/2" Laymor Sweepmaster300 Sweeper

Your Price: $5.07

Click For Price and Specs

122191

122191 BOLT HEX HEAD M6X1.0X50MM GR10.9 Laymor Sweepmaster300 Sweeper

Click For Price and Specs

173192

173192 WASHER LOCK Laymor Sweepmaster300 Sweeper

Click For Price and Specs

173193

173193 WASHER LOCK Laymor Sweepmaster300 Sweeper

Click For Price and Specs

33114

33114 WASHER Laymor Sweepmaster300 Sweeper

Click For Price and Specs

33115

33115 WASHER Laymor Sweepmaster300 Sweeper

Click For Price and Specs

33800

33800 WASHER Laymor Sweepmaster300 Sweeper

Click For Price and Specs

459486

459486 BOLT Laymor Sweepmaster300 Sweeper

Click For Price and Specs

459487

459487 BOLT Laymor Sweepmaster300 Sweeper

Click For Price and Specs

9104033

9104033 AUXILIARY PUMP ASSEMBLY Laymor Sweepmaster300 Sweeper

Your Price: $570.71

Click For Price and Specs

910708K

910708K FLYWHEEL ENGINE Laymor Sweepmaster300 Sweeper

Click For Price and Specs

9107131

9107131 BELT FAN Laymor Sweepmaster300 Sweeper

Your Price: $41.06

Click For Price and Specs
