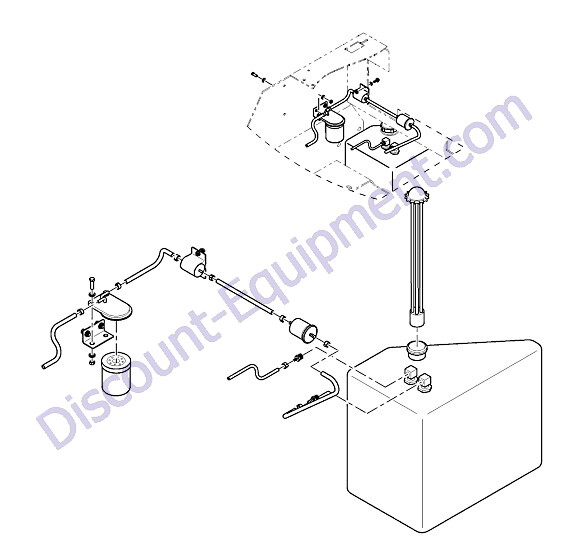

Laymor SweepMaster 300 Fuel System Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





029561

029561 CLAMP HOSE Laymor Sweepmaster300 Sweeper

Your Price: $9.29

Click For Price and Specs

083493

083493 LOCK NUT 5/16"-18 ZN FLANGE Laymor Sweepmaster300 Sweeper

Your Price: $1.43

Click For Price and Specs

100147

100147 HOSE FUEL RETURN Laymor Sweepmaster300 Sweeper

Click For Price and Specs

100151

100151 LINE FUEL 7" Laymor Sweepmaster300 Sweeper

Click For Price and Specs

100152

100152 LINE FUEL 10" Laymor Sweepmaster300 Sweeper

Click For Price and Specs

100153

100153 LINE FUEL 24" Laymor Sweepmaster300 Sweeper

Click For Price and Specs

356949

10347788 (356949) BRACKET FILTER HUSING MOUNT Laymor Sweepmaster300 Sweeper

Your Price: $37.28

Click For Price and Specs

376137

10347945 (376137) TANK FUEL PLASTIC Laymor Sweepmaster300 Sweeper

Your Price: $402.78

Click For Price and Specs

407189

10348491 (407189) FITTING 1/4-NPT MALE X 3/16 BARB BRASS Laymor Sweepmaster300 Sweeper

Your Price: $9.29

Click For Price and Specs

440636

10349329 (440636) LOCKNUT 1/4"-20NC FLANGE WHIZLOCK Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

441550

10349358 (441550) CAPSCREW 1/4"-20NC X 3/4" FLANGE WHIZLOCK Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

441600

10349364 (441600) CAPSCREW 5/16"-18NC X 1" PL Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

467456

10350216 (467456) CAP FUEL GAUGE Laymor Sweepmaster300 Sweeper

Your Price: $67.68

Click For Price and Specs

473199

10350447 (473199) HOUSING FUEL FILTER Laymor Sweepmaster300 Sweeper

Your Price: $166.76

Click For Price and Specs

068528

10351277 (068528) FITTING Laymor Sweepmaster300 Sweeper

Your Price: $18.85

Click For Price and Specs

083485

10351518 (083485) CAPSCREW 5/16"-18NC X 3/4 PL Laymor Sweepmaster300 Sweeper

Your Price: $6.65

Click For Price and Specs

083535

10351523 (083535) NUT HEX 5/16"-18NC FLANGE WHIZLOCK Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

9101624

10351632 (9101624) FILTER FUEL IN-LINE Laymor Sweepmaster300 Sweeper

Your Price: $21.27

Click For Price and Specs

9102952

10351719 (9102952) FILTER FUEL SPIN-ON Laymor Sweepmaster300 Sweeper

Your Price: $30.16

Click For Price and Specs

011321

10560280 (011321) WASHER FLAT 1/4" Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

011322

10560331 (011322) WASHER FLAT 5/16" Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

9101888

9101888 PUMP FUEL ELECTRIC Laymor Sweepmaster300 Sweeper

Your Price: $408.27

Click For Price and Specs
