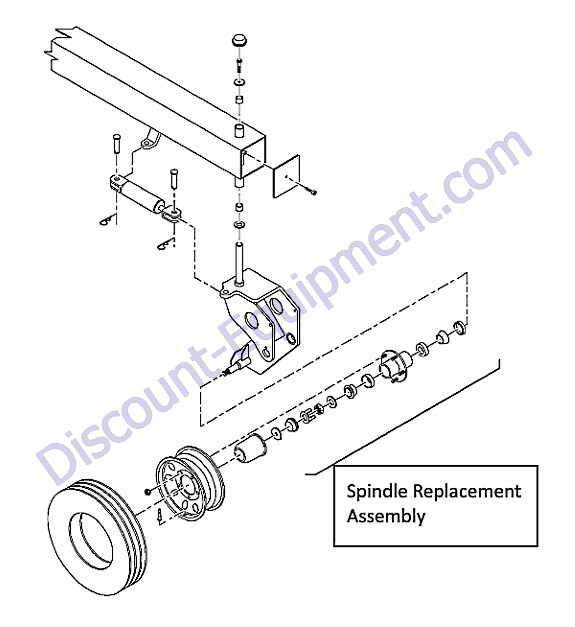

Laymor SweepMaster 300 Front Fork Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





047506

047506 LOCTITE RED #271 Laymor Sweepmaster300 Sweeper

Your Price: $379.42

Click For Price and Specs

1000208-O

1000208-O (376005-O) ASSEMBLY FRONT FORK REPLACEMENT ORANGE Laymor Sweepmaster300 Sweeper

Your Price: $2,059.88

Click For Price and Specs

015768

10347278 (015768) CLIP HAIR 3/16" Laymor Sweepmaster300 Sweeper

Your Price: $5.52

Click For Price and Specs

029629

10347509 (029629) STEM VALVE Laymor Sweepmaster300 Sweeper

Your Price: $6.65

Click For Price and Specs

031401

10347602 (031401) FITTING GREASE STRAIGHT 1/4"-28NF Laymor Sweepmaster300 Sweeper

Your Price: $5.07

Click For Price and Specs

375974

10347917 (375974) PIN FRONT FORK 16" X 1-3/4 DIA Laymor Sweepmaster300 Sweeper

Your Price: $180.46

Click For Price and Specs

375986

10347920 (375986) HUB BEARING Laymor Sweepmaster300 Sweeper

Your Price: $19.95

Click For Price and Specs

375987

10347921 (375987) OUTER RACE Laymor Sweepmaster300 Sweeper

Your Price: $14.39

Click For Price and Specs

375988

10347922 (375988) HUB Laymor Sweepmaster300 Sweeper

Your Price: $77.66

Click For Price and Specs

375989

10347923 (375989) STUD PRESS IN Laymor Sweepmaster300 Sweeper

Your Price: $14.39

Click For Price and Specs

375990

10347924 (375990) STUD SCREW IN Laymor Sweepmaster300 Sweeper

Your Price: $18.85

Click For Price and Specs

375992

10347925 (375992) WASHER Laymor Sweepmaster300 Sweeper

Your Price: $9.29

Click For Price and Specs

375993

10347926 (375993) NUT SPINDLE Laymor Sweepmaster300 Sweeper

Your Price: $10.62

Click For Price and Specs

375994

10347927 (375994) RETAINER SPINDLE NUT Laymor Sweepmaster300 Sweeper

Your Price: $17.72

Click For Price and Specs

375995

10347928 (375995) CAP BEARING WITH GREASE HOLE Laymor Sweepmaster300 Sweeper

Your Price: $14.62

Click For Price and Specs

375996

10347929 (375996) PLUG BEARING CAP Laymor Sweepmaster300 Sweeper

Your Price: $5.96

Click For Price and Specs

376252

10347949 (376252) COVER FRAME TUBE FRONT Laymor Sweepmaster300 Sweeper

Your Price: $80.36

Click For Price and Specs

376327

10347951 (376327) WASHER THRUST .125 X 2.50 X 1.765" Laymor Sweepmaster300 Sweeper

Your Price: $22.18

Click For Price and Specs

440487

10349326 (440487) CAP DUST Laymor Sweepmaster300 Sweeper

Your Price: $16.62

Click For Price and Specs

441766

10349377 (441766) CAPSCREW 1/2"-13NC X 1" FLANGE WHIZLOCK Laymor Sweepmaster300 Sweeper

Your Price: $5.07

Click For Price and Specs

459842

10349951 (459842) WASHER PIN RETAINER 2" X 1/2" X 1/8" Laymor Sweepmaster300 Sweeper

Your Price: $5.07

Click For Price and Specs

472639

10350402 (472639) COVER DUST CAP Laymor Sweepmaster300 Sweeper

Your Price: $21.05

Click For Price and Specs

472936

10350426 (472936) CAPSCREW SOCKET HEAD 5/16"-18UNC X 1" Laymor Sweepmaster300 Sweeper

Your Price: $6.65

Click For Price and Specs

047480

10350510 (047480) LUG NUT Laymor Sweepmaster300 Sweeper

Your Price: $5.52

Click For Price and Specs

9103034

10351729 (9103034) PIN CLEVIS 1" OD X 2-3/4" LONG Laymor Sweepmaster300 Sweeper

Your Price: $14.39

Click For Price and Specs

9104564

10351919 (9104564) RIM WHEEL Laymor Sweepmaster300 Sweeper

Your Price: $303.98

Click For Price and Specs

9107068

10352020 (9107068) INNER BEARING Laymor Sweepmaster300 Sweeper

Your Price: $17.72

Click For Price and Specs

9107069

10352021 (9107069) INNER RACE Laymor Sweepmaster300 Sweeper

Your Price: $11.97

Click For Price and Specs

V63023100

10352571 (V63023100) BUSHING 2" OD X 1-3/4" ID X 2" LONG BRONZE Laymor Sweepmaster300 Sweeper

Your Price: $22.18

Click For Price and Specs

100074

10538328 (100074) FRAME Laymor Sweepmaster300 Sweeper

Your Price: $4,744.70

Click For Price and Specs

375985

375985 SEAL HUB Laymor Sweepmaster300 Sweeper

Your Price: $25.73

Click For Price and Specs

421105

421105K (421105) SPINDLE REPLACEMENT ASSEMBLY Laymor Sweepmaster300 Sweeper

Your Price: $509.79

Click For Price and Specs

467978

467978 (10350256)(467977) CYLINDER STEERING Laymor Sweepmaster300 Sweeper

Your Price: $386.01

Click For Price and Specs

9104606

9104606 TIRE P20575R14 Laymor Sweepmaster300 Sweeper

Click For Price and Specs
