Laymor SweepMaster 300 Frame Assembly

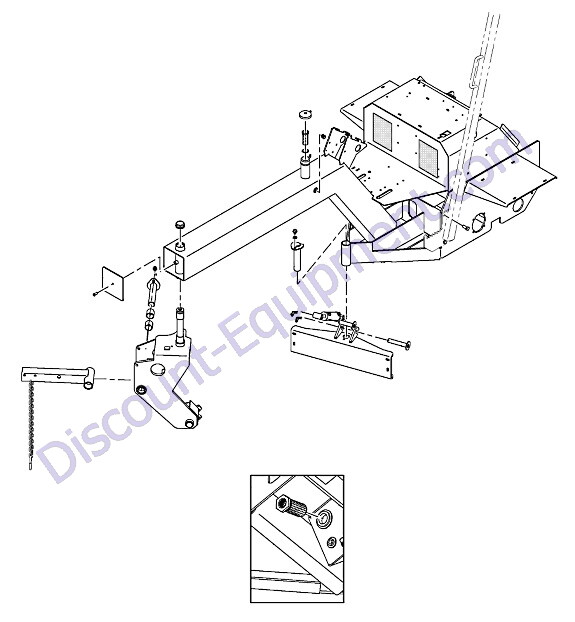

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





1000208-G

1000208-G (376005) FORK FRONT GREEN Laymor Sweepmaster300 Sweeper

Your Price: $2,293.01

Click For Price and Specs

1000208-O

1000208-O (376005) FORK FRONT ORANGE Laymor Sweepmaster300 Sweeper

Your Price: $2,293.01

Click For Price and Specs

100113

10347111 (100113) PIN CLEVIS Laymor Sweepmaster300 Sweeper

Your Price: $71.84

Click For Price and Specs

012039

10347223 (012039) CAPSCREW 5/8"-11NC X 1-1/2" Laymor Sweepmaster300 Sweeper

Your Price: $2.81

Click For Price and Specs

015768

10347278 (015768) CLIP HAIR 3/16" Laymor Sweepmaster300 Sweeper

Your Price: $2.35

Click For Price and Specs

376252

10347949 (376252) COVER FRAME TUBE FRONT Laymor Sweepmaster300 Sweeper

Your Price: $82.22

Click For Price and Specs

376509

10347961 (376509) PIN 1.75" X 9.25" Laymor Sweepmaster300 Sweeper

Your Price: $203.82

Click For Price and Specs

376641

10347968 (376641) BROOM LIFT CYLINDER ASSEMBLY Laymor Sweepmaster300 Sweeper

Your Price: $470.85

Click For Price and Specs

406231

10348465 (406231) LOCKNUT .62-11NC NYLOK Laymor Sweepmaster300 Sweeper

Your Price: $8.13

Click For Price and Specs

439182

10349303 (439182) CAP HYDRAULIC FILLER LOCKING TAB Laymor Sweepmaster300 Sweeper

Your Price: $93.73

Click For Price and Specs

441758

10349376 (441758) CAPSCREW 1/2"-13NC X 3/4" FLANGE WHIZLOCK Laymor Sweepmaster300 Sweeper

Your Price: $1.90

Click For Price and Specs

447979

10349558 (447979) FILTER HYDRAULIC TANK SCREEN Laymor Sweepmaster300 Sweeper

Your Price: $29.74

Click For Price and Specs

472936

10350426 (472936) CAPSCREW SOCKET HEAD 5/16"-18UNC X 1" Laymor Sweepmaster300 Sweeper

Your Price: $6.78

Click For Price and Specs

9100143

10351554 (9100143) FILTER HYDRAULIC TANK SCREEN Laymor Sweepmaster300 Sweeper

Your Price: $79.12

Click For Price and Specs

9101942

10351659 (9101942) FITTING SIGHT GAUGE Laymor Sweepmaster300 Sweeper

Your Price: $29.96

Click For Price and Specs

9104574

10351924 (9104574) WASHER 1.80 X 1.43 I.D. X .06" THK Laymor Sweepmaster300 Sweeper

Your Price: $13.63

Click For Price and Specs

V63023100

10352571 (V63023100) BUSHING 2" OD X 1-3/4" ID X 2" LONG BRONZE Laymor Sweepmaster300 Sweeper

Your Price: $22.68

Click For Price and Specs

377028

10356905 (377028) PIN 1.75" X 8.25" Laymor Sweepmaster300 Sweeper

Your Price: $76.25

Click For Price and Specs

100115

10409731 (100115) PIN CLEVIS Laymor Sweepmaster300 Sweeper

Your Price: $50.80

Click For Price and Specs

100074

10538328 (100074) FRAME Laymor Sweepmaster300 Sweeper

Your Price: $4,610.98

Click For Price and Specs

011325

10560333 (011325) WASHER FLAT 1/2" Laymor Sweepmaster300 Sweeper

Your Price: $1.90

Click For Price and Specs

376087

376087 BAR TOW Laymor Sweepmaster300 Sweeper

Your Price: $237.02

Click For Price and Specs

376160

376160 MOUNT BROOM Laymor Sweepmaster300 Sweeper

Your Price: $314.53

Click For Price and Specs
