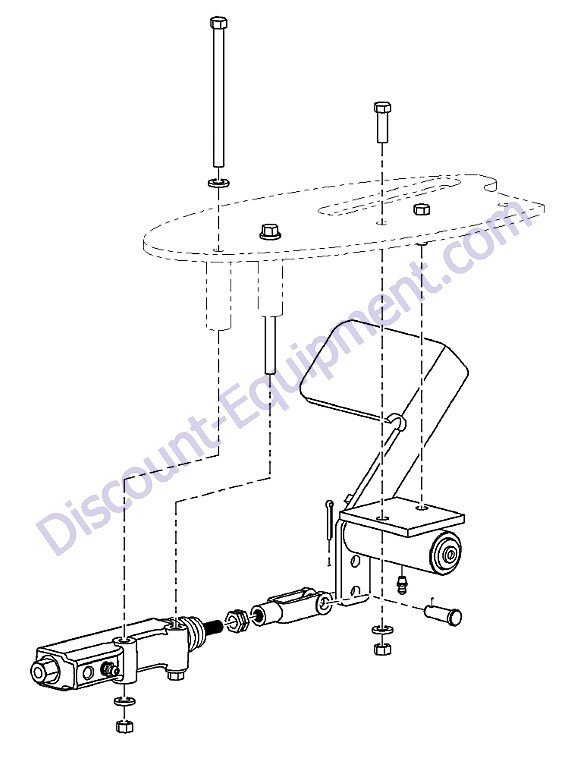

Laymor SweepMaster 300 Brake Pedal Assembly

Hover over the part on the breakdown below and click to see details
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

010478 BOLT Laymor Sweepmaster300 Sweeper

Click For Price and Specs

025676 PIN CLEVIS Laymor Sweepmaster300 Sweeper

Click For Price and Specs

083493 LOCK NUT 5/16"-18 ZN FLANGE Laymor Sweepmaster300 Sweeper

Your Price: $1.43

Click For Price and Specs

100084 PEDAL BRAKE Laymor Sweepmaster300 Sweeper

Your Price: $822.70

Click For Price and Specs

10347096 (100086) CYLINDER MASTER Laymor Sweepmaster300 Sweeper

Your Price: $641.50

Click For Price and Specs

10347267 (015131) PIN COTTER Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

10347602 (031401) FITTING GREASE STRAIGHT 1/4"-28NF Laymor Sweepmaster300 Sweeper

Your Price: $5.07

Click For Price and Specs

10347622 (031930) CLEVIS ROD END 0.37"-24NF Laymor Sweepmaster300 Sweeper

Your Price: $21.05

Click For Price and Specs

10349364 (441600) CAPSCREW 5/16"-18NC X 1" PL Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

10560331 (011322) WASHER FLAT 5/16" Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

V23504500 NUT Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs
