Laymor SweepMaster 300 Brake Line Assembly

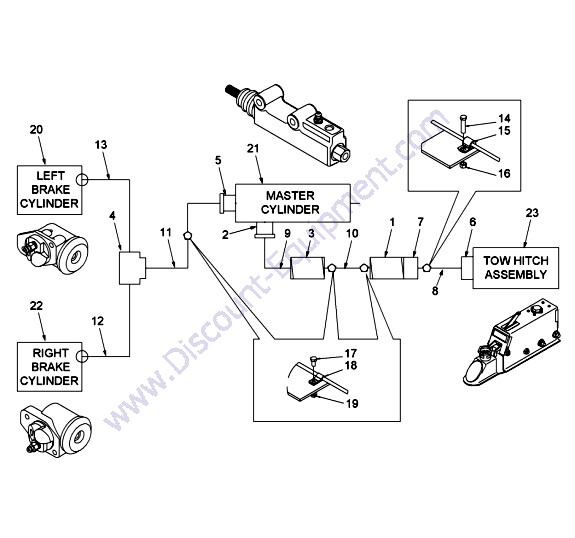

  • Refer to the REF # on the Image for the REF # to the Part Information below
  • Please see Pages 9-10 in the Parts Manual for more Information
  • Click the red arrows to navigate to the next area of the machine





10349587

REF #1 - 10349587 (448845) UNION TUBE INVERTED FLARE Laymor Sweepmaster300 Sweeper

Your Price: $6.65

Click For Price and Specs

252148

REF #11 - 100156 (252148) BRAKE LINE Laymor Sweepmaster300 Sweeper

Your Price: $14.62

Click For Price and Specs

083493

REF #16 - 083493 NUT HEX FLANGE 5/16"-18 ZN Laymor Sweepmaster300 Sweeper

Your Price: $1.43

Click For Price and Specs

409110

REF #20 - 409110 CYLINDER BRAKE LEFT HAND Laymor Sweepmaster300 Sweeper

Your Price: $109.28

Click For Price and Specs

409128

REF #22 - 409128 CYLINDER BRAKE RIGHT HAND Laymor Sweepmaster300 Sweeper

Your Price: $109.18

Click For Price and Specs

044495

REF #6 - 044495 CONNECTOR 3/16"MIF-1/4"FIF Laymor Sweepmaster300 Sweeper

Your Price: $18.85

Click For Price and Specs

054171

REF #2 - 054171 ADAPTER STRAIGHT 3/16" TUBE X 1/8" NPT Laymor Sweepmaster300 Sweeper

Your Price: $6.65

Click For Price and Specs

067561

REF #3 - 067561 FITTING UNION TUBE Laymor Sweepmaster300 Sweeper

Your Price: $6.65

Click For Price and Specs

434944

REF #4 - 434944 ADAPTER TEE FEMALE Laymor Sweepmaster300 Sweeper

Your Price: $22.19

Click For Price and Specs

060533

REF #5 - 060533 FITTING Laymor Sweepmaster300 Sweeper

Your Price: $14.62

Click For Price and Specs

077495

REF #7 - 077495 CONNECTOR STRAIGHT 1/4" TO 3/16" Laymor Sweepmaster300 Sweeper

Your Price: $17.72

Click For Price and Specs

377382

REF #8 - 377382 HOSE 04-04MF04MF X 47.00" 100R1 Laymor Sweepmaster300 Sweeper

Your Price: $110.27

Click For Price and Specs

377150

REF #9 - 377150 TUBE .18 STEEL BRAKE X 60.00" Laymor Sweepmaster300 Sweeper

Your Price: $25.49

Click For Price and Specs

067728

REF #10 - 067728 TUBE 3/16" STEEL BRAKE X 51" Laymor Sweepmaster300 Sweeper

Your Price: $17.72

Click For Price and Specs

377168

REF #12 - 377168 TUBE .18 STEEL BRAKE R.H. X 40.00" Laymor Sweepmaster300 Sweeper

Your Price: $23.94

Click For Price and Specs

377176

REF #13 - 377176 TUBE .18 STEEL BRAKE L.H. X 40.00" Laymor Sweepmaster300 Sweeper

Your Price: $23.94

Click For Price and Specs

441618

REF #14 - 441618 CAPSCREW 5/16"-18NC X 1-1/4" FLANGE Laymor Sweepmaster300 Sweeper

Your Price: $5.52

Click For Price and Specs

028993

REF #15 - 028993 CLAMP LOOP 1/2" ID Laymor Sweepmaster300 Sweeper

Your Price: $9.29

Click For Price and Specs

441501

REF #17 - 441501 BOLT .25-20 FLANGE X .50 Laymor Sweepmaster300 Sweeper

Your Price: $1.43

Click For Price and Specs

036715

REF #18 - 036715 CLAMP 1/4" DIA Laymor Sweepmaster300 Sweeper

Your Price: $5.52

Click For Price and Specs

440636

REF #19 - 440636 LOCKNUT 1/4"-20NC FLANGE WHIZLOCK Laymor Sweepmaster300 Sweeper

Your Price: $4.63

Click For Price and Specs

100086

REF #21 - 100086 MASTER CYLINDER Laymor Sweepmaster300 Sweeper

Your Price: $641.50

Click For Price and Specs

374728

REF #23 - 374728 TOW HITCH ASSEMBLY Laymor Sweepmaster300 Sweeper

Your Price: $578.98

Click For Price and Specs
