Generac Magnum MTP6DZD Fuel Tank - Trailer Assembly - 2

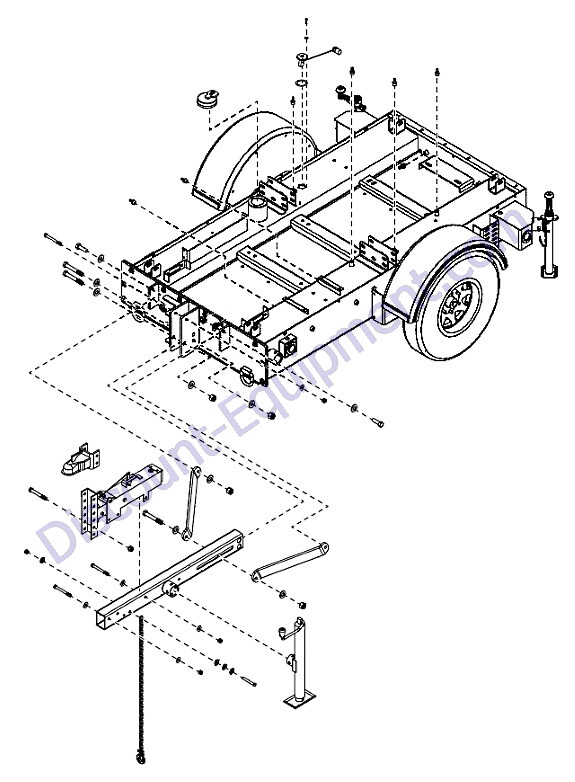

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





13051

13051 Assembly 2000 lb top wind jack tube mount Generac Magnum MTP6DZD Trash Pump

Your Price: $81.88

Click For Price and Specs

19518

19518 Coupler 2.0 ball Generac Magnum MTP6DZD Trash Pump

Your Price: $129.13

Click For Price and Specs

20571

20571 Sender fuel 10-15 in. Tank Generac Magnum MTP6DZD Trash Pump

Your Price: $87.13

Click For Price and Specs

22323

22323 Gasket fuel sending unit Generac Magnum MTP6DZD Trash Pump

Your Price: $22.93

Click For Price and Specs

23367

23367 Chain safety 7,800 lbs rated Generac Magnum MTP6DZD Trash Pump

Your Price: $28.78

Click For Price and Specs

23816

23816 Fitting strt .500MNPT x .375 barb brass Generac Magnum MTP6DZD Trash Pump

Your Price: $8.79

Click For Price and Specs

31524B

31524B Support tongue Generac Magnum MTP6DZD Trash Pump

Click For Price and Specs

40529

40529 Actuator hydraulic surge brake Generac Magnum MTP6DZD Trash Pump

Your Price: $489.99

Click For Price and Specs

40728

40728 Fitting strt .500MNPT x .500 barb brass Generac Magnum MTP6DZD Trash Pump

Your Price: $8.97

Click For Price and Specs

53157

53157 Screw .750-10 x 5.0 hex G8 Generac Magnum MTP6DZD Trash Pump

Your Price: $10.77

Click For Price and Specs

53545B

53545B Weldment tongue Generac Magnum MTP6DZD Trash Pump

Your Price: $359.99

Click For Price and Specs

55104

55104 (23707) Cap Fuel Generac Magnum MTP6DZD Trash Pump

Your Price: $136.48

Click For Price and Specs

60156

60156 Screw M5-0.80 x 16 pan phil G4.8 Generac Magnum MTP6DZD Trash Pump

Your Price: $1.29

Click For Price and Specs

60239

60239 Screw .625-11 x 5.0 std hex G5 Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

60240

60240 Nut .625-11 nylock G5 Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

60252

60252 Washer #10 split lock Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

60376

60376 Screw .500-13 x 4.50 hex G5 Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

60416

60416 Washer .500 flat 1.375/.090 SS Generac Magnum MTP6DZD Trash Pump

Your Price: $13.47

Click For Price and Specs

60502

60502 Fitting strt .500MNPT x .625 barb brass Generac Magnum MTP6DZD Trash Pump

Your Price: $9.69

Click For Price and Specs

60527

60527 Washer .750 flat 1.50/.125 Generac Magnum MTP6DZD Trash Pump

Your Price: $1.59

Click For Price and Specs

60584

60584 Nut .750-10 nylock G5 Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

60846

60846 Screw .750-10 x 2.50 hex G5 Generac Magnum MTP6DZD Trash Pump

Your Price: $2.07

Click For Price and Specs

60999

60999 Fitting strt .500MNPT x .312 barb brass Generac Magnum MTP6DZD Trash Pump

Your Price: $13.78

Click For Price and Specs

61099

61099 Screw .500-15 x 5.0 hex G8 Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

62221

62221 Nut .500-13 nylock G5 Generac Magnum MTP6DZD Trash Pump

Your Price: $3.29

Click For Price and Specs

G022304

G022304 (60309) Washer Flat 1/2 Zinc Generac Magnum MTP6DZD Trash Pump

Your Price: $10.23

Click For Price and Specs
