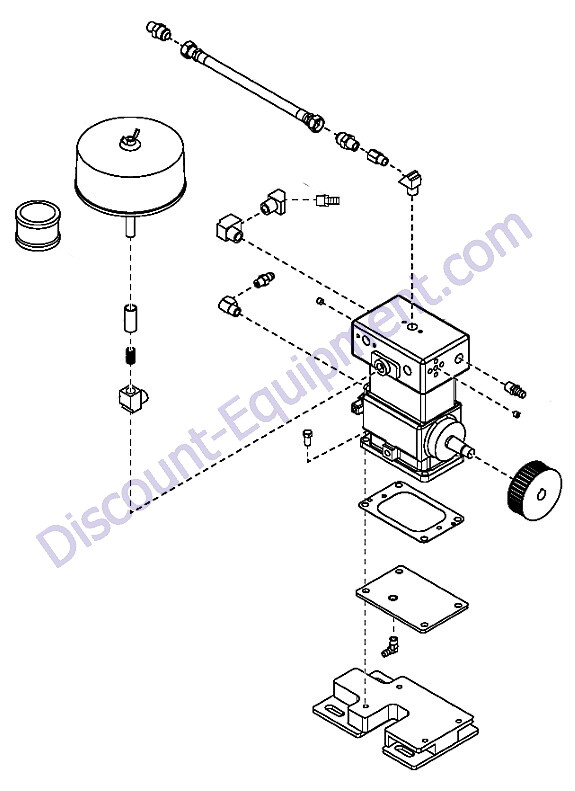

Generac Magnum MTP4DZV Pump Air Compressor Assembly

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





20645

20645 Fitting 90 Degrees .250NPT x .375 barb brass Generac Magnum MTP4DZV Trash Pump

Your Price: $6.63

Click For Price and Specs

21437

21437 Fitting strt .500NPT coupler x 1.50 Generac Magnum MTP4DZV Trash Pump

Your Price: $2.31

Click For Price and Specs

30497

30497 Pulley driven 40 tooth Generac Magnum MTP4DZV Trash Pump

Your Price: $234.99

Click For Price and Specs

31445B

31445B Weldment compressor mount Generac Magnum MTP4DZV Trash Pump

Your Price: $274.99

Click For Price and Specs

31630

31630 Air cleaner .500NPT Generac Magnum MTP4DZV Trash Pump

Your Price: $69.58

Click For Price and Specs

31631

31631 Element air cleaner Generac Magnum MTP4DZV Trash Pump

Your Price: $25.54

Click For Price and Specs

31657

31657 Valve check Generac Magnum MTP4DZV Trash Pump

Your Price: $139.63

Click For Price and Specs

31658

31658 Assembly hose .750 braided x 15.50 in. Generac Magnum MTP4DZV Trash Pump

Your Price: $124.62

Click For Price and Specs

32703B

32703B Bracket compressor base Generac Magnum MTP4DZV Trash Pump

Your Price: $22.48

Click For Price and Specs

49267

49267 Compressor air Bendix Generac Magnum MTP4DZV Trash Pump

Your Price: $1,149.00

Click For Price and Specs

49421

49421 Gasket compressor base Generac Magnum MTP4DZV Trash Pump

Your Price: $8.07

Click For Price and Specs

60438

60438 Fitting pipe nipple .500NPT x close Generac Magnum MTP4DZV Trash Pump

Your Price: $3.29

Click For Price and Specs

60502

60502 Fitting strt .500MNPT x .625 barb brass Generac Magnum MTP4DZV Trash Pump

Your Price: $9.69

Click For Price and Specs

60734

60734 Fitting 90 Degrees .125MNPT x .125FNPT brass Generac Magnum MTP4DZV Trash Pump

Your Price: $2.49

Click For Price and Specs

60998

60998 Fitting 90 Degrees .500MNPT x .500FNPT brass Generac Magnum MTP4DZV Trash Pump

Your Price: $20.74

Click For Price and Specs

61040

61040 Fitting 45 Degrees .500MNPT x .500FNPT brass Generac Magnum MTP4DZV Trash Pump

Your Price: $9.69

Click For Price and Specs

61073

61073 Fitting strt .125MNPT x .250MJIC brass Generac Magnum MTP4DZV Trash Pump

Your Price: $2.13

Click For Price and Specs

63115

63115 Fitting plug .125NPT x flush mount Generac Magnum MTP4DZV Trash Pump

Your Price: $1.59

Click For Price and Specs

63181

63181 Fitting strt .500MNPT x .750, 37 Degrees JIC Generac Magnum MTP4DZV Trash Pump

Your Price: $14.19

Click For Price and Specs

63283

63283 Screw .438-14 x 1.50 std hex G5 Generac Magnum MTP4DZV Trash Pump

Your Price: $1.59

Click For Price and Specs
