Bomag BPR25/40 Base Plate - 2
32 products

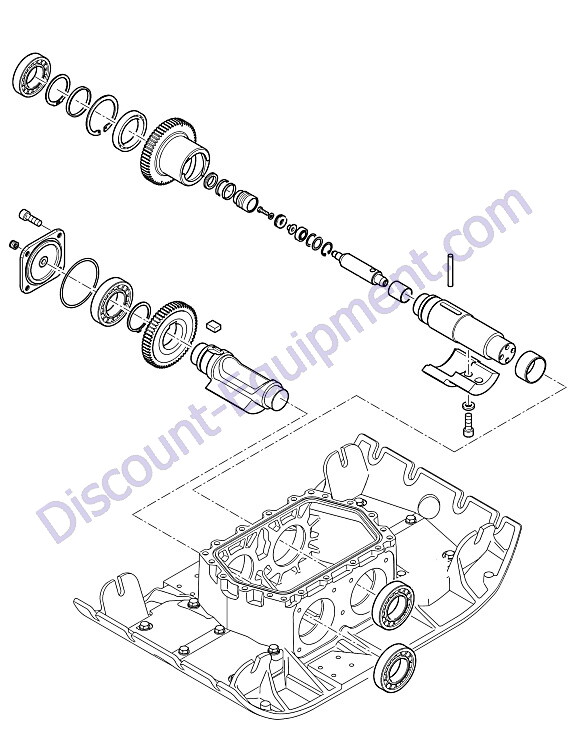

- Hover over the part on the breakdown below and click to see details
- Click the red arrows to navigate to the next area of the machine
- All parts shown are listed below the photo
- Clicking on the part will take you to the part
Bomag
69020802 Pin cylindric Bomag BPR25-40 Reversible Plate Compactor
PN: 69020802
Bomag
09221130 Circlip Internal Bomag BPR25-40 Reversible Plate Compactor
PN: 09221130
Bomag
05520510 Shim Bomag BPR25-40 Reversible Plate Compactor
PN: 05520510
Bomag
08602603 Spring washer Bomag BPR25-40 Reversible Plate Compactor
PN: 08602603
Bomag
06245051 Piston seal Bomag BPR25-40 Reversible Plate Compactor
PN: 06245051
Bomag
06245052 Guiding band Bomag BPR25-40 Reversible Plate Compactor
PN: 06245052
Bomag
69020727 Piston Bomag BPR25-40 Reversible Plate Compactor
PN: 69020727
Bomag
08510511 Washer Bomag BPR25-40 Reversible Plate Compactor
PN: 08510511
Bomag
07140532 Hexagon bolt Bomag BPR25-40 Reversible Plate Compactor
PN: 07140532
Bomag
05151010 Axial ball bearing Bomag BPR25-40 Reversible Plate Compactor
PN: 05151010
Bomag
68110170 Bushing Bomag BPR25-40 Reversible Plate Compactor
PN: 68110170
Bomag
05113700 Ball bearing grooved Bomag BPR25-40 Reversible Plate Compactor
PN: 05113700
Bomag
09213000 Circlip External Bomag BPR25-40 Reversible Plate Compactor
PN: 09213000
Bomag
09223700 Circlip Internal Bomag BPR25-40 Reversible Plate Compactor
PN: 09223700
Bomag
69020707 Control shaft Bomag BPR25-40 Reversible Plate Compactor
PN: 69020707
Bomag
07611010 Screw plug Bomag BPR25-40 Reversible Plate Compactor
PN: 07611010
Bomag
69020747 Bushing Bomag BPR25-40 Reversible Plate Compactor
PN: 69020747
Bomag
05114030 Ball bearing grooved Bomag BPR25-40 Reversible Plate Compactor
PN: 05114030
Bomag
69020672 Gear wheel Bomag BPR25-40 Reversible Plate Compactor
PN: 69020672
Bomag
69210174 Washer Bomag BPR25-40 Reversible Plate Compactor
PN: 69210174
Bomag
07231211 Socket-head cap screw Bomag BPR25-40 Reversible Plate Compactor
PN: 07231211
Bomag
69020708 Eccentric weight Bomag BPR25-40 Reversible Plate Compactor
PN: 69020708
Bomag
05428122 Inner ring Bomag BPR25-40 Reversible Plate Compactor
PN: 05428122
Bomag
06283104 Bushing Bomag BPR25-40 Reversible Plate Compactor
PN: 06283104
Bomag
69020748 Exciter shaft Bomag BPR25-40 Reversible Plate Compactor
PN: 69020748
Bomag
06220803 Loop ring Bomag BPR25-40 Reversible Plate Compactor
PN: 06220803
Bomag
07230806 Socket-head cap screw Bomag BPR25-40 Reversible Plate Compactor
PN: 07230806
Bomag
69020384 Cover Bomag BPR25-40 Reversible Plate Compactor
PN: 69020384
Bomag
05222264 Cylinder roller bearing Bomag BPR25-40 Reversible Plate Compactor
PN: 05222264
Bomag
09182820 Fitting key Bomag BPR25-40 Reversible Plate Compactor
PN: 09182820
Bomag
69020753 Gear wheel Bomag BPR25-40 Reversible Plate Compactor
PN: 69020753
Bomag
69020696 Exciter shaft Bomag BPR25-40 Reversible Plate Compactor
PN: 69020696
