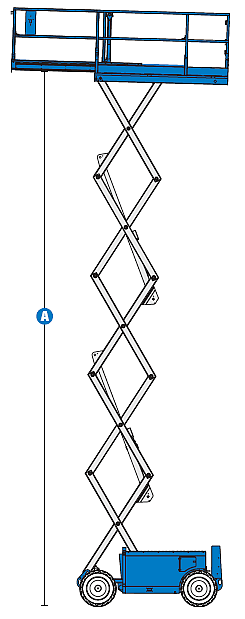

Genie GS-3268RT 4x4 Gas & LPG 32' Scissor Lift **NO LONGER AVAILABLE** Overview Description Specs Safety Brochures/Manuals Specs (Specifications may change due to continuous product development) Genie GS-3268 RT Self-Propelled Scissor Lift Specifications Model GS-3268RT Measurements US Metric Working Height Maximum* 38 ft 11.75 m (A) Platform Height Maximum 32 ft 9.75 m (B) Platform Height - Stowed 4 ft. 3.75 in 1.31 m (C) Platform Height - Outside                                   Extended 8 ft. 3 in. 13 ft. 0 in. 2.51 m 3.96 m Side-Out Platform Extension Deck 5 ft. 1.52 m (D) Platform Width - Outside 5 ft. 1 in. 1.55 m Toeboard Height 6 in. 0.15 m (E) Height - Stowed**                                   Rails Lowered 8 ft. 5 in. 6 ft. 0 in. 2.45 m 1.83 m (F) Length - Stowed                                   Platform Extended                                   With Outriggers 8 ft. 9 in. 13 ft. 9 in. 11 ft. 3 in. 2.67 m 4.19 m 3.38 m (G) Width 5 ft. 8 in. 1.73 m (H) Wheelbase 6 ft. 1 in. 1.85 m (I) Ground Clearance - Center 8 in. 0.20 m Productivity Maximum Platform Occupancy*** 4 Lift Capacity 1,000 lbs. 454 kg Extension Deck Capacity 300 lbs. 136 kg Drive Speed - Stowed Drive Speed - Raised 3.8 mph 0.5 mph 6.1 km/h 0.8 km/h Gradeability - Stowed**** 30% Maximum Outrigger Leveling:                                   Front to Back                                   Side to Side 6.6° 10.6° Turning Radius - Outside 12 ft. 1 in. 3.68 m Turning Radius - Inside 5 ft. 0 in. 1.52 m Raise/Lower Speed 40/37 sec. Controls Proportional Drive 4-Wheel Tires - Rough Terrain 12 x 23.5 in. 30 x 60 cm Power Power source Kubota DF-752 Gas/LPG 22 HP Kubota D-1105 Diesel 24.9 HP Perkins 403D-11 Diesel 26 HP Fuel Tank Capacity 15 Gal. 56.8 l Hydraulic System Capacity 0.5 mph16.5 Gal. 62.5 l Weight***** Standard 8,084 lbs. 3,667 kg With Outriggers 9,072 lbs. 4,115 kg *      The metric equivalent of working height adds 2 m to platform height. U.S. adds 6 ft to platform height. **     Based on RT tires; deduct 2 in (5.8 cm) for turf and non-marking tires. ***   CE/AUS markets: GS-3268 limited to 2 person platform occupancy when used outdoors. **** Gradeability applies to driving on slopes. Gradeability may vary depending on the weight of options installed on machine. See operator’s manual for details regarding slope ratings. ***** Weight varies depending on options and country standards.

---
